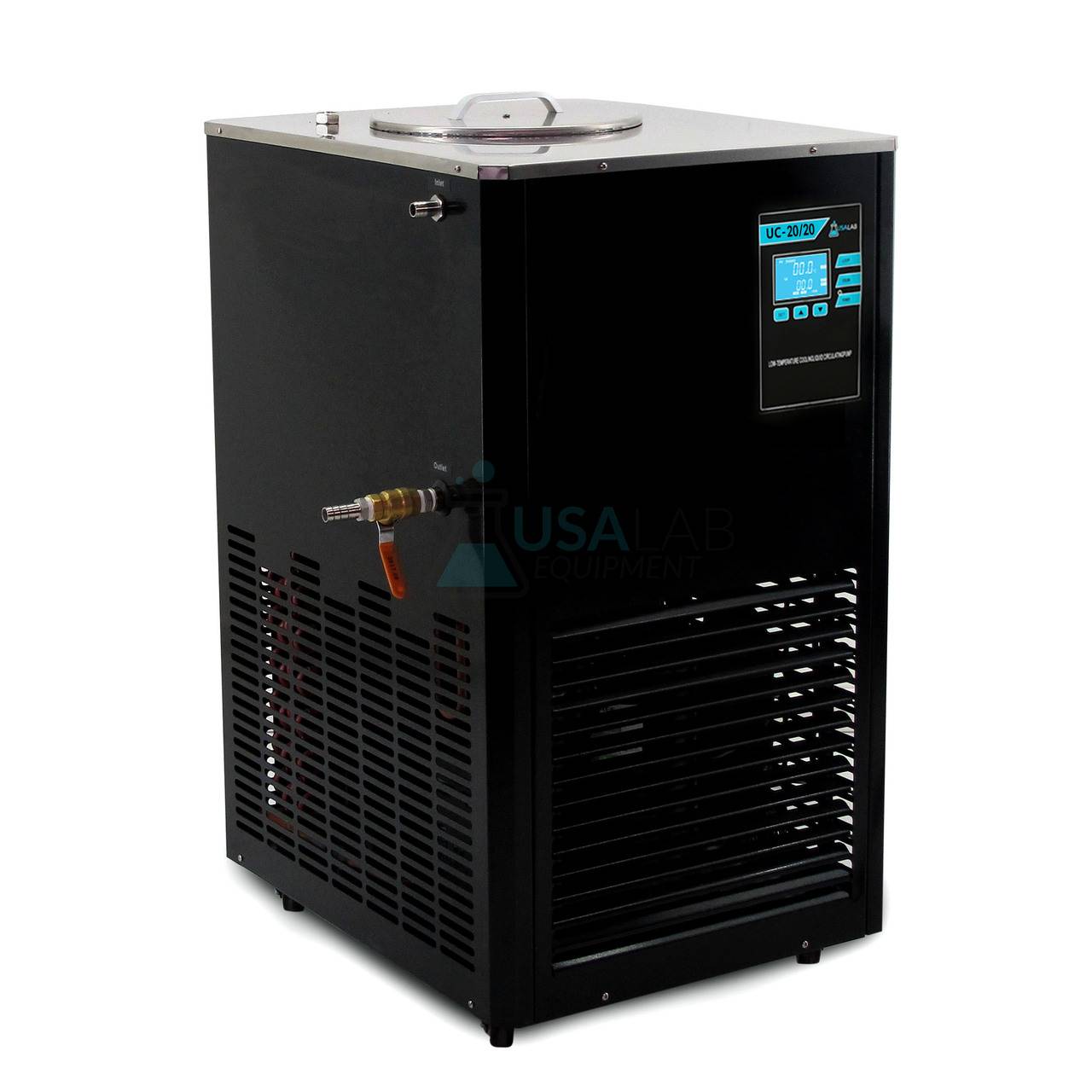

USA Lab -20°C 20L Recirculating Chiller UC-20/20 30L/Min

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Model: UC-20/20
Brand: USA Lab
Power Requirements: 220-240V 50-60Hz 20A 1800W Single Phase

$5,998.80

SKU: UC-2020 Category: Brand:

 The USA Lab UC-20/20 is a powerful -20°C Chiller with a 20L Reservoir. This chiller is a true lab chiller than is ideal for applications involving vacuum systems, jacketed reactors, rotary evaporators, columns, solvent tanks, and even analytical instruments.

The USA Lab UC-20/20 chiller offers unbeatable performanceease of use and high reliability. These units keep quiet despite having a powerful pump allowing for constant flow rates to match the needs of demanding applications.


UC-20/20 Specifications

Model

UC-2020

Reservoir Capacity

20L

Reservoir Dimensions

11.8″ x 11.8″

Temperature Range

Room Temperature to -20°C / -4°F

Power Requirements

220-240V 60Hz 20A 1800W Single Phase

Refrigerating BTUs

3,000BTU – 10,500BTU

Circulating Pump Wattage

100W

Temperature Accuracy

+/- 0.5°C

Pump Flow

30L/Min

Pump Pressure (lift/height)

2.2bar (4m/12ft)

Barb Size

5/8″

Refrigerant

R404

Dimensions

24.8″ x 20.4″ x 43.3″

Weight

154lbs


UC-20/20 Packing List

USA Lab UC-30/30 Chiller

1 PC

5/8″ Insulated Tubing

11ft

5/8″ barbed Valve

1 PC

PTFE Sealing Tape

1 PC


-20°C Temperatures are tested under empty load.
