USA Lab 200°C 30L Recirculating Heater RH-30L 18.3L/Min

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Model: RH-30L
Brand: USA Lab
Power Requirements: 220-240V 50-60Hz 30A Single Phase

$2,998.80

SKU: RH30L Category: Brand:

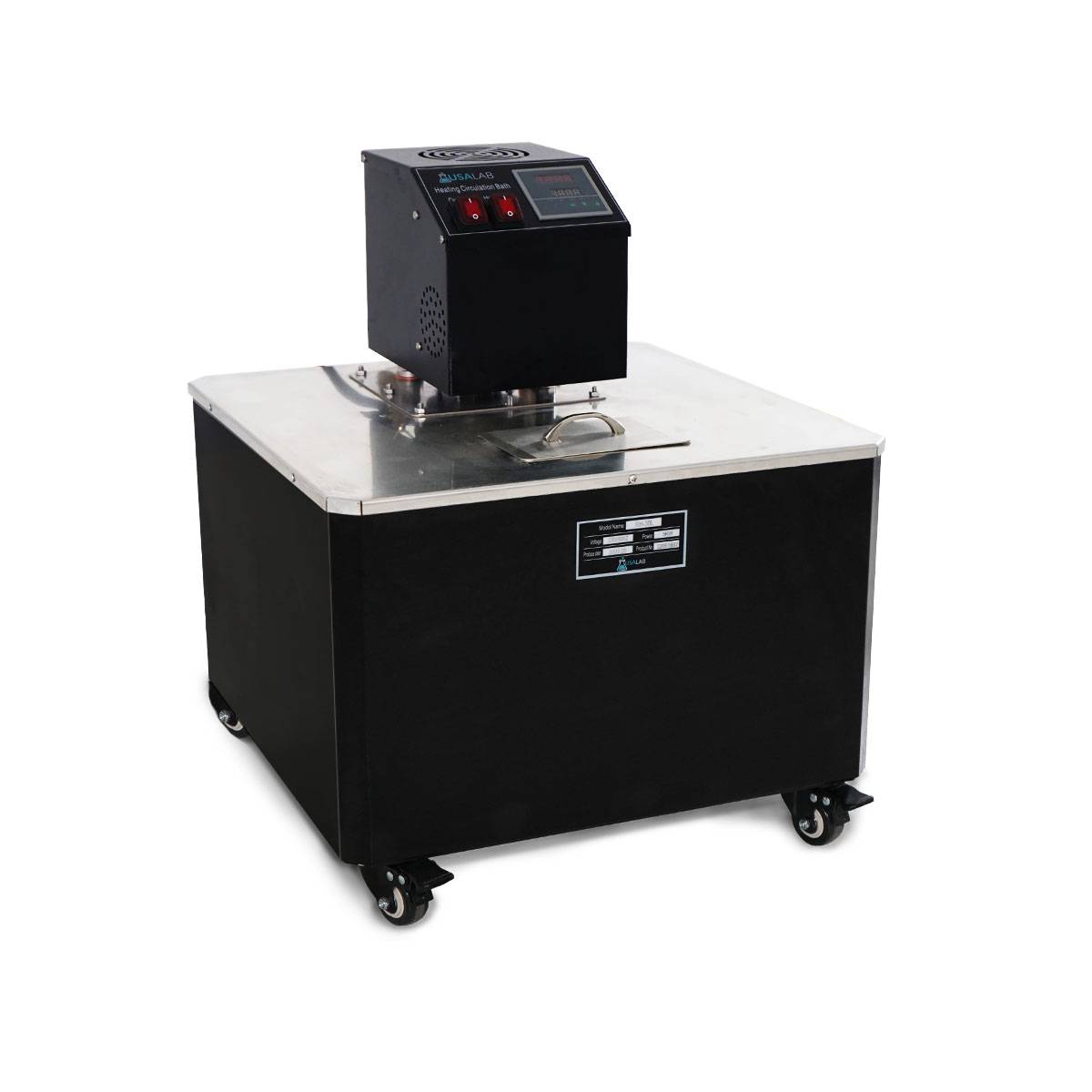

The USA Lab RH-30L Recirculating Water Heater is built for high flow rates at temperatures of up to 200°C. Upgrade any rh heating system with a high temperature heater at an affordable price!

SILICONE OIL ONLY


RH-30L Specifications

Reservoir Capacity

30L

Reservoir Dimensions

19″ x 19″ x 12″

Temperature Range

70°C to 200°C

Power Requirements

220-240V 50-60Hz 30A
Single Phase 6-30P Plug

Heating Wattage

5000W / 22.7A

Temperature Accuracy

+/- 0.2°C

Pump Flow w/ Water
(Oil Flow Rate May Vary)

18.3L/Min

Total Pump Lift

6m

Connection Size

1/2″ MNPT

Dimensions

19″ x 19″ x 24″

Weight

68lbs






RH-30L Packing List

Item

Quantity

USA Lab RH-30L 200°C Heater

1

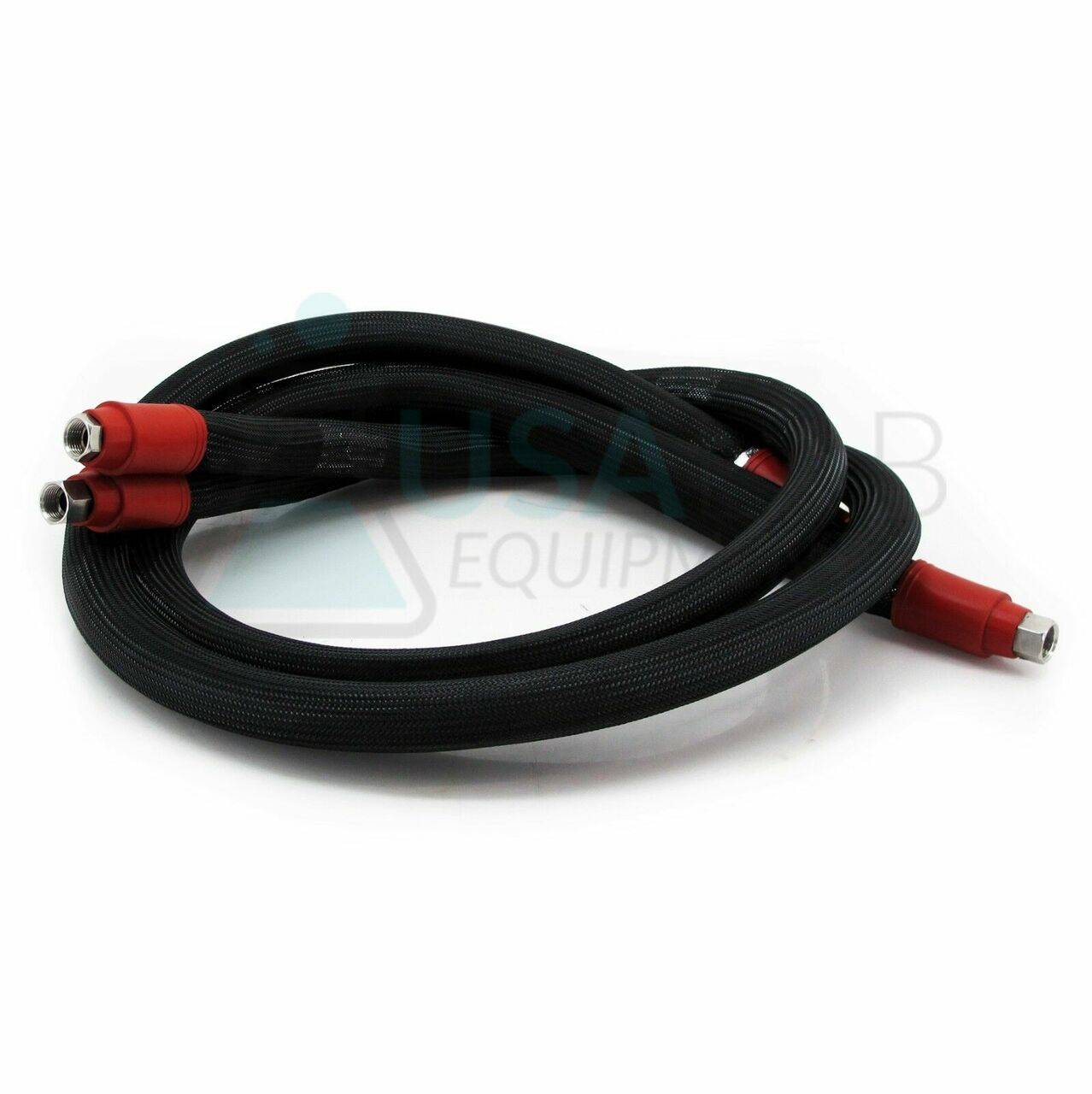

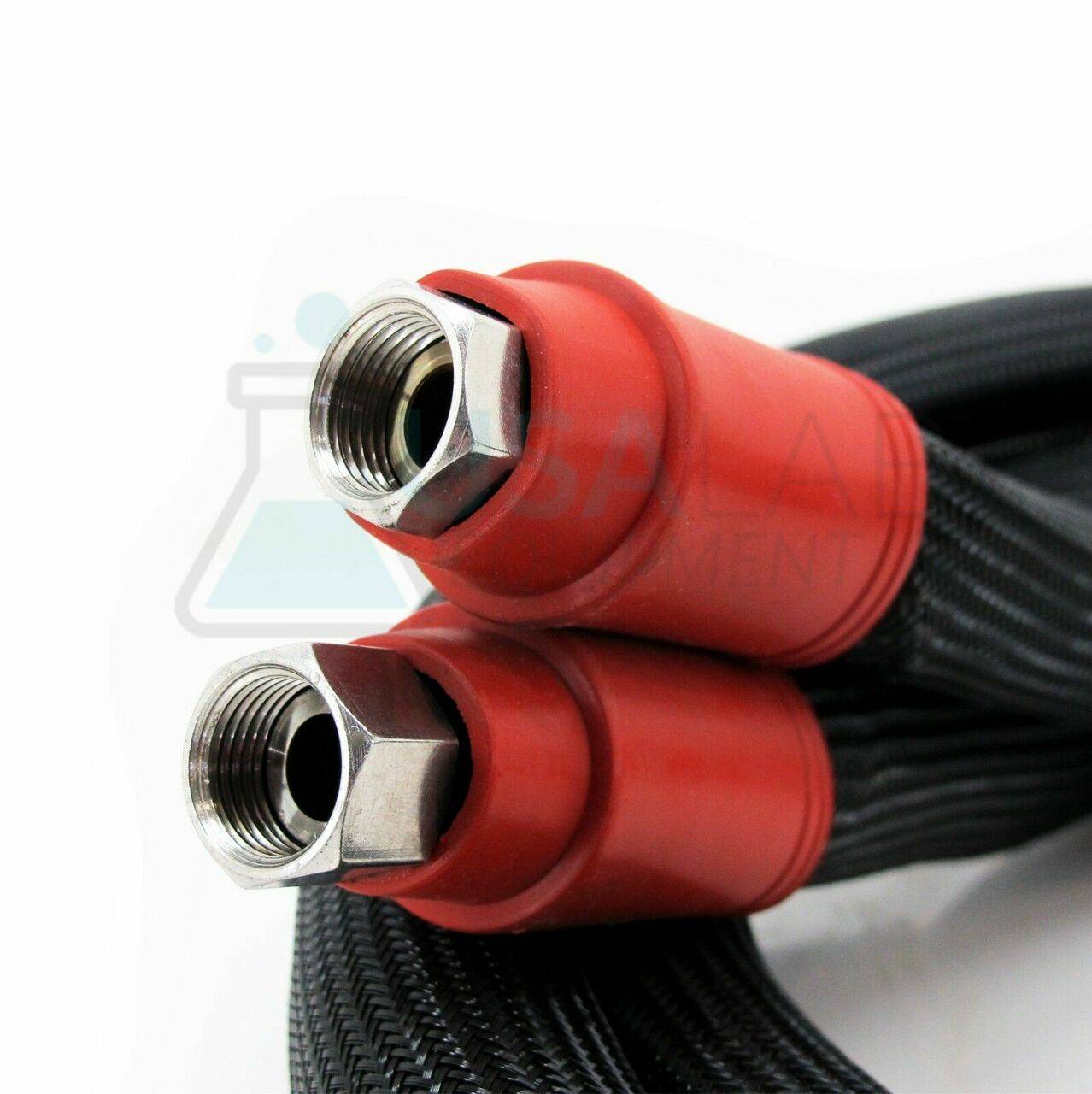

1/2″ FNPT Insulated Tubing – 6ft

2

1/2″ FNPT to 1/2″ Barb

2

32A Fuse

1

Pre-installed 6-30P Plug

1



For Technical Support, Questions, or Other Issues Please Email or Call Us!
