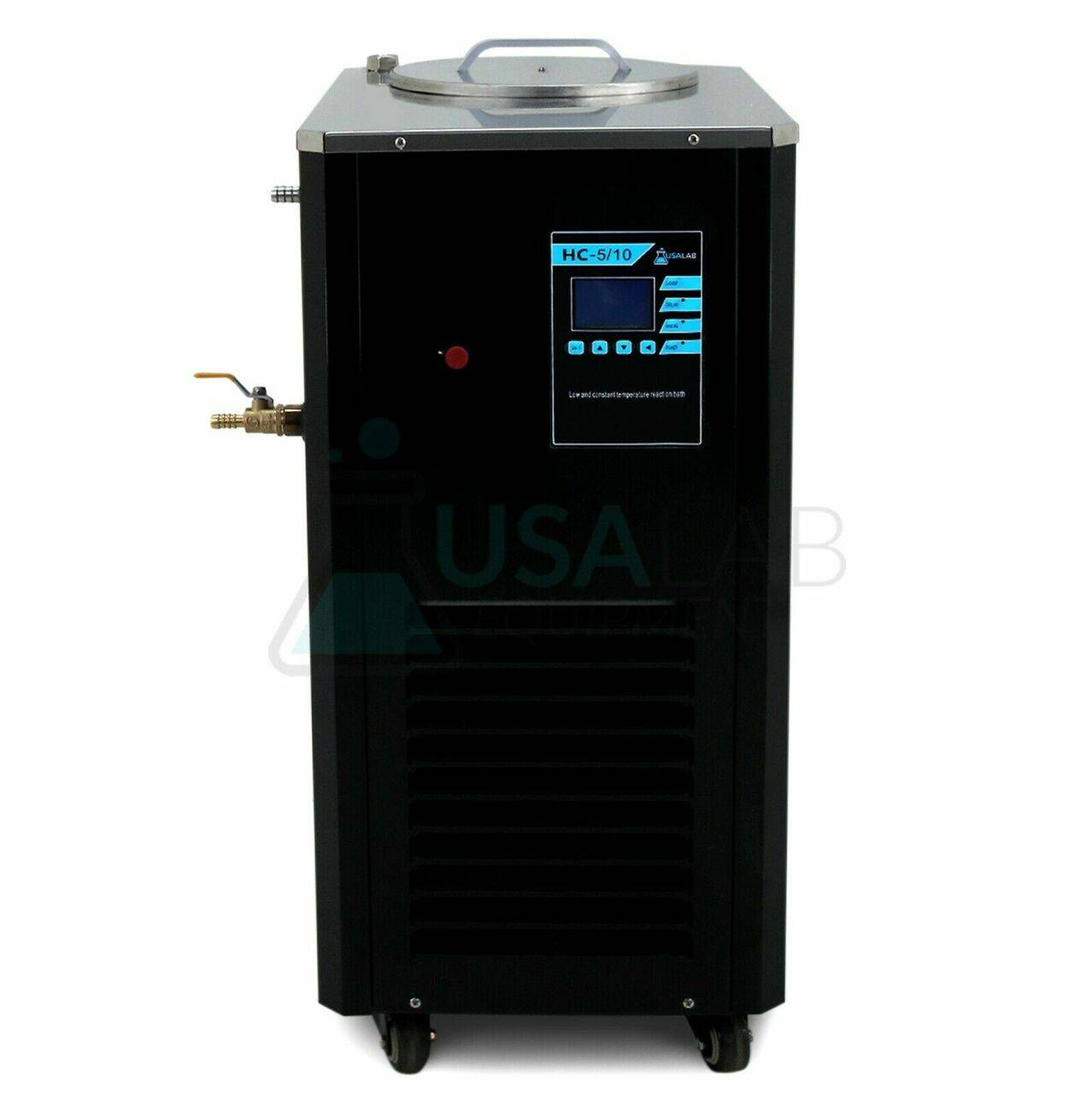

USA Lab 110V 5L -10°C to 99°C Magnetic Recirculating Heater Chiller HC-5/10

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Model: HC-5/10
Reservoir Capacity: 5L
Brand: USA Lab
Power Requirements: 110-120V 50-60Hz 30A Single Phase
Cooling Range: -10°C to 38.5°C
Heating Range: -10°C to 99°C

$1,749.95

SKU: HC510 Category: Brand:

[ You must have an NEMA L5-30 outlet installed. This device does not use a standard plug ]


Need a recirculating heater chiller that is ultra quiet yet pumps efficiently? Look no further! Our all new HC-5/10 Heater Chiller is built for high flow rates and low/high temperatures. With a low temperature of -10°C and a high temperature of 99°C, this 110v heater magnetic chiller is a work horse that pumps 30L per minute!

These work great for our Rotary Evaporators & Short Path Systems!


HC510 Specifications

Model

HC-5/10

Reservoir Capacity

5L

Reservoir Dimensions:

8″ x 8″

Cooling Range

10°C to 38.5°C

Heating Range

10°C to 99°C

Power Requirements

110-120V 50-60Hz 30A Single Phase

Plug

 5-30P plug, cannot be modified

Refrigerating BTUs

4,500BTU – 1,000BTU

Heating Element Wattage

1000W

Circulating Pump Wattage

100W

Temperature Accuracy

0.5°C

Pump Flow

30L/Min

Pump Pressure

2.2bar  Lift/height: 4m/12ft

Barb Size

1/2″

Refrigerant

R-404A

Dimensions

19″ x 14″ x 29″

Weight

100lbs

 Ul Approved 3-phase Power Plug Nema 5-30p Power Cord Usa - Buy Nema Twist-lock Plug And Socket,Nema 17 Stepper Motor,Electric Male And Female Connectors Product on Alibaba.com

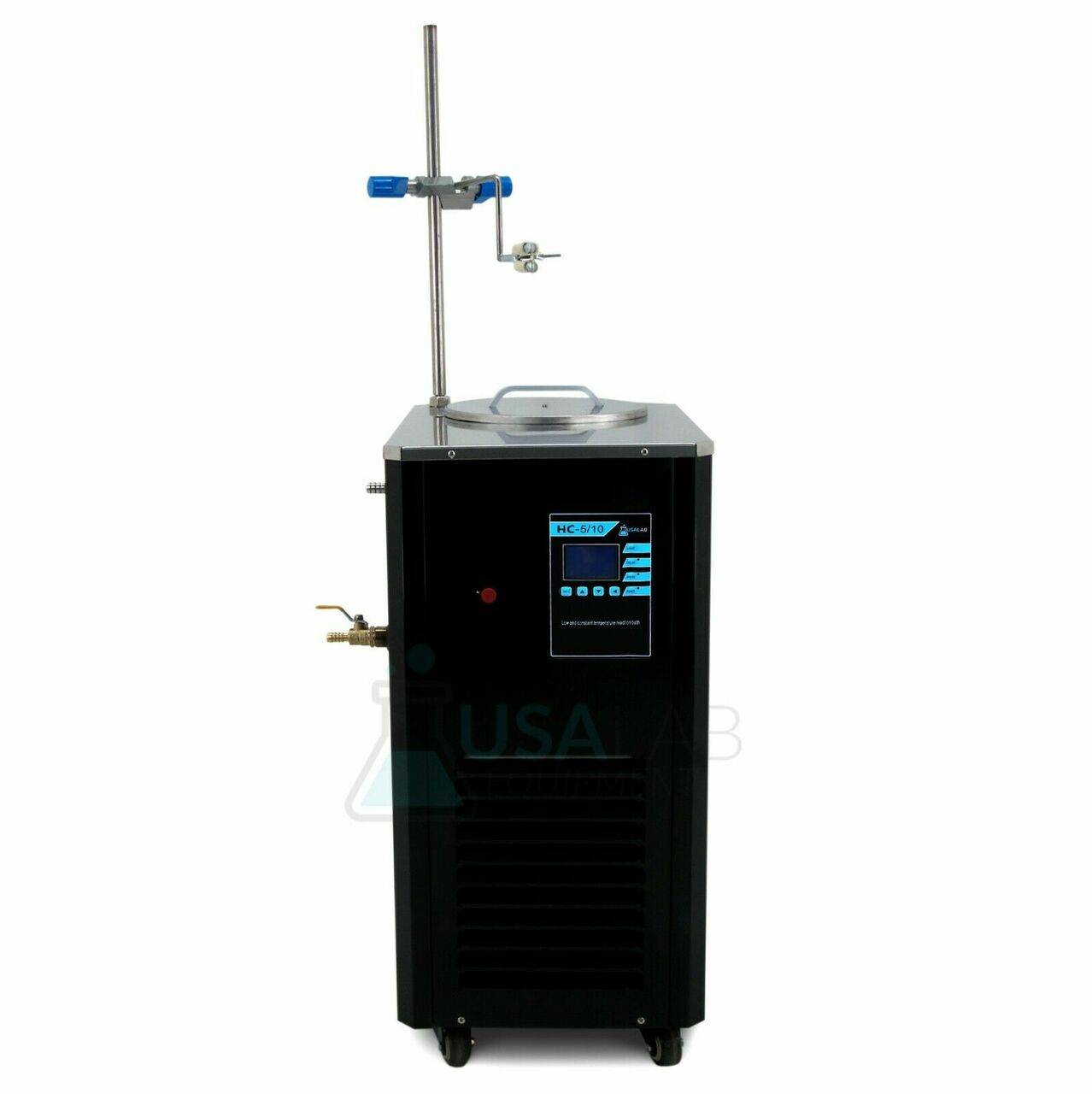

HC510 Packing List

USA Lab HC-5/10 Heater Chiller

1PC

19″ Metal Rod Stand

1PC

Boss Clamp

1PC

Bent 4 Prong Clamp

1PC

1/2″ Insulated Tubing

10ft

1/2″ Barbed Valve

1PC

PTFE Sealing Tape

1PC



For Technical Support, Questions, or Other Issues Please Email or Call Us!
