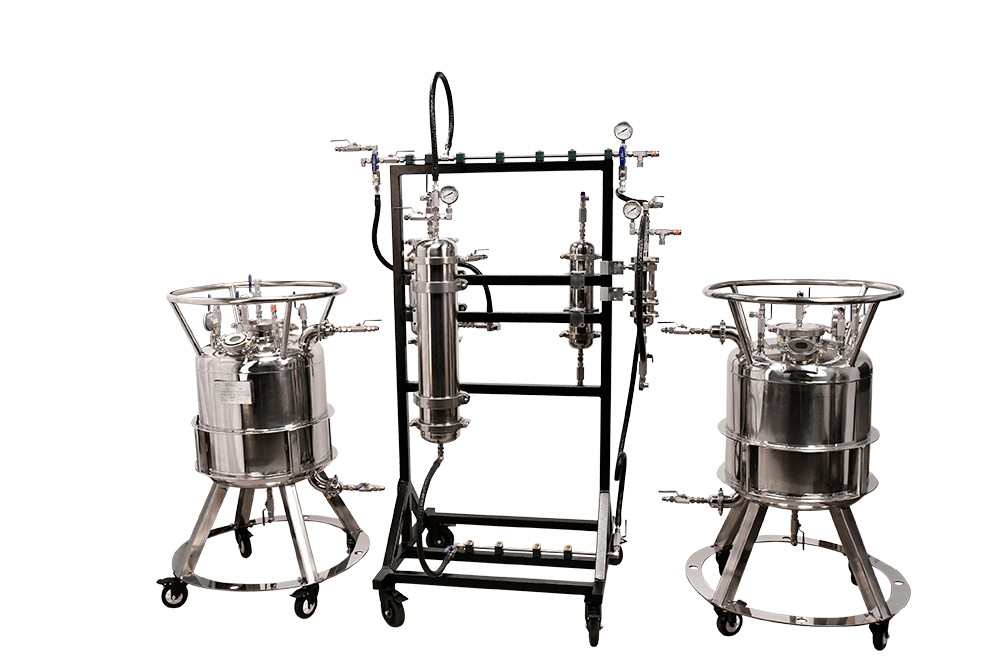

Titan 5 – Premium Hydrocarbon Extraction Closed Loop System – Engineer Certified

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Call for Price

SKU: N/A Category: Brand:

The Titan Series represents the new standard in closed-loop technology. Its streamlined design, focused on workflow and ease of use, allows for quicker, more efficient runs. Featuring an IRC, newly redesigned solvent tanks, and complete with compression fittings, this is one line of products you won’t want to miss!


Features:

  • Compression fittings (no more taping threads!)

  • Convenient “injection and “drain” manifolds.

    • Injection

      • Solvent feed port, nitro/vac port, hot loop connection, material feed ports, and material column bypass.

    • Drain

      • Material column drain ports and out to IRC.

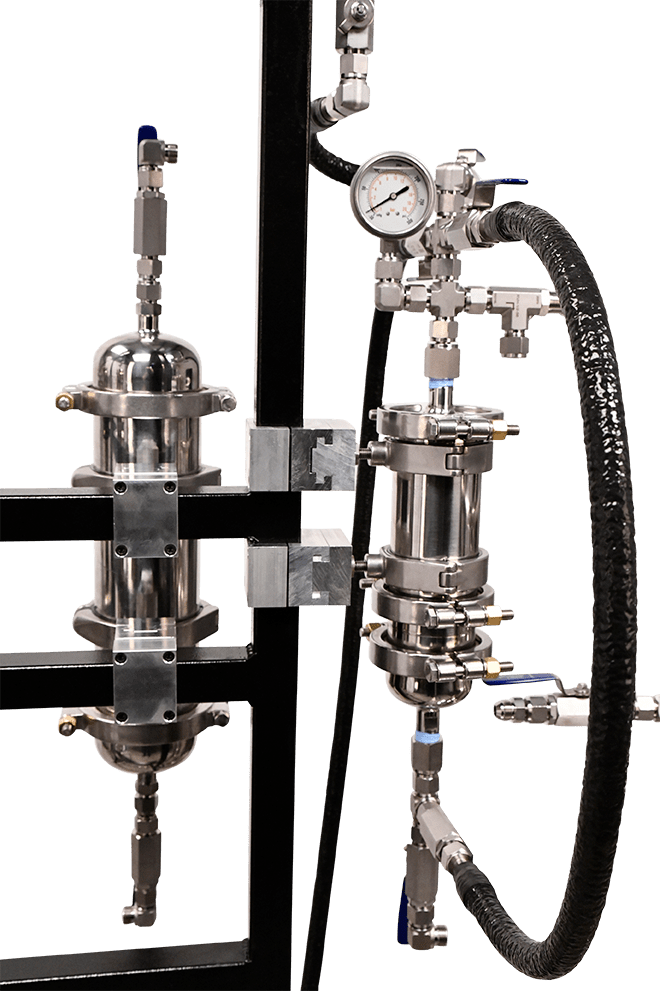

  • Inline Remediation Column (IRC)

    • Material column bypass (from injection manifold), feed port (from drain manifold), bypass, pressure gauge, and PRV.

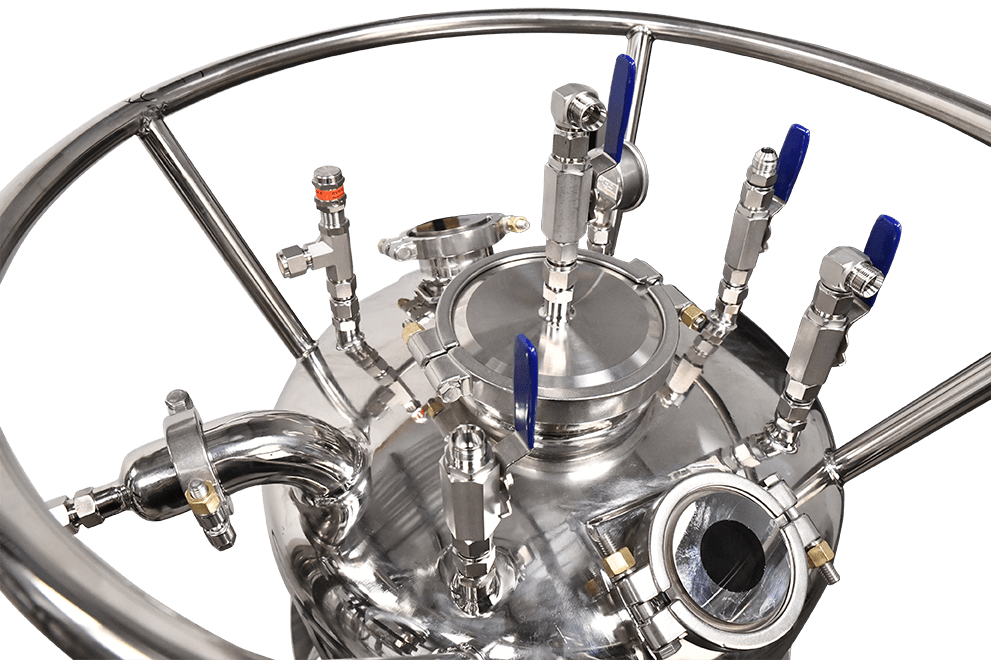

  • Newly designed Jacketed Solvent Tank/Collection Vessels (160 lbs)

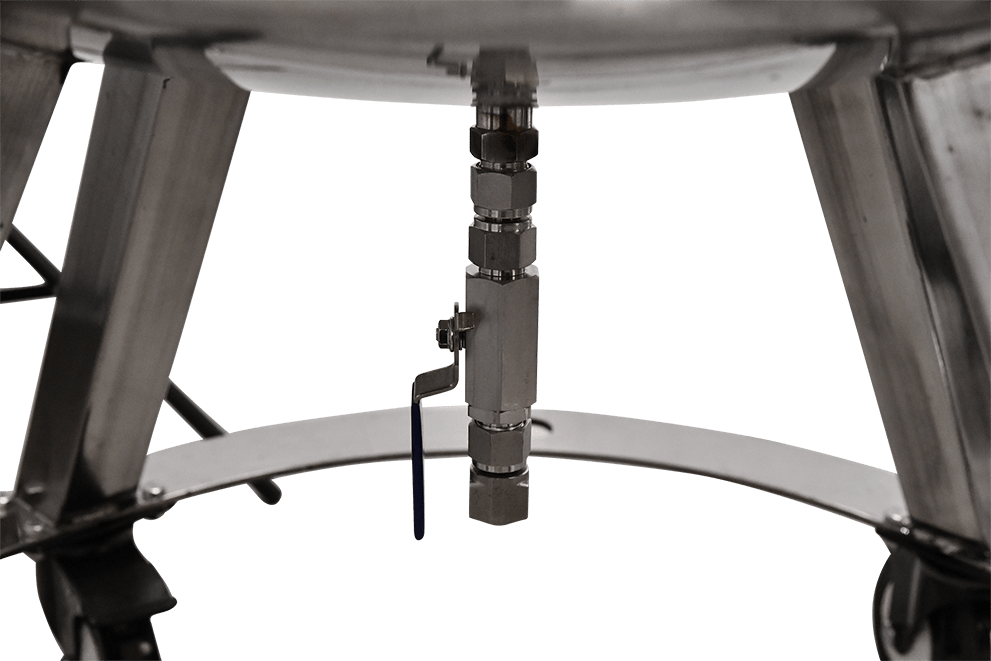

    • Designed for safety, modularity, and function. Liquid is drained from the bottom port and injected into the top rack manifold. 2″ jacket ports help maintain a quick flow with any chiller/heater size. Three auxiliary vapor ports for utility and maintenance.

  • Modular Heat Exchanger

    • Coil-based heat exchanger with the option of using dry ice or a chiller on the recovery side. Features 30 ft of coil per heat exchanger and can be combined with each other to increase cooling capacity. Included heat exchanger can recover up to 1 lb per minute of butane.

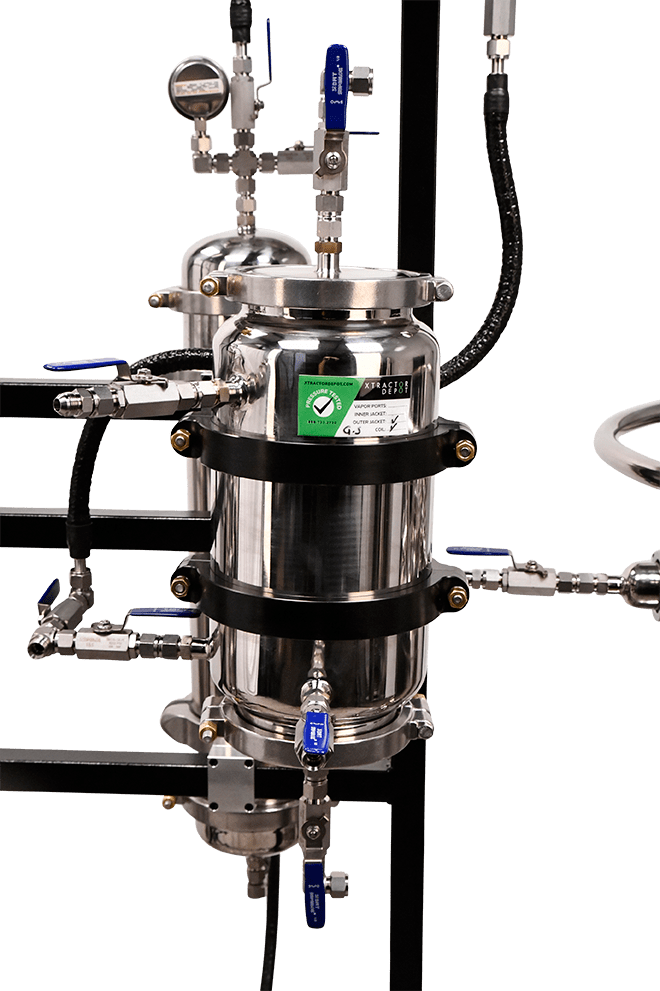

  • 1 – 6″ x 24″ Column (5 lbs milled material capacity).

  • Rack section with manifold

  • Material socks included to streamline workflow
