The Icarus 8.5LB True Dewax Bidirectional Closed Loop Extractor

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$10,667.00$17,131.75

Clear

***Note: Butane(Solvent) not included with systems unless ordered with drop-down menu or separately. Any order with butane WILL NOT SHIP EXPEDITED.



***DISCLAIMER: This unit is intended for LEGAL purposes only, to be used in accordance with local laws and ordinances. Use only in extremely well-ventilated areas. Check with your local fire marshal for guidance when operating indoors.



***NOTE: This unit requires a chiller or circulation system.

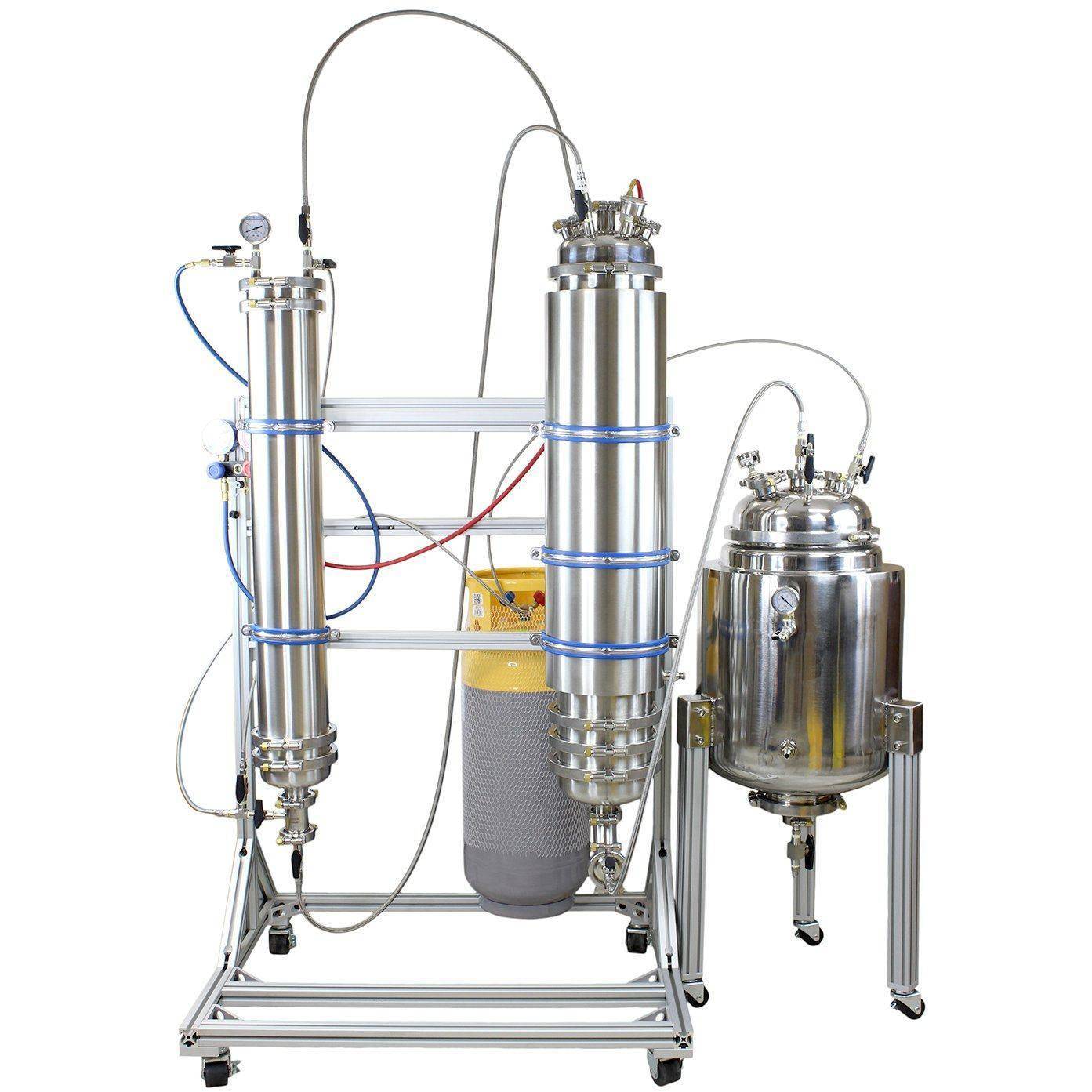

The Icarus 8.5LB True Dewax Bidirectional Closed Loop Extractor

Butane Extraction System

(System comes with 1 yr. limited warranty)

The Icarus unit shares the same functionality as the standard Bi-directional with the convenience of rack-mounted columns. The Bi-directional solvent input provides a complete material saturation. The oil-bearing solvent advances into a sleeved spool chilled with dry ice for further filtration. Freezing the solution will coagulate the waxes and lipids, causing them to crash out, leaving you with purified oil in the collection base.

Extractor Configurations:

  • Explorer: The standard true dewax extractor model has a welded collection base and a carbon steel LP tank.



  • Professional: The Professional series features a stainless steel LP tank with larger bore valves and 3/8-inch hoses, increasing recovery rates. The collection base has a removable bottom for an easier extract pour.



  • Elite:  The Elite series comes equipped with the same features as the Professional model with American-made instrumentation valves by SSP. The collection base has an outer liquid jacket that permits precision heating during recovery. Paired with a heated circulator* eliminates the need for a hot water bath. Active recovery: BVV’s 4-cylinder recovery pump kit with 1/2-inch JIC hoses. An active recovery kit reduces the amount of dry ice needed.

*NOTE* This model requires a heater circulator or chiller *NOTE*

Explorer Professional Elite
  • BVV 316SS Full Bore Valves
  • Welded Bottom Recovery Base
  • BVV 316SS Full Bore Valves
  • Splatter Platter Recovery
  • Stainless Steel Butane Storage Tank
  • 3/8″ Recovery lines
  • SSP Valves
  • Water Jacketed Recovery
  • Jacketed Stainless Steel Butane Storage Tank
  • BVV 4 Cylinder Butane Pump
  • 1/2″ Max Bore Recovery lines



Key Features:

  • 304 Stainless Steel construction
  • 37° JIC Stainless Steel PTFE hosing
  • BUNA-N tri-clamp gaskets

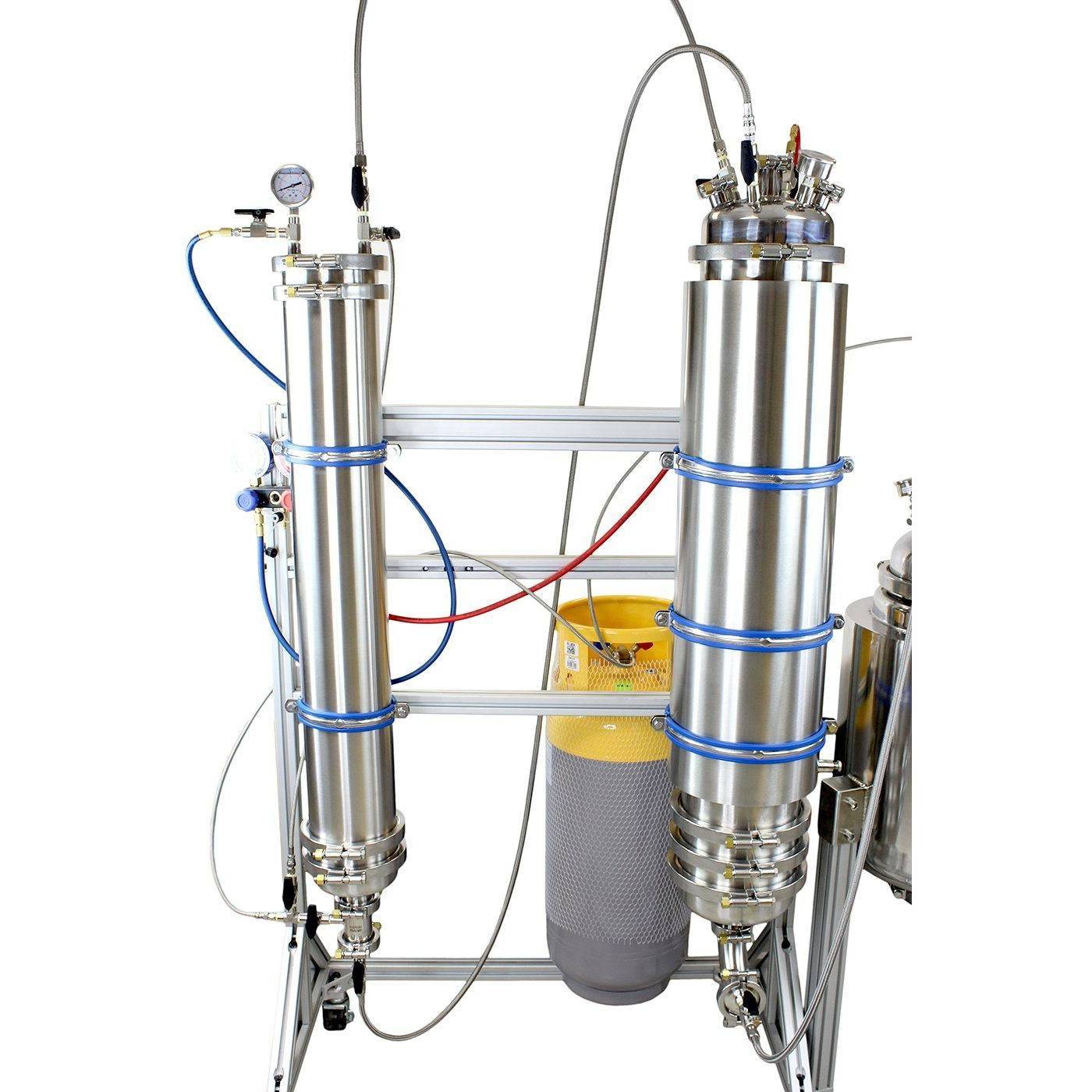

  • 6”x 36” rack-mounted material column

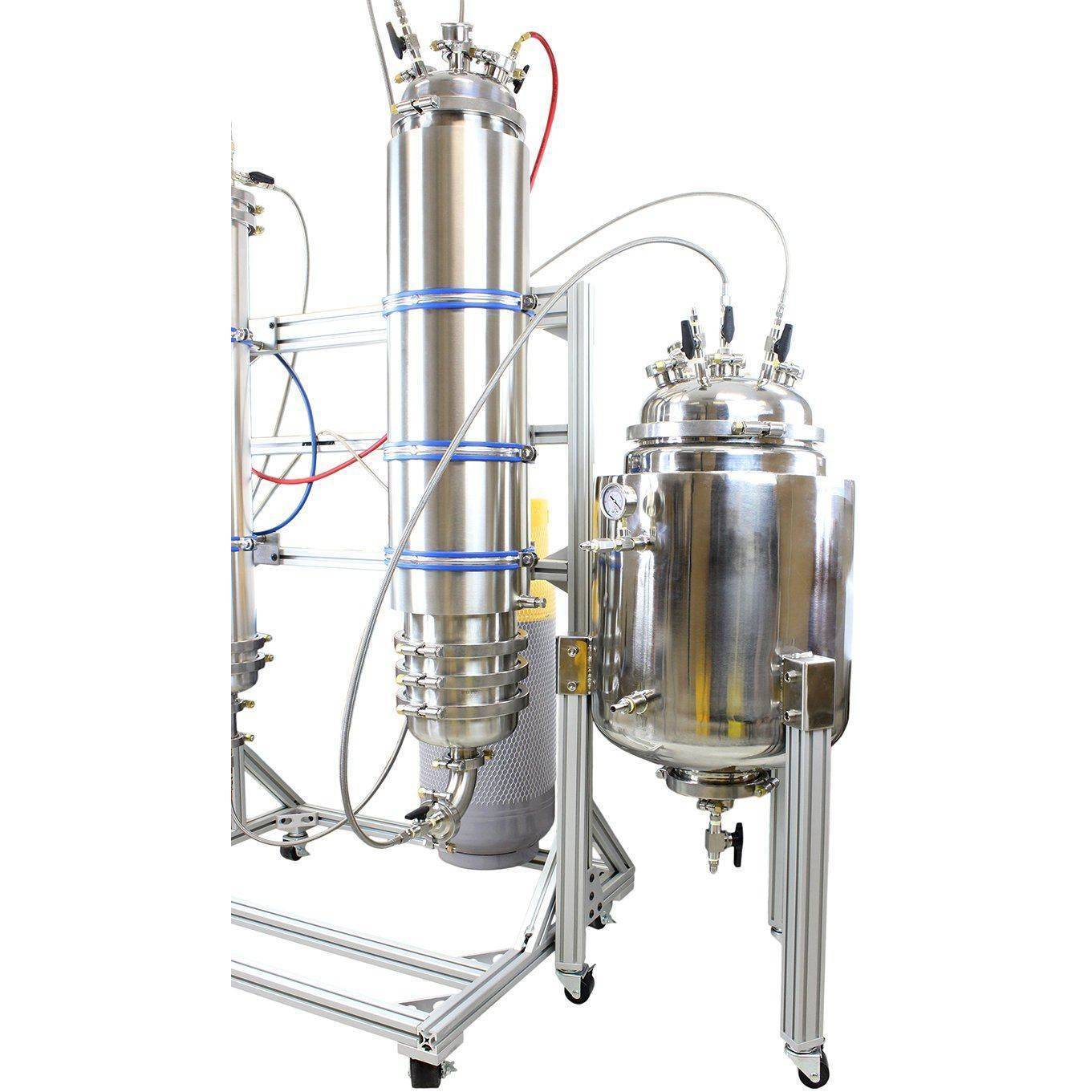

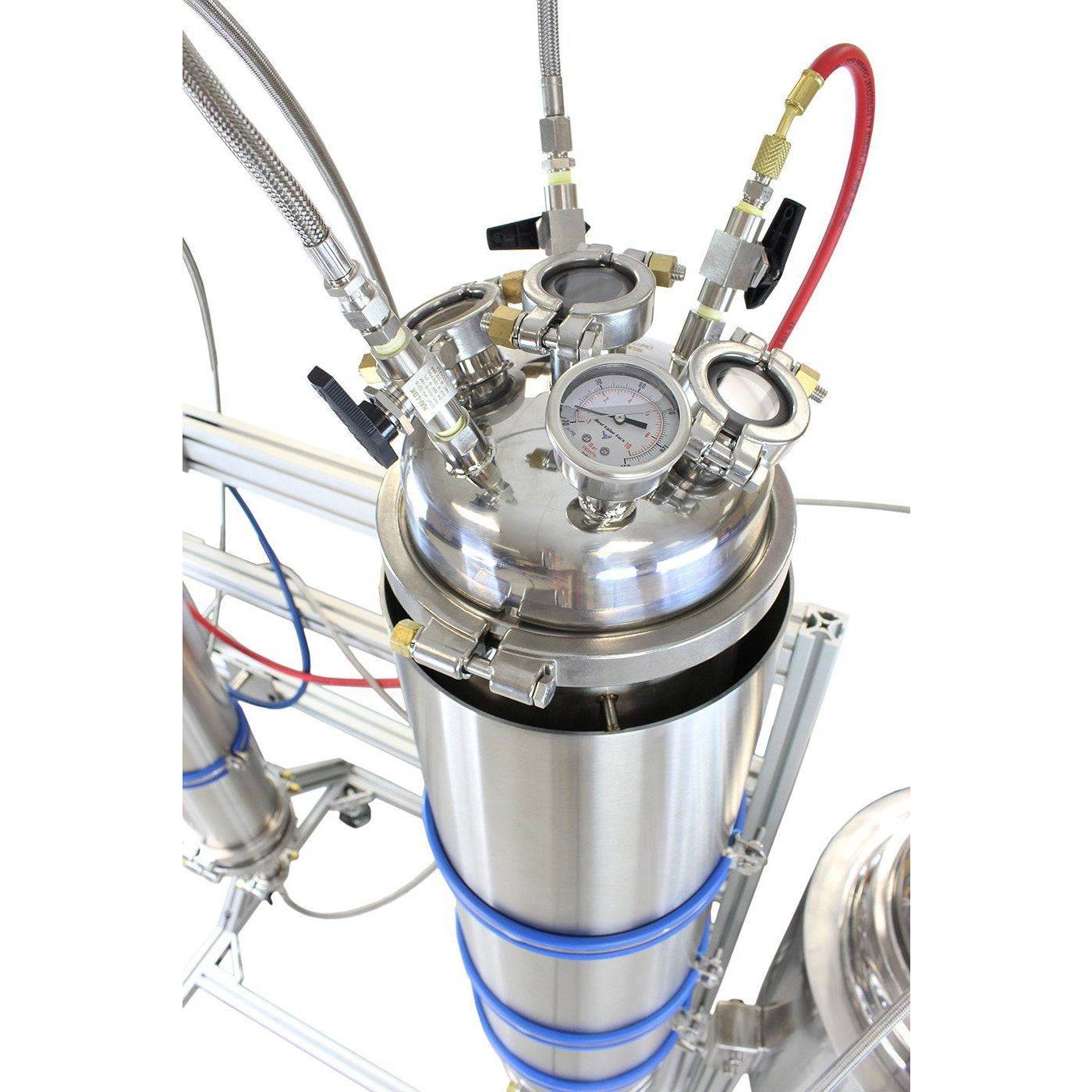

  • 8″x36″ Dewax column
  • Multistage filter stack system

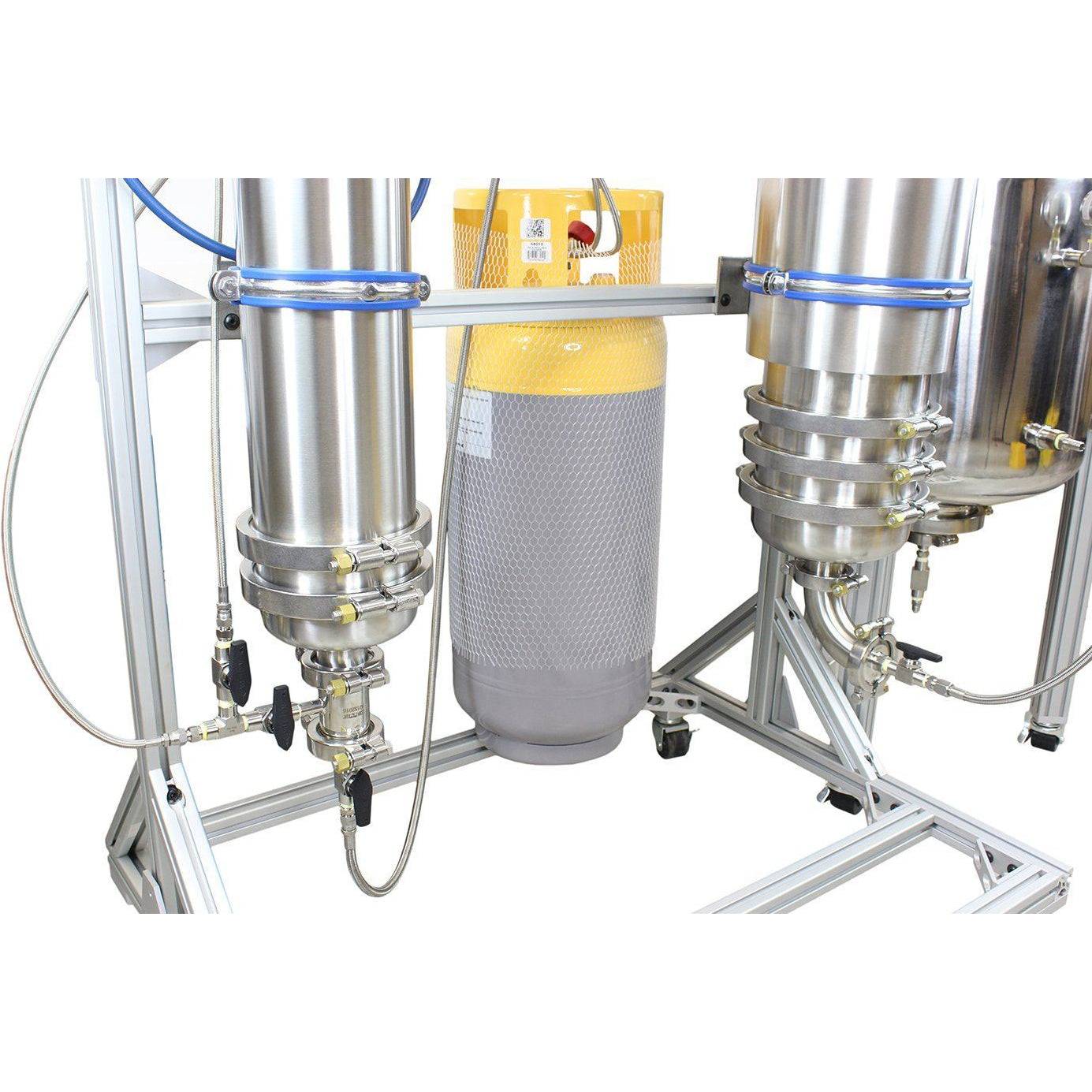

  • Double jacketed collection base with locking wheels
  • Collection vessel pour off valve
  • BVV 316SS low temp ball valves (Elite: SSP Valves)
  • Manifold for vacuum and nitrogen assist

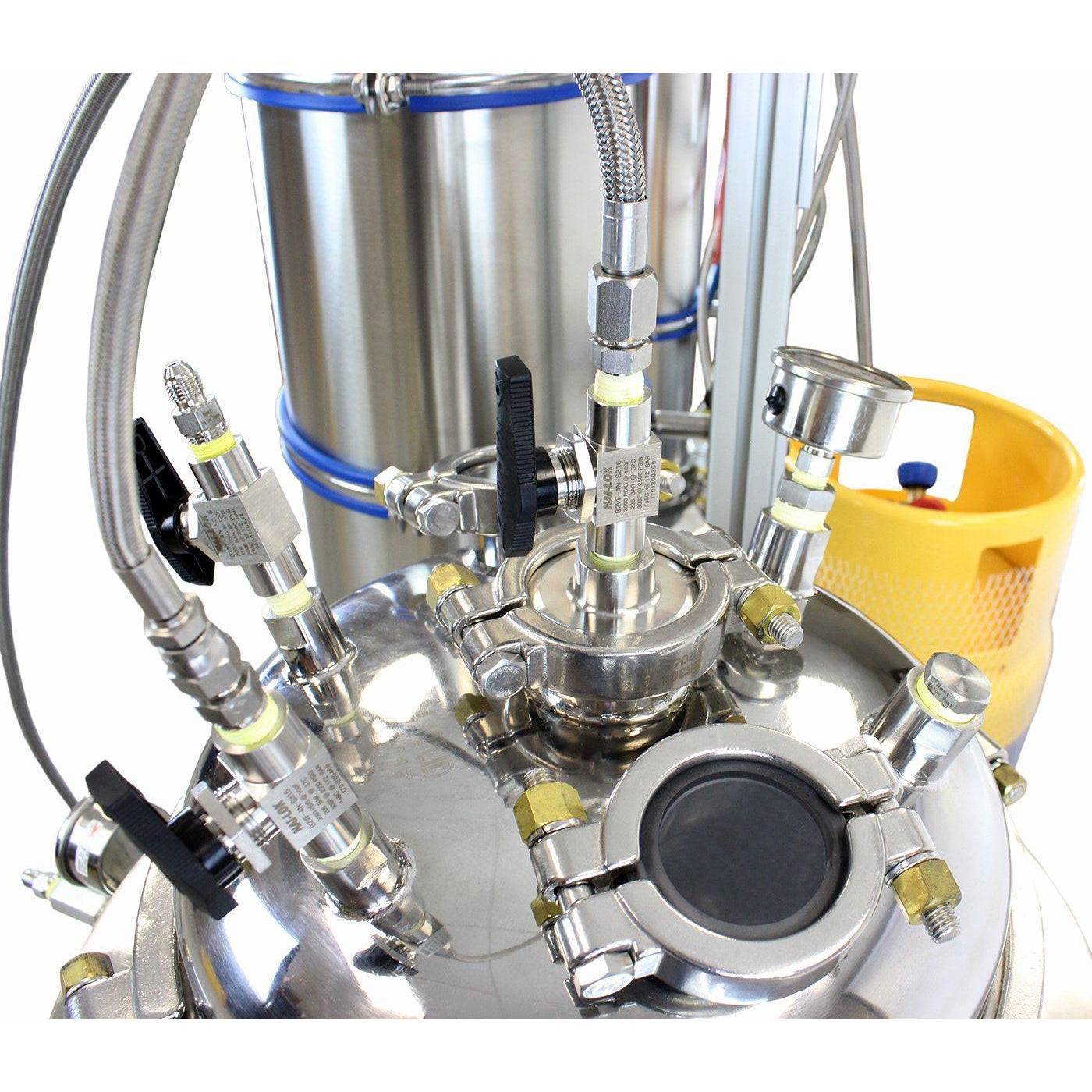

  • Polycarbonate sight glass on collection base
  • High-pressure clamps
  • 80-20 racking unit
  • #100 LP Recovery tank (Elite: SS #100)

 Specifications:

  • Operating Temperature Range: -40C (-40F) to 72C (160F)
  • Ultimate Vacuum: as low as 10 Microns
  • Base unit Maximum Capacity: 1301 cubic inches, (21.323 Liters)
  • Construction: All components made of 304& 316 Stainless Steel.
  • Intake Fittings: JIC 37 Degree Vacuum Fittings
  • Max Vacuum -29.9inHg
  • High Polish Interior base



*Note: Column capacity may vary depending on the density of packed material and packing density. Capacity is calculated using the industry standard of 4.2g/in3. This is the upper limit for column capacity. Low density, uncut, and/or lightly packed material can reduce capacity by 50%. For best results, we recommend to tightly pack coarse ground material.

Cylinder Volume


Select Material

How Much Will Fit in Cylinder

Formula
Volume x Weight of Water x Specific Gravity

Constants
Weight of Water = 0.0360 (lbs / in3)
Specific Gravity of =

Account for an 80% fill to avoid a hydraulic lock

How Much Material Will Fit in the Cylinder

Packing Density (g) 2.5 3 3.5 4.3
Grams of Material
Lbs. of Material
