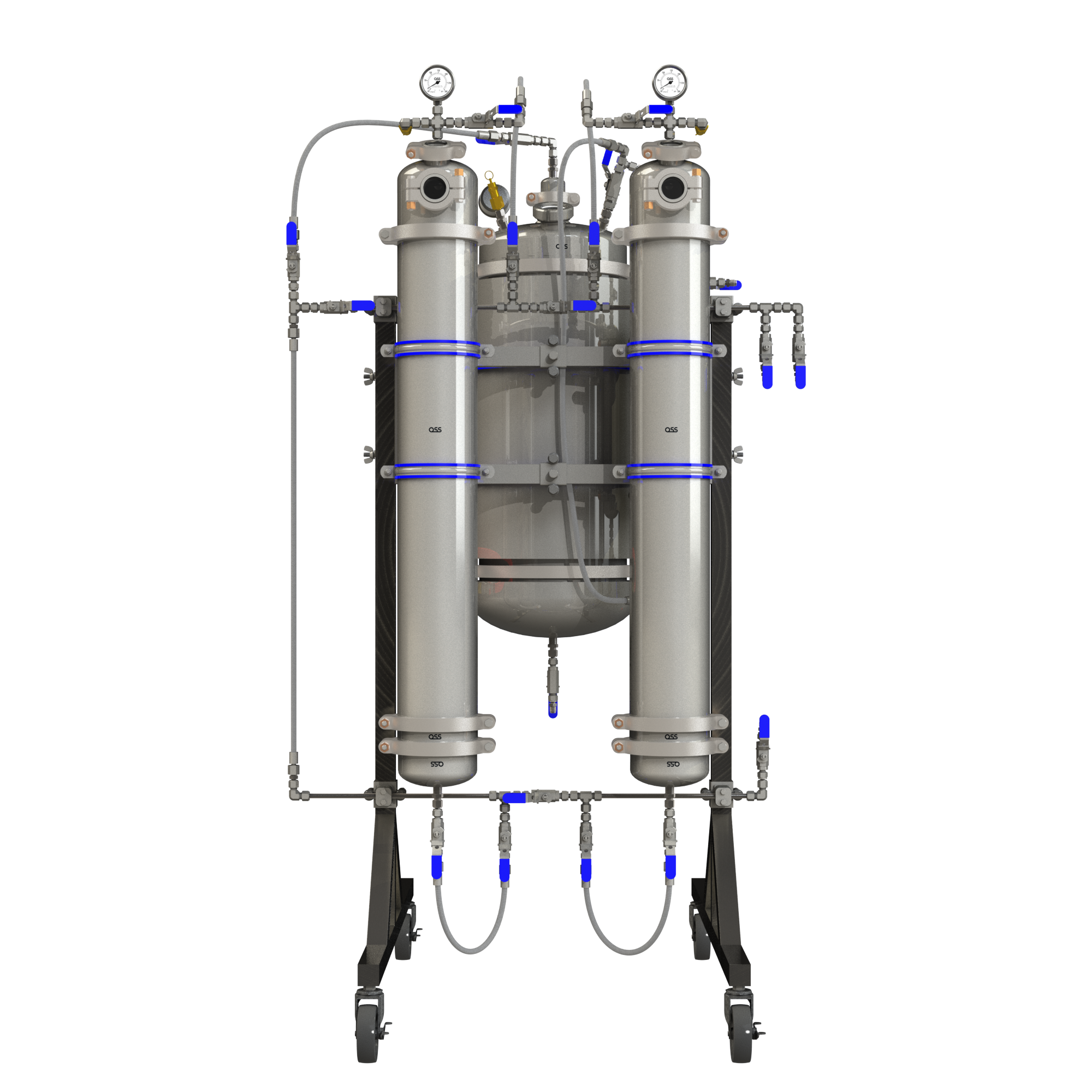

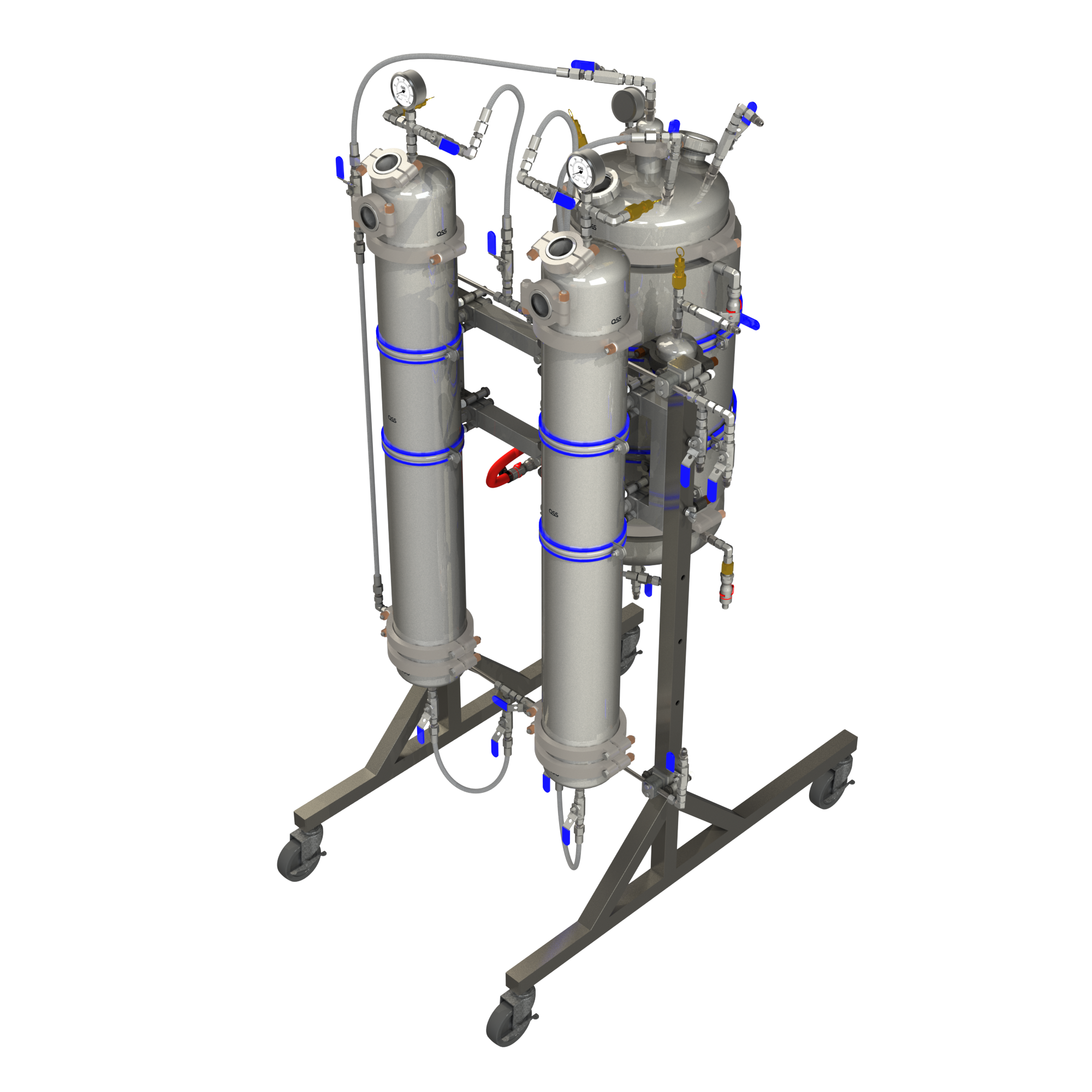

Open Source Steel Rainier -V4 – (15lbs)

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$8,806.50$8,872.25

SKU: N/A Category: Brand:

Pre-Assembled & Pressure Tested!

  • Two 6” x 36” – 15 lb Material Capacity Spools
  • 12” x 24” – Evaporator Vessel
  • Integrated liquid/gas injection manifold
  • 25-25um Inline Filtration
  • 1-3um Inline Filtration
  • 3” x 12” Inline Desiccant Filter Dryer (removes moisture in your gas!)
  • 2” Inline Sight Windows for Process Viewing (watch your complete extraction start to finish!)
  • ⅜” Double Ferrule Compression Fittings & Ball Valves
  • ⅜” AN/JIC Hose Connections
  • Compact Footprint: (LxWxH) 41x29x74

    • 90 minute run time*.
    • Process 60lbs+ of material in one 8 hour shift!**
    • Two Material Columns allowing for alternating load/wash cycles.
    • Integrated manifold with -50c rated OSS Ball Valves
    • Round Bottom Jacketed Base designed for hot water recirculation for a speedy recovery
    • Easy to use pour spout for oil capture

    • SOLVENT TANK SOLD SEPARATELY
    • Setup for Passive Recovery
      -If you’re recovering actively, look into our Coils/CondensersPumpsand Heaters/Chillers to upgrade
    • Included Filter Papers – (1-3micron and 20-25micron)
    • Included Filter Socks – (4x Size – 6″x36″)
    • Included Stainless Braided Hosing – (4x 18″, 1x 24″, 1x 32″, 2x 48″, 1x 72″, 1x 96″)
    • Included Rubber Hosing for Hot Water Recirculation (½” x 25ft)
    • *All run times are based on 99.95% Iso-Butane.
    • **Run times do not include loading and unloading of material or cleanup time.
    • ***Recovery times vary depending on the amount of available hydrocarbon vapors.
