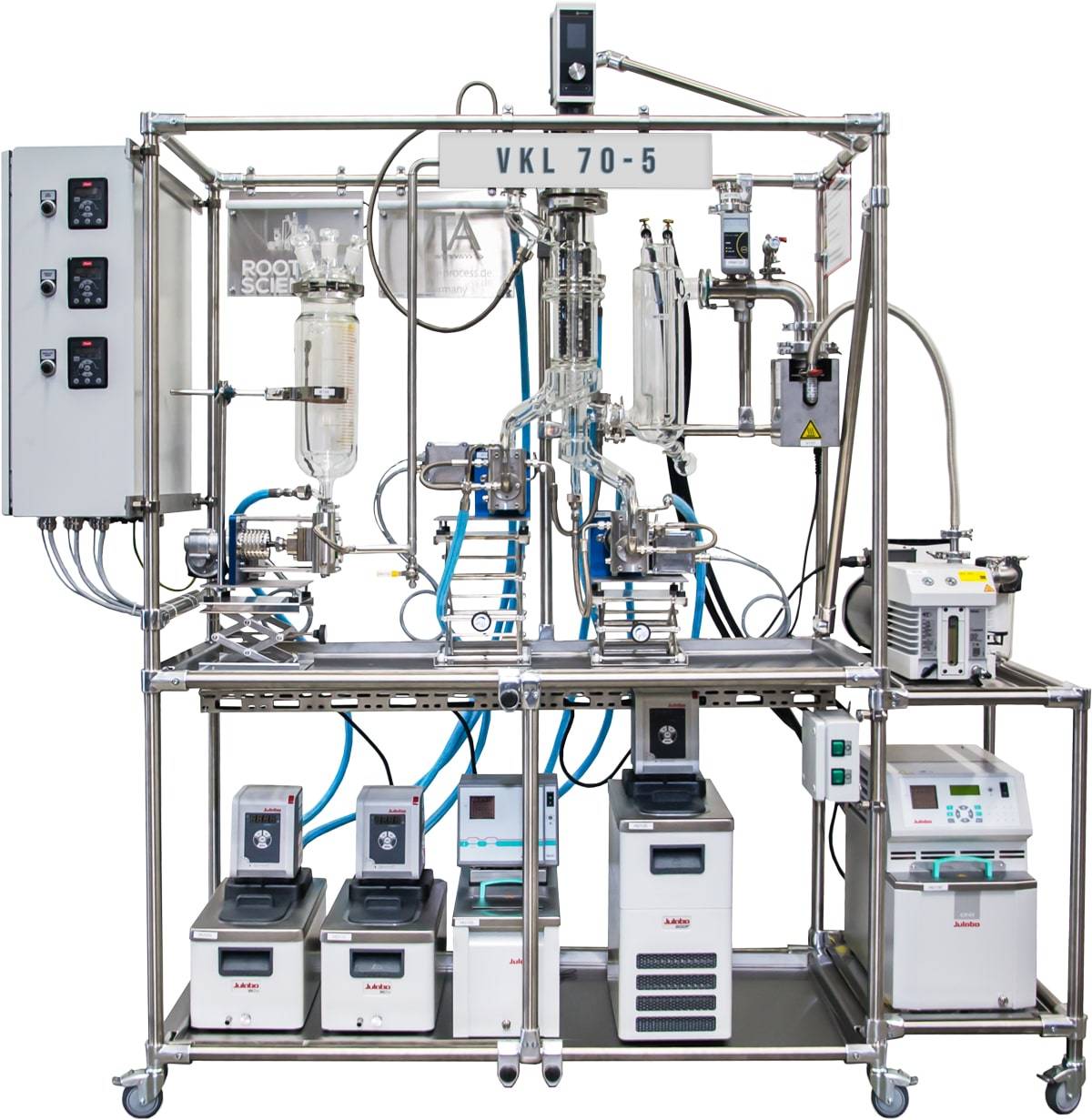

Root Sciences VTA VKL 70-5 RS Wiped-Film Short Path Distillation System (pre-owned)
Add to wishlistAdded to wishlistRemoved from wishlist1
Add to compare
Tested and Certified by our staff, this pre-owned VTA is specifically intended for the processing of cannabis and hemp crude oil, with honest and accurate throughput/yield rates reflecting that. Designed and manufactured by VTA of Germany, these machines are expertly engineered to produce distillate that can be used in a wide variety of products commonly found on the market today.
VTA MODEL VKL 70-5 RS SHORT PATH DISTILLATION SYSTEM, JULABO CORIO CD200F REFRIGERATED/ HEATING CIRCULATOR; HUBER CC 304 HEATING CIRCULATOR; HUBER MINISTAT 230 COOLING CIRCULATOR; (2) JULABO CORIO CD-BC4 HEATING CIRCULATORS; LEYBOLD TRIVAC MODEL TYPE D16B VACUUM PUMP; HEIDOLPH HEI-TORQUE 100 OVERHEAD STIRRER
Pre-Owned VTA VKL WIPED-FILM SHORT PATH DISTILLATION SYSTEM
VKL 75
The AV15 has a residence time of less than 1 minute, is C1D1 Compliant, Peer Engineer Reviewed, abides by FDA 3-A sanitary standards, and UL listed VFD’s and motors.
SPECIFICATIONS
Throughput
1,500 mL/h
Distillate yield (per 8 hr. shift)
5 L
Evaporator surface area
0.05 m2
Power requirements
1Φ 240 V, 60 Hz, 60 A
Stages
Single
Dimensions
(L x W x H) 5.1′ x 2.1’ x 7.0’
Weight (gross)
580 kg
Certification
UL ready (all necessary individual components are UL listed)
Warranty
1 year (excluding glass and vacuum system)
KEY FEATURES
Throughput Capability: 1,500 mL/h
Optimal Yields and Potency: Finished distillate contains up to 99.85% total cannabinoids
Fully Jacketed System: Heated from start to finish, negating the use of heating tape or heat guns to keep product moving through the system
True Continuous Feed: Unique design allows uninterrupted operation through continuous feed into the system and dispenses finished product to atmosphere without breaking vacuum
Fully Pump-Driven Operation: Integrated pumps provide full operator control over feed and discharge rate instead of relying on gravity fed systems
Expert On-Site Training: Instructions for operation of equipment and proprietary parameters for producing distillate are included with purchase
Service and Maintenance: Root Sciences offers Gold and Platinum service packages to keep your equipment in top operational condition
Short-Path Wiped-Film Distillation Equipment
Root Sciences’ wiped-film molecular distillation plants are specifically intended for the processing of cannabis and hemp crude oil, with honest and accurate throughput/yield rates reflecting that. Designed and manufactured by VTA of Germany, these machines are expertly engineered to produce distillate that can be used in a wide variety of products commonly found on the market today.
Equipment is available to suit a range of operations, from small-scale labs focusing on the recreational THC market, all the way up to large-scale hemp processing facilities focusing on industrial CBD production, and everything in between.
The VKL 70-5 is Root Sciences’ entry-level system in the distillation lineup and is suitable for processors in need of industry-standard production rates for the recreational cannabis market. If increased production rates are desired, the VKL can easily be combined in series with an additional VKL unit, doubling effective throughput and simplifying the process flow. The dual-system upgrade option adds redundancy (for maintenance or in the event of downtime) and can also be performed at a later stage, allowing your equipment to grow with your operation.
ROI/PAYBACK PERIOD
Below are conservative calculations that can be expected with the VKL 70-5:
