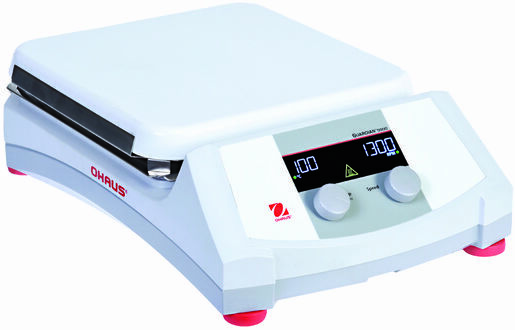

Ohaus Hotplate Stirrer 10×10

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
MPN: e-G51HS10C
Magnetic Stirrer Type: Magnetic Hotplate Stirrer
Brand: OHAUS
Capacity: 18 L
Power Requirements: 120V, 11.2A, 50/60Hz
Plate Construction: Ceramic

$747.00

SKU: G51HS10C Category: Brand: ,

GUARDIAN 5000 HOTPLATES & STIRRERS

OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academic and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple setpoints. Select from five models with three plate sizes for your everyday heating and stirring applications.



Applications

Boiling Water, Water/Oil Bath Preparation, Sample and Solution Preparation, Dissolving Buffers and Reagents, Preparing Media, Concentrating Samples

Display

Backlit LCD Display for temperature and speed, green indicator lights when unit is heating and stirring, prominent hot top indicator light, probe in use icon, Single Point Calibration icon

Operation

Stirring from 60 to 1600 rpm, Temperature range of ambient +5°C to 500°C (ceramic top) or 380°C (aluminum top), power cord (included), stirring models include a 1.5” (3.8 cm) PTFE coated stir bar

Construction

Probe connection, SmartHousing™ stays cool to the touch and is chemical resistant, IP21 Ingress Protection, polycarbonate front panel, control knobs, On/Off switch for heater disconnect, built-in support rod holder, easy to clean ceramic or aluminum tops

Design Features

Hot top indicator light, audible alarm, SafetyHeat™ protection shuts off the heater in the event of a malfunction, temperature calibration feature for 3 probe and 3 plate setpoints



e-G51HS10C Specifications

Function

Heating and Stirring

Capacity

18 L

Plate Construction

Ceramic

Plate Size

10″ x 10″ (254mm x 254mm)

Temp. Range

Ambient + 5°C – 500°C

Speed Range

60 rpm; 1,600 rpm

Calibration

Temperature Calibration 3 Plate/3 Probe

Control

Digital

Dimensions (LxWxH)

16.3″ x 11.25″ x 4.8″ (415mm x 286mm x 122mm)

Display

Custom Backlit LCD

Inuse Cover

Available as an Accessory

Net Weight

11.5lb (5.2 kg)

Power

120V, 11.2A, 50/60Hz

Power Consumption

1,210 W

Safety Certification

TUV

Speed Range

60 to 1600 rpm

Speed Stability

+/-2%

Temperature Probe

Available as an Accessory

Temp. Stability

+/-3% Plate, below 100°C +/-2°C and +/-1% Probe, below 100°C +/-1°C

Working Environment

41°F – 104°F, 80%RH, non-condensing (5°C – 40°C, 80%RH, non-condensing)
