Light Mounted Standard Pressure Clamps

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$50.00$60.00

Clear

LED Light Mounted Standard Pressure Clamps

(Batteries Not Included)

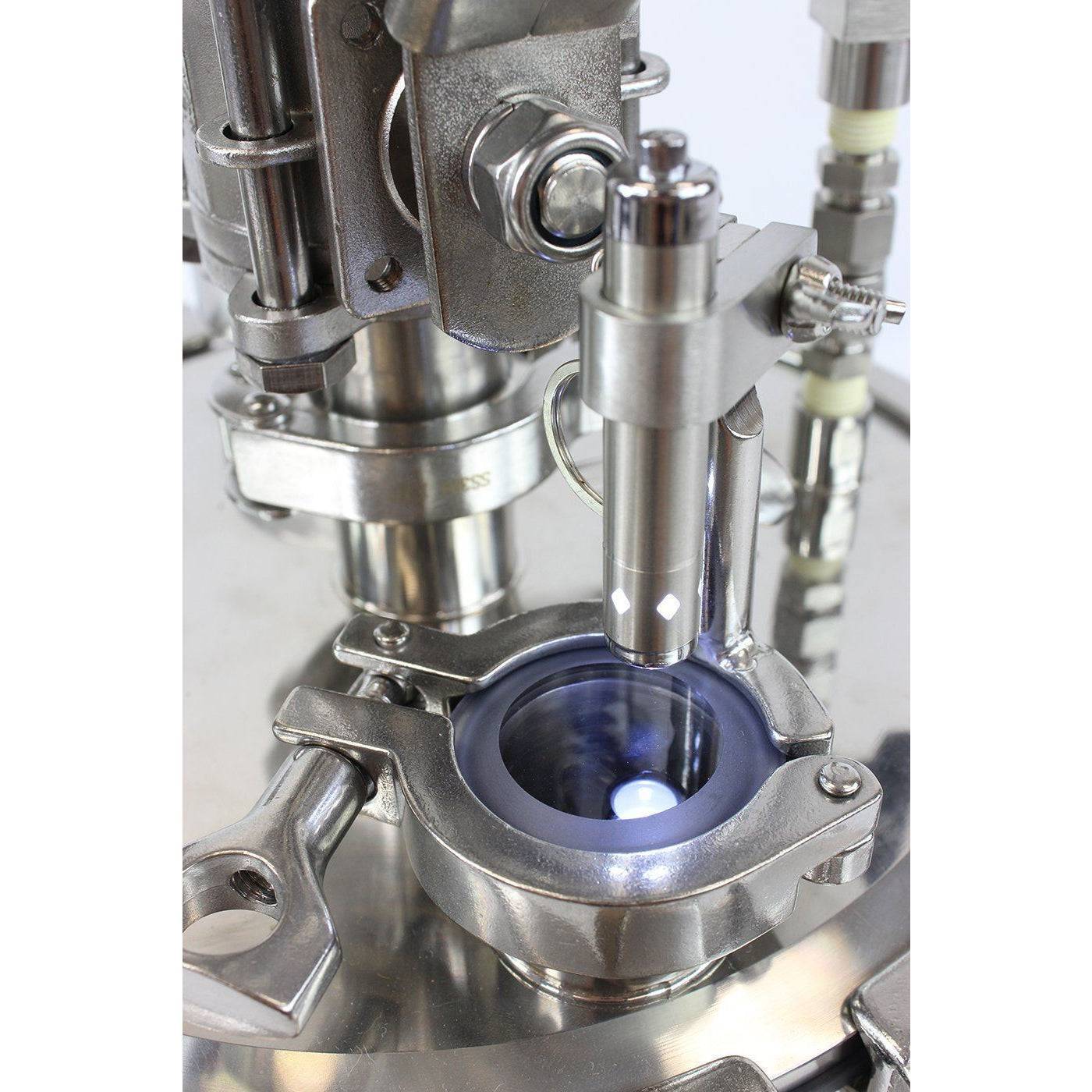

LED light mounted clamps offer the user convenience when trying to look into the base of their system because they don’t have to fumble around and find a flashlight. These lights are directly mounted to the clamp and allow you to angle them directly into the sight glass on most of our extraction bases. Best Value Vacs recommends tightening all Standard Pressure Clamps (Non-High Pressure) to finger tight and then use either a screwdriver or wrench to tighten them 2 full turns. It is not recommended to over tighten the clamp and bottom it out as this will cause the gasket to be over-compressed and put too much tension on the clamp threads, which could cause it to fail.

Sizes Available:

    • 1.5″ Standard Pressure Clamp

    • 2″ Standard Pressure Clamp

    • 3″ Standard Pressure Clamp

Specifications:

    • Hinge Type: Double/Single

    • Material: 304 Stainless Steel

    • Connection Type: Tri-Clamp

    • Light Specifications: Battery Powered LED

Sizes Maximum Pressure @70F (PSI) Maximum Pressure @250F (PSI)
1.5″ 500 250
2″ 450 250
3″ 350 150
