Iron Fist

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$11,995.00

Are you tired of having to pack and unpack your columns by hand? Are you tired of  how inefficient socks are? Are you looking to get more material per column? Are you looking for higher % yields? Are you looking to make your overall processes more efficient? If so the Iron Fist is the piece of equipment for you. Revolutionizing column packing and unpacking, Scientific 710’s Iron Fist is a revaluation in efficiency processors are looking for.

Everyone knows the trials and tribulations with having to pack and unpack columns by hand.   The toll it takes on employees, the wasted time it takes to manually pack and unpack, and the huge mess it leaves behind.  The Iron fist solves all these issues with the most labor intensive part of processing material.  By doing all the tuff stuff for you.  Simply load your columns  with as much material as desired.  Then when finished running your column simply hook the Iron Fist to your column and push out the material.  The Iron Fist will cut your loading and unloading time down by more than half.

When comparing the Iron Fist out performs is every way.  For instance the amount of material per column. With socks you are limited to a finite amount of material. The Iron fist will at a minimum increase the amount of material per column by 50% and upwards of 100% more material per column.  While adding more material is a huge plus, making sure the material is evenly and uniformly packed is just as important.   By packing the material evenly and uniform which is very difficult by hand or with socks you eliminate channeling and produce a much more even soak.  The benefits of having a tighter pack and an even soak with less channeling is higher % yields.  Not only significantly increasing  production but helping your operation produce a higher quality product at a lower cost.

Product Features

  • Effortlessly pack columns with 0-100% more material. User controls how much material to pack by adjusting hopper column (not included) length and packing force applied.
  • Evenly distributes packing pressure for uniform solvent distribution, reducing solvent channeling.
  • Biomass remains compacted after it is unpacked minimizing biomass waste volume. Latent solvent remains trapped in material, reducing fire danger.
  • Encases column when in use, reducing airborne particles in accordance with occupational safety and health standards.
  • Removes wax, lipids, oils, etc. from column walls with each use. The biomass scrubs the column walls clean as it’s pushed out through the extraction column.
  • Double acting cylinder extends and retracts.

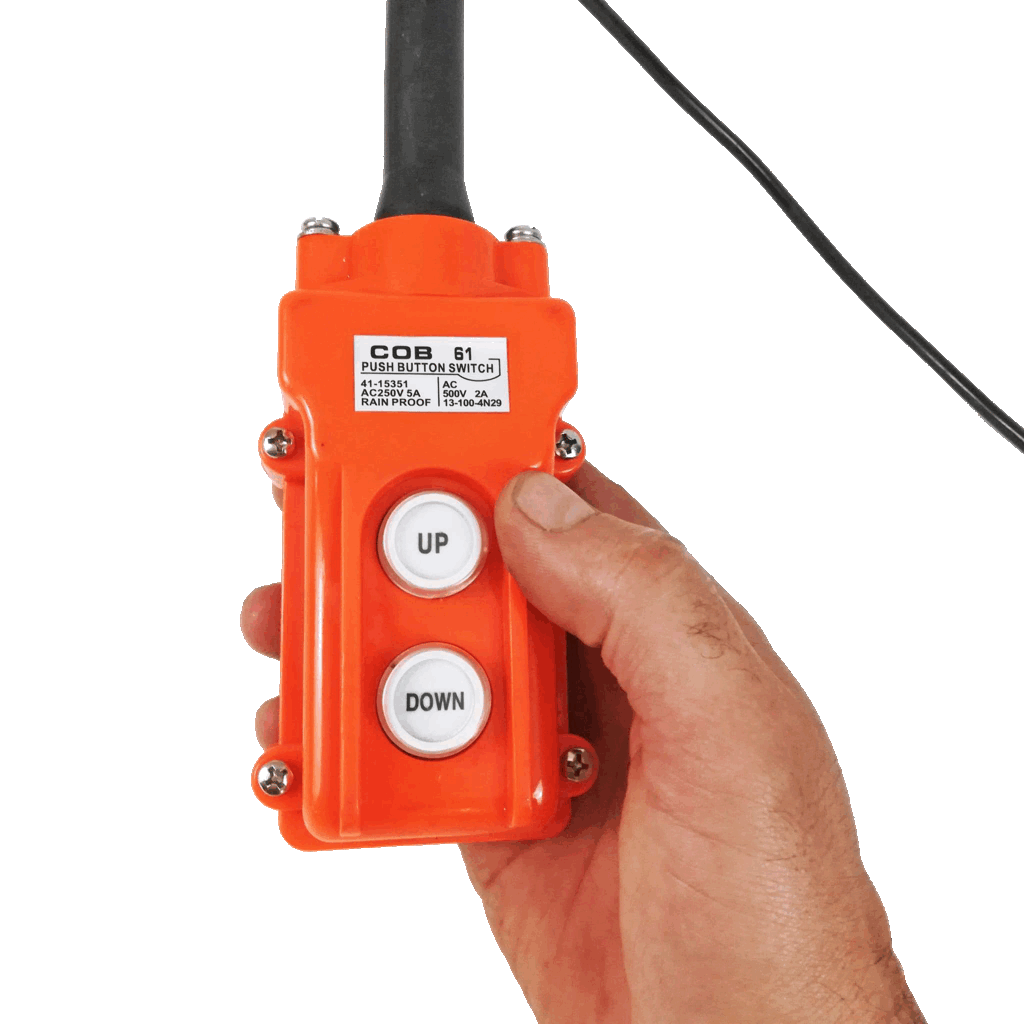

  • Hand held remote for easy operation.
  • Can be used in any orientation.

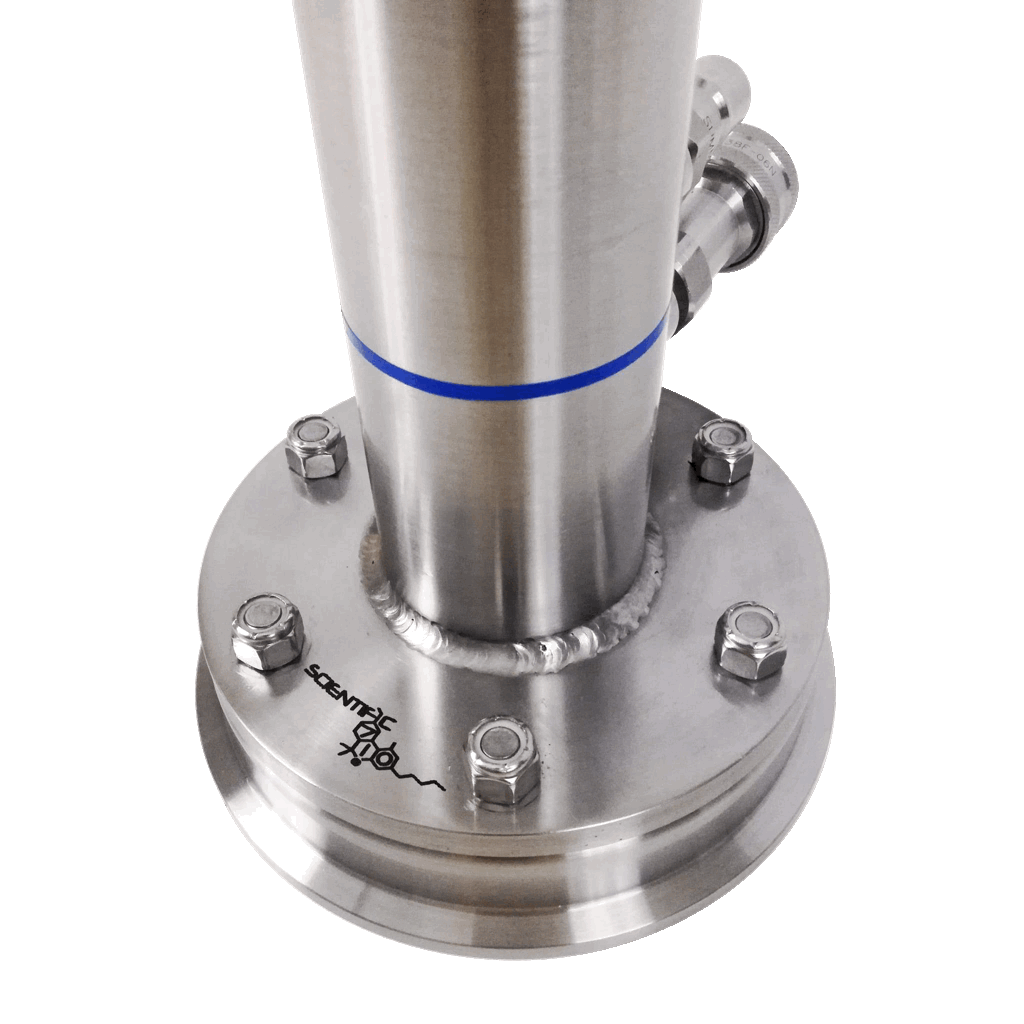

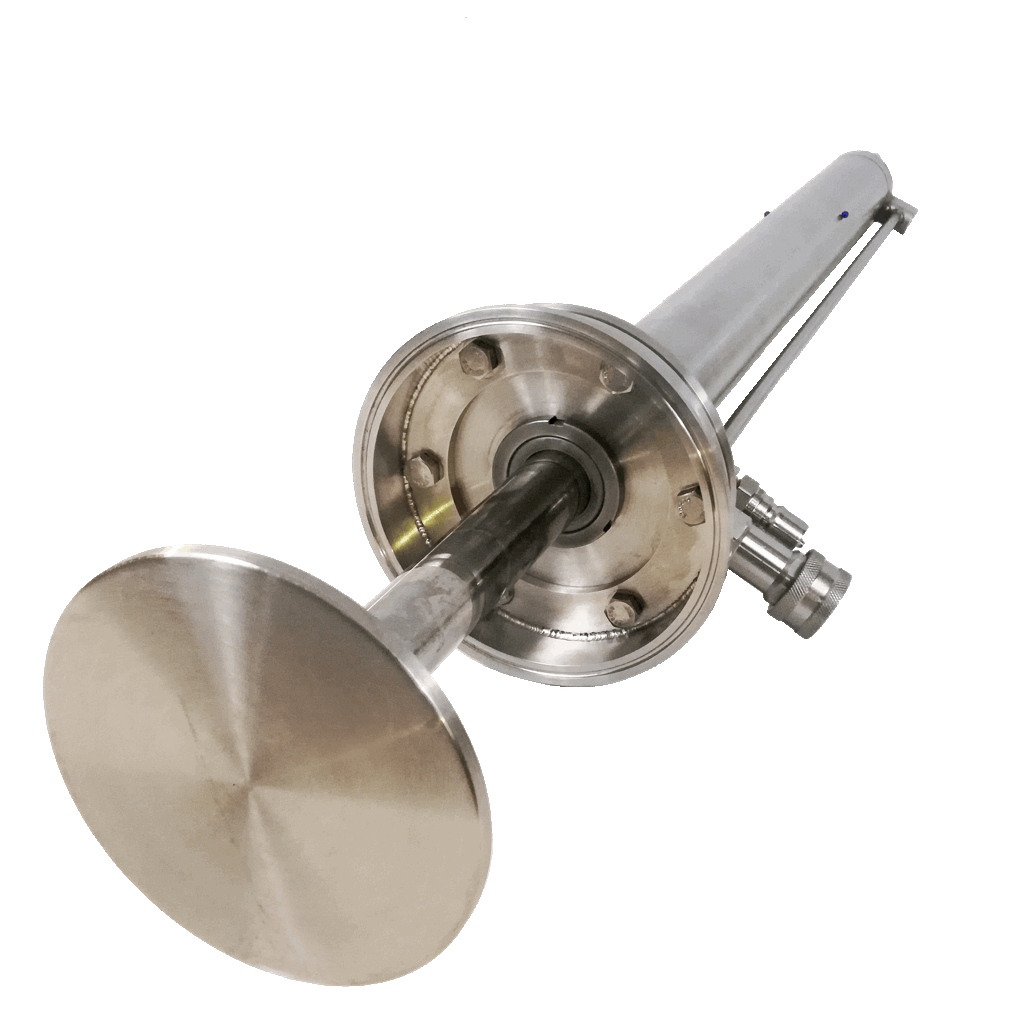

  • Easily adaptable to different column diameters with additional Plunger and Flange set. (sold separately)
  • Hydraulic oil is USP Grade NSF 3H, H1 registered and complies with FDA CFR 172.878 3H.
  • Food grade stainless steel construction, user manual, 1 year warranty, and made in the USA.

Product Specifications

Models: IF-300 through IF-1200 (built to order)

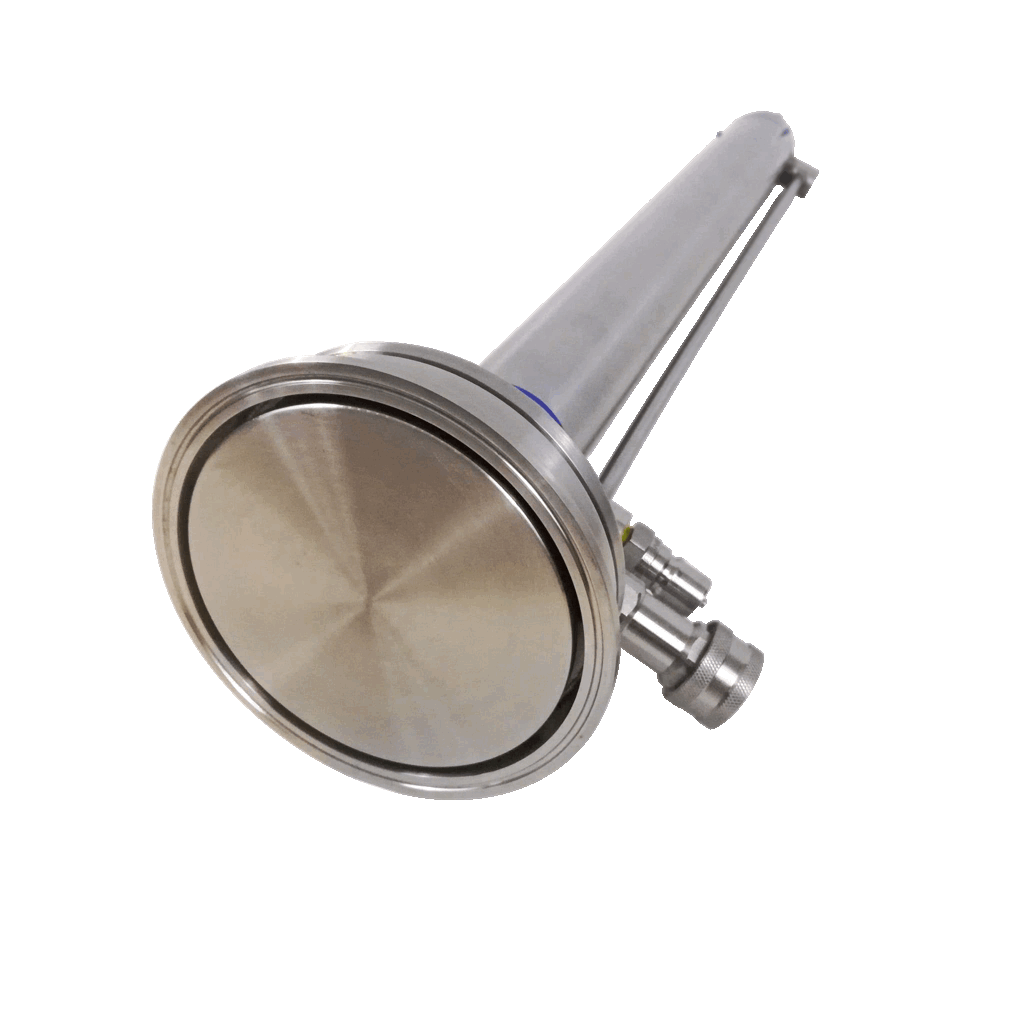

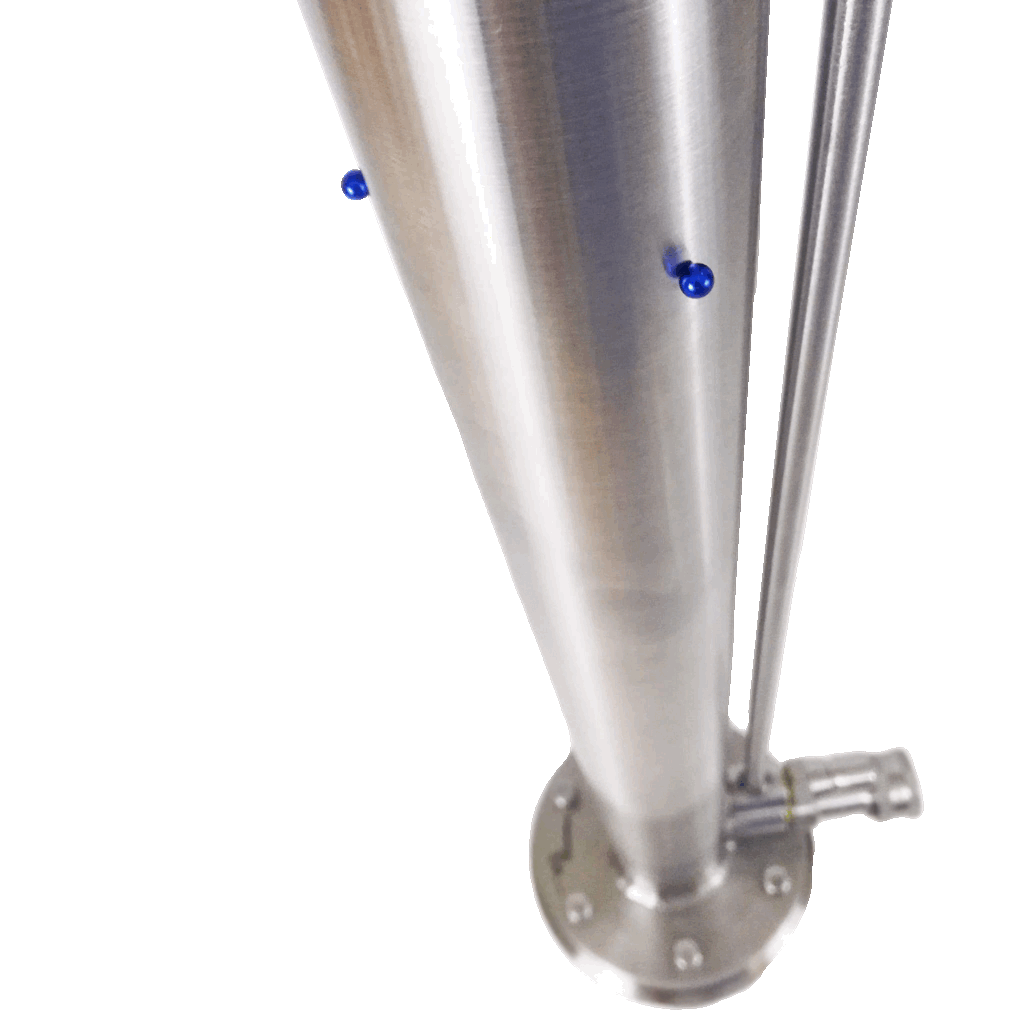

Type: Hydraulic Iron Fist
Dimensions: Total Cylinder Length: Stroke Length + 6″
Cylinder OD: 2.50” (column diameters 3″-6″)

Cylinder OD: 3.00” (column diameters 8″-12″)

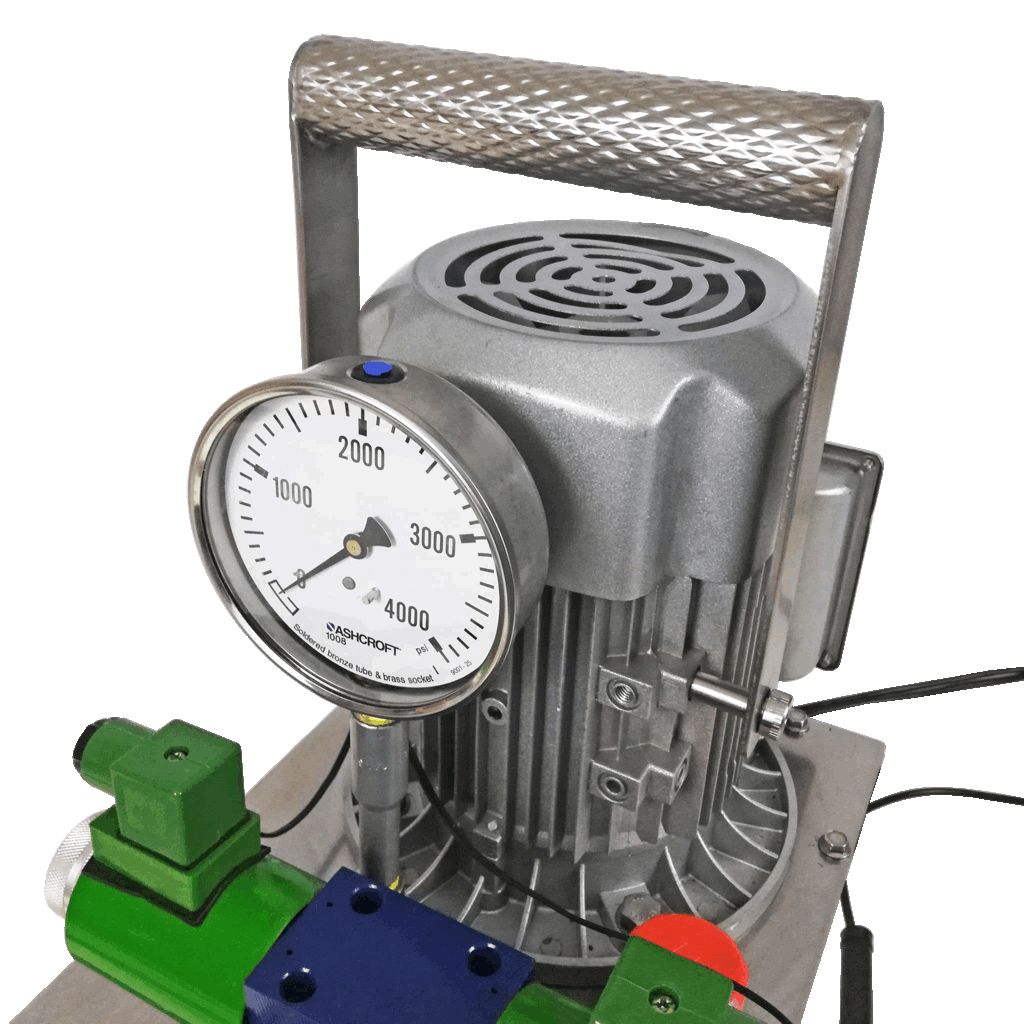

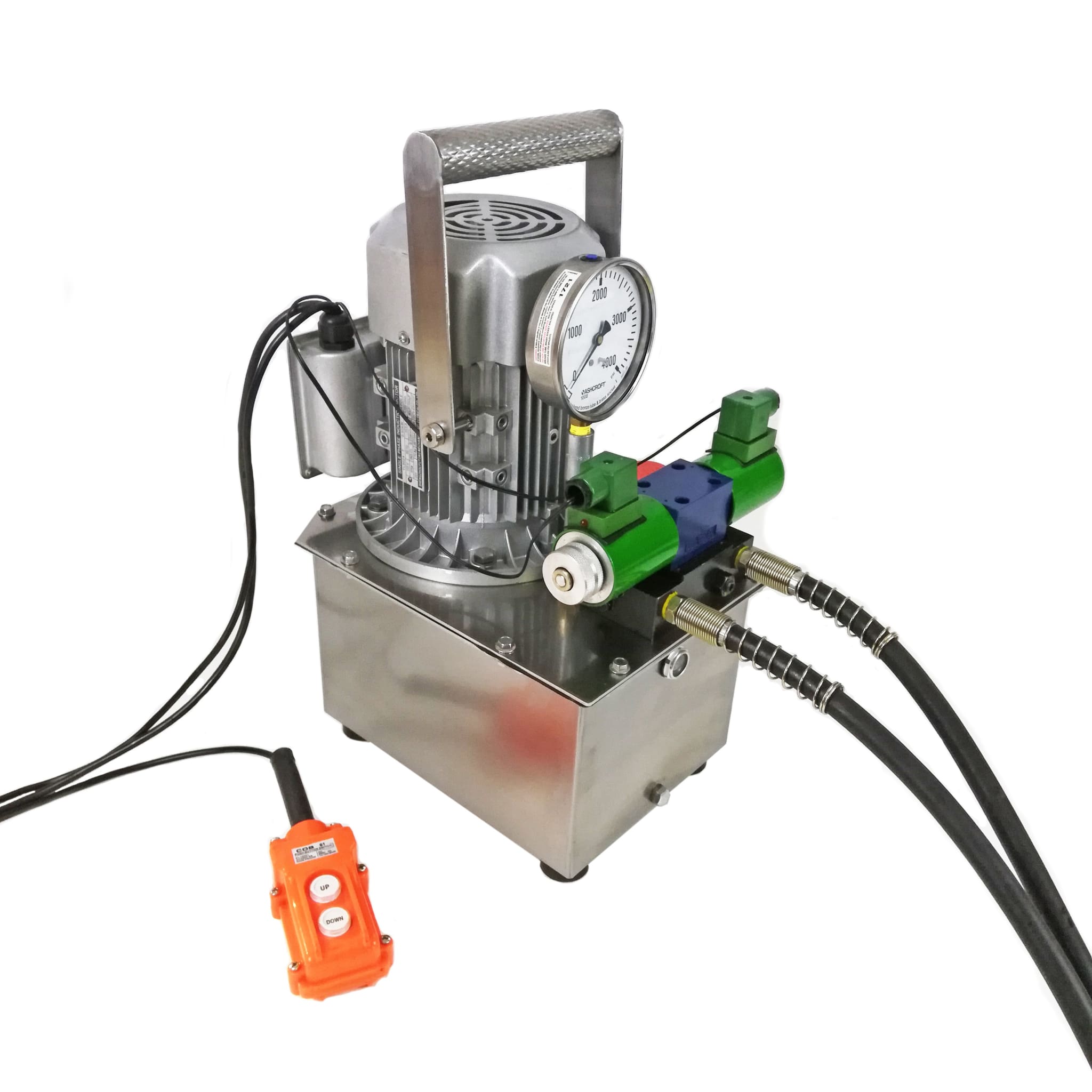

Hydraulic Power Unit: 9.4″ Wide X 15.7″ Tall X 11.8″ Deep
Weight: Cylinder: 8 Lbs / foot
Hydraulic Power Unit: 55 Lbs

Stroke Length:

Built to order
Cylinder Bore: Built to order
Construction: Food-Grade Stainless Steel
Application: Increase Percent Yields, Increase Overall Throughput, Reduce Labor
Voltage: 110 Volts / 60 Hz
Watts: 900 Watts Max
Amperage: 11.5 Amps Max
Motor: Inductive
Hydraulic Pump: Dual Stage
Hydraulic Flow: 1.3 GPM
Tank Capacity: 1.9 Gallons
Max Pressure: 4,000 psi
Max Force: 12,560 Lbs (column diameters 3″-6″)

19,625 Lbs (column diameters 8″-12″)

Working Fluid: Direct Food Contact Biodegradable Oil
Fluid Certifications: USP Grade NSF H1, H3 Registered Oil. Complies with FDA CFR 172.878 3H
Cylinder Installation: Freestanding (Vertical or Horizontal) or Hanging
Valving: Double Acting Solenoid with Handheld Remote
Display Type: Large 4” 4,000 psi Stainless Steel Pressure Gauge
Warranty: 1 Year Parts and Labor



Specification: Iron Fist

Size (Column Diameter)

6", Custom Order

Stroke (Column Length)

36", 48", Built to Order
