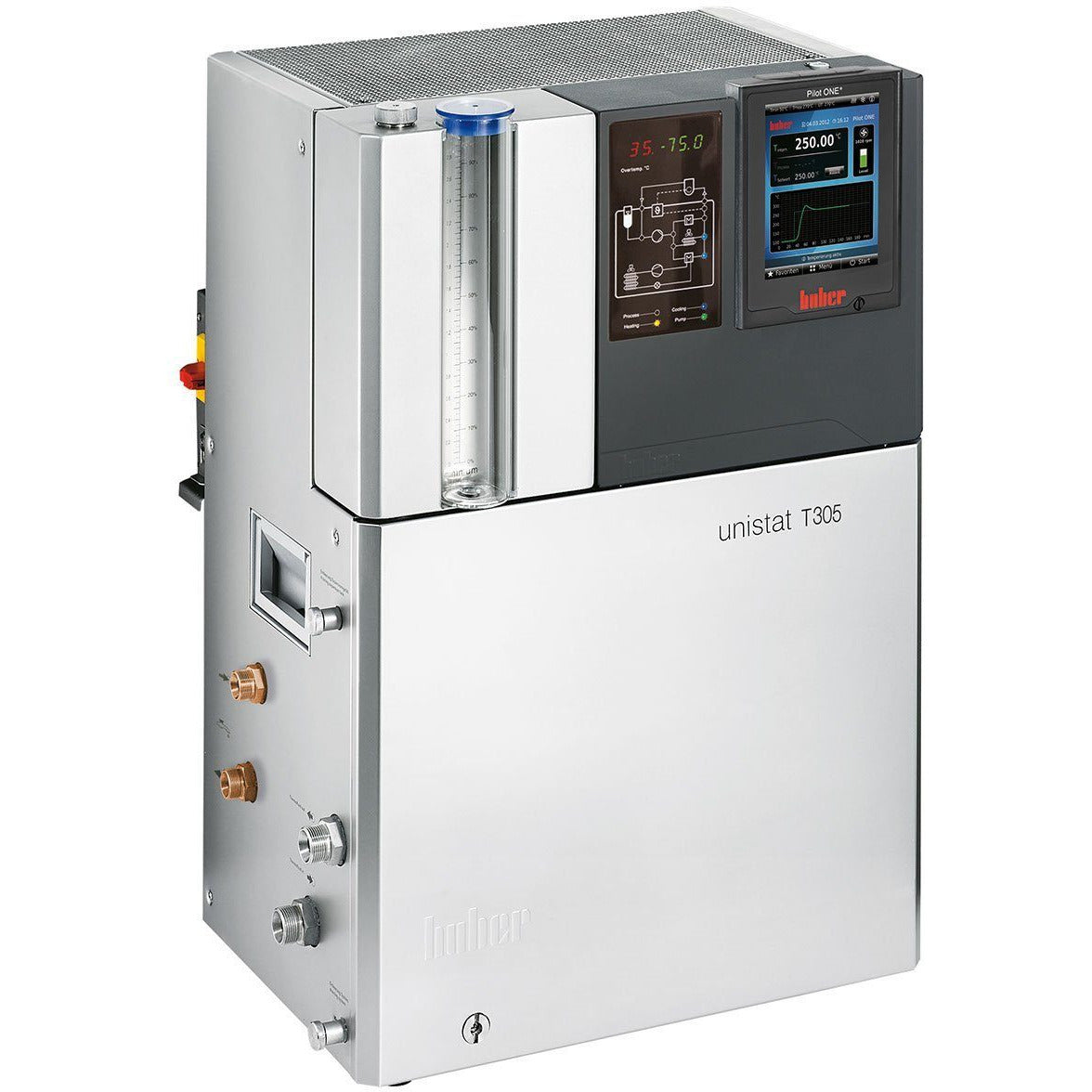

HUBER Unistat T305 with Pilot ONE

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Category: Brand:

HUBER Unistat T305 with Pilot ONE

(Please Note: There is a 2 – 3 weeks lead time)

The Unistat range inspires with unique thermodynamic properties and a range of functions to meet the highest demands. Unistat technology guarantees precise, reproducible temperature control results, the shortest possible heating and cooling times and large temperature ranges without the need for fluid change. All Unistats are fitted with the innovative

Because Unistats are hydraulically sealed, the service life of the temperature control fluid is dramatically increased by preventing oil loss through vapours and oxidation, further saving resources. Unistats are fitted with extensive safety equipment and are therefore suitable for unsupervised continuous operation. Relevant operating conditions are constantly monitored and the system is switched off if necessary or with the process safety feature the emergency cooling circuit is activated.



General Information & Temperature Controller
Temperature range 65…300 °C
Temperature stability ±0,02 °C
Temperature control TAC, self-optimizing (True Adaptive Control)
Controller Pilot ONE (E-grade “Basic”)
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 425 x 250 x 631 mm | 16.73 x 9.84 x 24.84 inches
Weight 37 kg | 81.59 pounds
Heating / Cooling Capacity
Heating capacity 4,8 kW
Circulation Pump
Pressure pump max. 45 lpm ; 0.9 bar | 11.89 gpm ; 13.05 psi
Pump connection M24x1,5 AG male
Permissible viscosity 50 mm²/s
Connections
Pt100 connection Pt100
Analogue input via optional Com.G@te
Analogue output via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host
Operating Data
Old sku 1003.0022.01
Permissible ambient temp. 5 to 40 °C
Filling volume min. 1.45 Liters | 0.38 gal
Volume of expansion 2.8 Liters | 0.74 gal
Power supply 208V 3~ 60Hz
Current max. 15 A
Fusing 15,5 A
