Huber Unistat 915w with Pilot ONE
(Please Note: There is a 2 – 3 weeks lead time)
Unistat Circulators are an ideal solution for fast and precise thermal control of externally connected applications. These systems offer rapid temperature change and a wide temperature range without having to change fluid. The new Pilot ONE controller features a navigation system with easily remembered icons and menus which are sorted by color to make routine work simpler. An amazing software guides you through your set up ensuring all the necessary settings are correct.
- Precise and reproducible temperature control results
- Fastest heating and cooling rate
- Wide temperature ranges with no fluid change

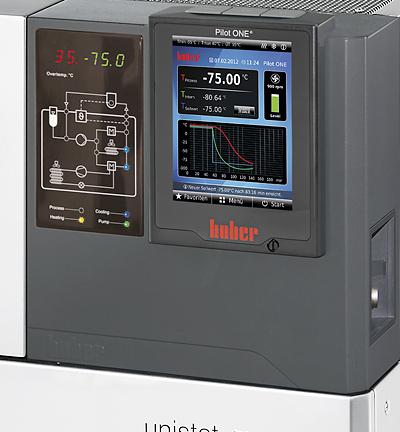

- Pilot ONE controller with 5.7“ touchscreen and comfortable menu navigation
- Adaptive temperature control, self-optimisingÂ
- Efficient circulation pump

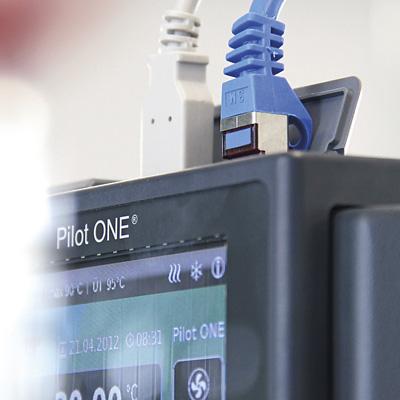

- Data communication via LAN, internet, USB, RS232 and RS485
- Efficient operation saves working time and operating costs
- Proven functionality for the process industryÂ
- E-grade “Professional” included
| General information & Temperature Controller | |
|---|---|
| Temperature range | -90…250 °C |
| Temperature stability ±0.02 °C | ±0.01 °C |
| Temperature control | TAC, self-optimizing (True Adaptive Control) |
| Display resolution | 0.01 °C |
| Alarm message | optical, acoustical |
| Controller | Pilot ONE (E-grade “Professional”) |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 630 x 704 x 1565 mm | 24.8 x 27.72 x 61.61 inches |
| Weight | 364 kg | 802.62 pounds |
| Heating / Cooling Capacity | |
| Heating capacity | 6 kW |
| Cooling capacity | 250 200 100 0 -20 -40 -60 -80 -90 °C
6,5 7,5 9 11 11 11 8,2 4,2 1,3 0,6 kW |
| Cooling machine | water-cooled |
| Refrigerant 1. stage | R507 (A1, H280) (2,9 kg) |
| Refrigerant 2. stage | R23 (A1, H280) (1,23 kg) |
| Circulation Pump | |
| Pressure pump max. | 110 lpm ; 1.5 bar | 29.06 gpm ; 21.75 psi |
| Pump Connection | M30x1,5 AG male |
| Permissible viscosity | 50 mm²/s |
| Connections | |
| Pt100 connection | Pt100 |
| Analogue input | via optional Com.G@te |
| Analogue output | via optional Com.G@te |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
| Operating Data | |
| Old sku | 1055.0011.01 |
| Permissible ambient temp. | 5…40 °C |
| Noise level | 64 dB(A) |
| Filling volume min. | 3.9 Liters | 1.03 gal |
| Volume of expansion | 6.5 Liters | 1.72 gal |
| Cooling water connection | G3/4 AG |
| Cooling water differential pressure min. | 1 bar | 14.5 psi |
| Cooling water pressure max. | 6 bar | 87 psi |
| Power supply | |
| Current max. | 29 A |
