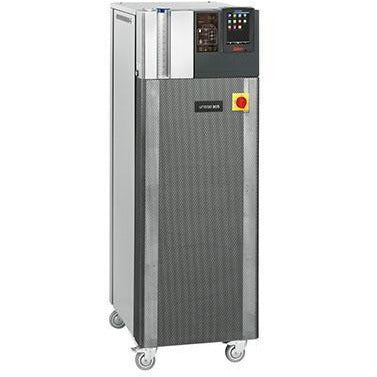

HUBER Unistat 905 Dynamic Temperature Control / Circulation Thermostat

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Call for Price

SKU: N/A Category: Brand:

HUBER Unistat 905 Dynamic Temperature Control

(Please Note: There is 8 week shipping lead time)
Disclaimer: This item is Non-Refundable once ordered.

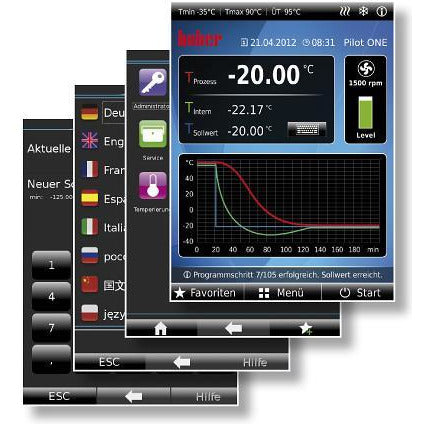

Unistat Circulators are an ideal solution for fast and precise thermal control of externally connected applications. These systems offer rapid temperature change and a wide temperature range without having to change fluid. The new Pilot ONE controller features a navigation system with easily remembered icons and menus which are sorted by color to make routine work simpler. An amazing software guides you through your set up ensuring all the necessary settings are correct.



General Information & Temperature Controller Unistat 905
208V
Unistat 905
460V
Temperature range -90 to 250 °C -90 to 250 °C
Temperature stability ±0.01 °C ±0.01
Temperature control TAC, self-optimizing (True Adaptive Control) TAC, self-optimizing (True Adaptive Control)
Display resolution 0.01 °C 0.01 °C
Alarm message optical, acoustical optical, acoustical
Controller Pilot ONE (E-grade “Professional”) Pilot ONE (E-grade “Professional”)
Safety class III / FL III / FL
Protection class IP20 IP20
Dimensions (W x D x H) 540 x 654 x 1738 mm | 21.26 x 25.75 x 68.43 inches 540 x 654 x 1500 mm | 21.26 x 25.75 x 59.06 inches
Weight 396 kg | 873.18 pounds 275 kg | 606.38 pounds


Heating / Cooling Capacity

Heating capacity 6 kW 6 kW
Cooling machine air-cooled air-cooled
Refrigerant 1. stage R452A (A1, H280) (2,5 kg) R452A (A1, H280) (2,5 kg)
Refrigerant 2. stage R23 (A1, H280) (0,75 kg) R23


Circulation Pump

Pressure pump max. 48 lpm ; 0.9 bar | 12.68 gpm ; 13.05 psi 10.57 gpm ; 13.05 psi
Pump connection M30x1,5 AG male M30x1,5 AG male
Permissible viscosity 50 mm²/s 50 mm²/s


Connections

Pt100 connection Pt100 Pt100
Analogue input via optional Com.G@te via optional Com.G@te
Analogue output via optional Com.G@te via optional Com.G@te
Digital interface RS232, Ethernet, USB Device, USB Host RS232, Ethernet, USB Device, USB Host


Operating Data

Old sku 1035.0013.01 1035.0014.01
Permissible ambient temp. 5…35 °C 5…35 °C
Filling volume min. 3.2 Liters | 0.85 gal 3.2 Liters | 0.85 gal
Volume of expansion 5.3 Liters | 1.4 gal 5.3 Liters | 1.4 gal
Power supply 208V 3~ 60Hz 460V 3~ 60Hz
Current max 40 A 23,5 A
