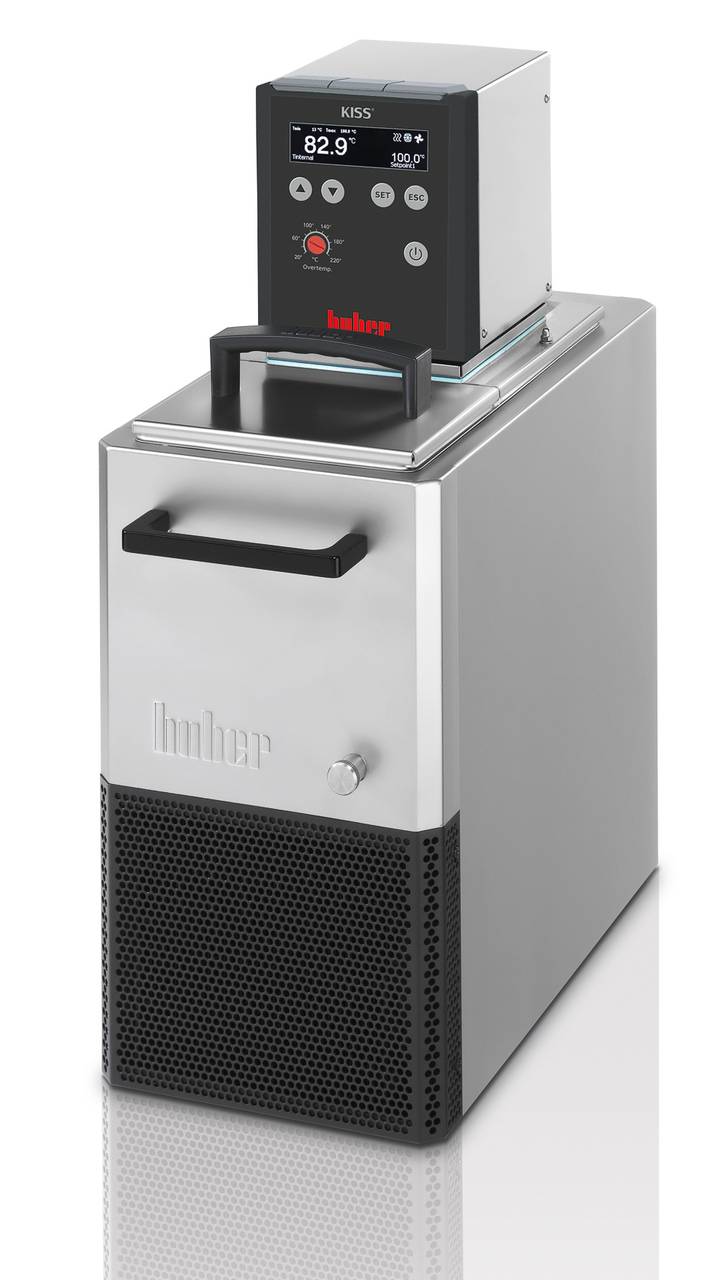

Huber KISS K6 4.5L -25 to 200°C Heater Chiller 110V 15A

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Lead time: This item ships from the manufacturer and can take 2-3 days to ship.

$7,320.00

SKU: KISS-K6 Category: Brand: ,
This item drop ships from the manufacturer and can have a 2-3 day lead time.
Cooling bath thermostats with insulated cooling baths are an economic solution for thermoregulation of objects directly in the thermostat bath. The units are therefore suitable for a number of typical heating and cooling tasks such as sample temperature control, materials testing, quality control, analyses, etc. Cooling circulator operates with natural refrigerants and are therefore offer an environmentally friendly solution to temperature control. In addition, cooling circulators are fitted with automatic refrigeration capacity adjustment, reducing energy consumption and waste heat down to the absolute essential. With low level protection and adjustable over heating protection the units fulfil the requirements of Safety Class III/FL according to DIN 12876. The thermostats can also be used for externally attached applications using the pump connections at the rear.
The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

KISS temperature controller
Bright, large OLED display
Simple operation with menu navigation
Simultaneous display of setpoint, Tmin, Tmax and actual temperature
Status displays for pump, cooling, and heating
Overtemperature and low-level protection
Safety class III/FL (DIN 12876)
USB and RS232 interfaces
AutoStart function for power failure
3 color versions available: grey (standard), blue, red
Natural refrigerant




Huber KISS K6 Specifications

General Information & Temperature Controller

Temperature Range

-25…200°C

Temperature Stability

±0.05 °C

Temperature Display

OLED Display

Alarm Message

Optical, Acoustical

Controller

KISS

Safety Class

III / FL

Protection Class

IP20

Dimensions (WxDxH)

8.27″ x 15.75″ x 21.5″

Weight

25 kg | 55.12lbs

Heating / Cooling Capacity

Heating Capacity

1,5 kW

Cooling Capacity

20

0

-10

-20

 °C



0,26

0,21

0,15

0,05

 kW

Cooling Machine

Air-Cooled

Refrigerant (ASHRAE, GHS)

R290 (A3, H220) (0,047 kg)

Circulation Pump

Pressure Pump Max.

14lpm; 0.25 bar | 3.7gpm; 3.62 psi

Suction Pump Max.

10.5lpm; 0.17 bar | 2.77gpm; 2.47 psi

Pump Connection

M16x1 AG Male

Connections

Digital Interface

USB, RS232

Operating Data

Permissible Ambient Temp.

5…40°C

Bath Opening WxD/BD

5.51″ x 4.72″ / 5.91″

Bath Volume

4.5 Liters | 1.19 gal

Power Supply

110-120V 1~ 50/60Hz

Current Max.

15 + 3,2 A
