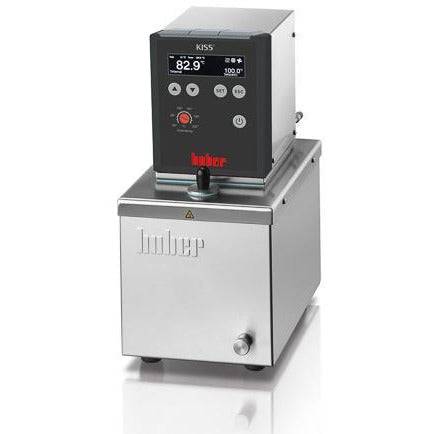

HUBER KISS 202C Heating Circulation

(Please Note: There is a 2 -3 weeks lead time)

Heating circulation thermostats are specially designed for temperature control of externally attached applications with a small volume. The units are fitted with bath tanks made of stainless steel or polycarbonate. The thermostats have M16x1 pump connections at the rear side as well as a stainless steel bath cover with a filling opening. All models are fitted with an overtemperature and low level protection system according to safety class III/FL (DIN 12876) for use with flammable fluids. A powerful circulation pump ensures optimal heat transfer to external attached applications.

The new KISS controller combines state-of-the-art technology with simple operation and stylish design. KISS models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

  • KISS temperature controller
  • Bright, large OLED display
  • Simple operation with menu navigation
  • Simultaneous display of setpoint, Tmin, Tmax and actual temperature
  • Status displays for pump, cooling and heating
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • USB and RS232 interfaces
  • Autostart function for power failure

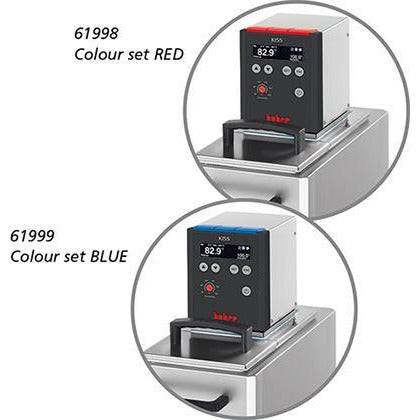

  • 3 colour versions available: grey (standard), blue, red



General Information & Temperature Controller
Temperature range (-30) 45…200 °C
Temperature stability ±0,05 °C
Temperature display OLED Display
Alarm message optical, acoustical
Controller KISS
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 178 x 260 x 355 mm | 7.01 x 10.24 x 13.98 inches
Weight 8 kg | 17.64 pounds
Heating / Cooling Capacity
Heating capacity 1 – 1,5 kW
Circulation Pump
Pressure pump max. 14 lpm ; 0.25 bar | 3.7 gpm ; 3.62 psi
Suction pump max. 10.5 lpm ; 0.17 bar | 2.77 gpm ; 2.47 psi
Pump connection M16x1 AG male
Connections
Digital interface USB, RS232
Operating Data
Old Sku 2039.0010.98
Permissible ambient temp. 5 to 40 °C
Bath opening WxD/BD Ø = 25 / 150 mm | Ø = 0.98 / 5.91 inches
Bath volume 2 Liters | 0.53 gal
Power supply 100-115V 1~ 50/60Hz
Current max 15 A
Fusing 15 A
