Huber CC-902 460V with Pilot ONE

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Category: Brand:

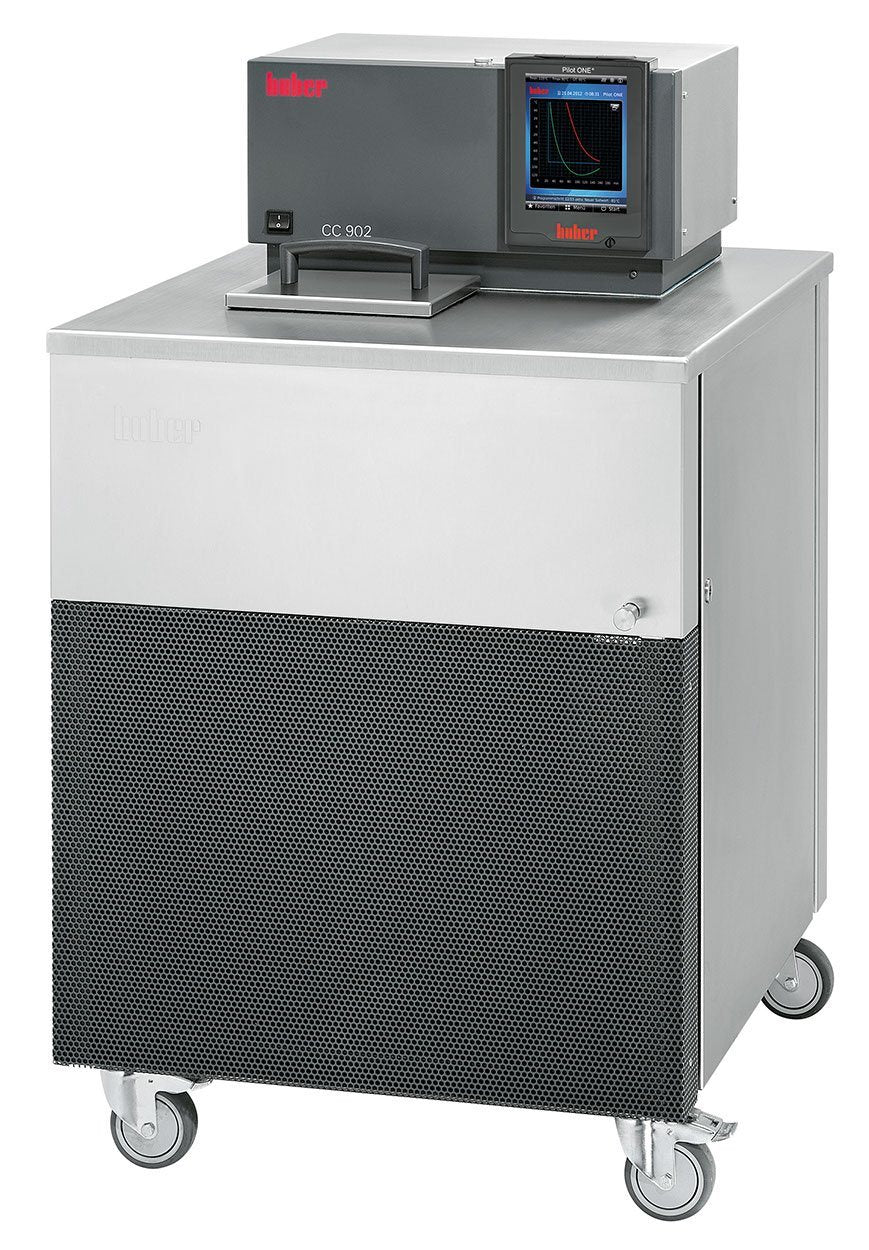

Huber CC-902 460V with Pilot ONE

(Please Note: There is up to 3 weeks Shipping lead time)

The Refrigeration Bath Circulators are created to control the temperature of externally connected. Applications are: photometers, refractometers, viscometers, double-jacketed reaction vessels and autoclaves. the units can be used, for determining the freezing point, for deep temperature calibration, for petroleum tests, for temperature control of measuring devices and experimental setups as well as for materials testing and quality control.

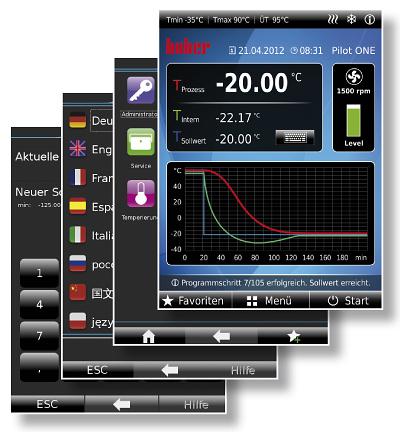

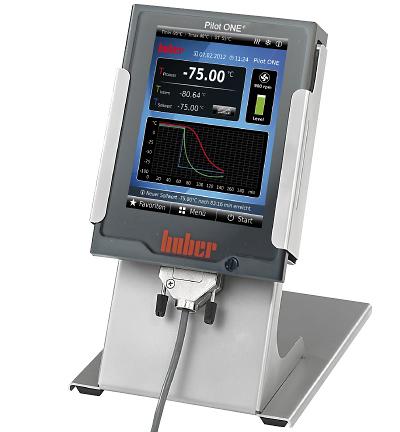

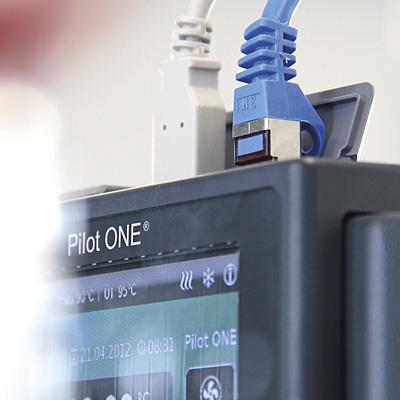

The new multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favourites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

  • Pilot ONE controller with Plug & Play technology
  • Precise temperature control
  • 5.7″ touchscreen and comfortable menu navigation
  • Overtemperature and low level protection
  • Safety class III/FL (DIN 12876)
  • Powerful pressure/suction pump
  • Programmer with calendar and clock functions
  • 2-point calibration
  • RS232 interface and Pt100 connection



General information & Temperature Controller
Temperature range -90…200 °C
Temperature stability ±0.02 °C ±0.02 °C
Controller Pilot ONE (E-grade “Basic”) Pilot ONE (E-grade “Basic”)
Safety class III / FL
Protection class IP20
Dimensions (W x D x H) 550 x 600 x 911 mm | 21.65 x 23.62 x 35.87 inches
Weight 151 kg | 332.96 pounds


Heating / Cooling Capacity

Heating capacity 1,8 kW
Cooling capacity 100 20 0 -20 -40 -60 -80 °C

1,2 1,2 1,2 1,1 0,9 0,6 0,2 kW

Cooling machine air-cooled
Refrigerant 1. stage R452A (A1, H280) (0,78 kg)
Refrigerant 2. stage R508B (A1, H280) (0,46 kg)


Circulation Pump

Pressure pump max. 25 lpm ; 0.7 bar | 6.6 gpm ; 101.5 psi
Suction pump max. 18.5 lpm ; 0.4 bar | 4.89 gpm ; 5.8 psi
Pump Connection M16x1 AG male
Permissible viscosity 50 mm²/s


Connections

Pt100 connection Pt100
Digital interface RS232, Ethernet, USB Device, USB Host


Operating Data

Permissible ambient temp. 5…40 °C
Bath opening W x D / BD 120 x 110 / 150 mm | 4.72 x 4.33 / 5.91 inches
Bath volume 5 Liters | 1.32 gal
Power supply 460V 3~ 60Hz
Current max. 7,5 A
