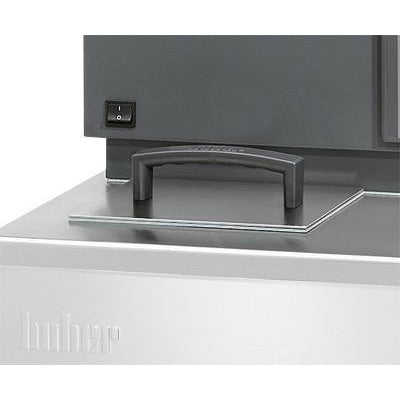

HUBER CC-505 Refrigerator Bath Circulator
(Please Note: There is up to 3 weeks Shipping lead time)
This Refrigeration Bath Circulator controls the temperature of externally connected applications and Thermoregulation of objects directly in the thermostat bath. Typical applications are: photometers, refractometers, viscometers, double-jacketed reaction vessels and autoclaves. The units can be used in laboratories, for determining the freezing point, for deep temperature calibration, for petroleum tests, for temperature control of measuring devices and experimental setups as well as for materials testing and quality control.
| General Information & Temperature Controller | |
|---|---|
| Temperature range | -55 to 200 °C |
| Temperature stability | ±0.02 °C |
| Temperature control | TAC, self-optimizing (True Adaptive Control) |
| Controller | Pilot ONE (E-grade “Basic”) |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 16.14 x 18.9 x 30.08 inches |
| Weight | 136.71 Lb |
|
Heating / Cooling Capacity |
|
| Heating capacity | 1,6 kW |
| Cooling machine | air-cooled |
| Refrigerant | R507 (13.22 Lb) |
|
Circulation Pump |
|
| Pressure pump max. | 6.6 gpm ; 10.15 psi |
| Suction pump max. | 4.89 gpm ; 5.8 psi |
| Pump connection | M16x1 AG male |
| Permissible viscosity | 50 mm²/s |
|
Connections |
|
| Pt100 connection | Pt100 |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
|
Operating Data |
|
| Old sku | 2018.0010.01 |
| Permissible ambient temp. | 5 to 40 °C |
| Bath opening WxD/BD | 4.72 x 4.33 / 5.91 inches |
| Bath volume | 5 Liters / 1.32 gal |
| Filling volume min. | 4 Liters / 1.06 gal |
| Power supply | 208V 2~ 60Hz |
| Current max. | 12,5 A |
| Fusing | 2×16 A |
