Huber CC-315B with Pilot ONE
(Please Call to order: Lead time may vary.)
Heating bath circulation thermostats with a stainless steel bath allow the temperature control of internal and external thermoregulation tasks. Items can be directly thermoregulated by placing them in a thermostat bath and the control of externally connected applications is also possible. The units are suitable for a number of typical temperature control tasks such as sample temperature control, materials testing, quality control, etc. The devices are fitted with overtemperature and low-level protection in line with Safety Class III/FL according to DIN 12876. A powerful pressure/suction pump ensures optimal circulation and temperature homogeneity in the thermostat bath and also allows temperature control of externally connected applications.

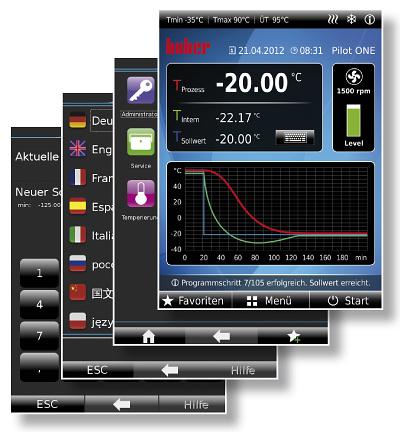

The new multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorites menu, the one-click operation, and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.
- Pilot ONE controller with Plug & Play technologyÂ
- Precise temperature control Â
- 5.7“ touchscreen and comfortable menu navigation
- Overtemperature and low level protection
- Safety class III/FL (DIN 12876)Â
- Powerful pressure/suction pump
- Programmer with calendar and clock functions
- 2-point calibration
- RS232 interface and Pt100 connection
| Common Specifications | |
|---|---|
| Temperature range | (-20) 28…300 °C |
| Temperature stability | ±0.02 °C |
| Temperature control | TAC, self-optimizing (True Adaptive Control) |
| Controller | Pilot ONE (E-grade “basic”) |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 13.19 x 15.04 x 17.05 inches |
| Weight | 48.51 pounds |
|
Heating / cooling capacity |
|
| Heating capacity | 3 – 3,5 kW |
|
Circulation pump |
|
| Pressure pump max. | 25 lpm : 0,7 bar | 6.6 gpm ; 10.15 psi |
| Suction pump max. | 18.5 lpm : 0,4 bar | bar 4.89 gpm ; 5.8 psi |
| Pump connection | M16x1 AG male |
| Permissible viscosity | 50 mm²/s |
|
Connections |
|
| Pt100 connection | Pt100 |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
|
Operating data |
|
| Permissible ambient temp. | 5…40 °C |
| Bath opening W x D / BD | 10.63 x 5.71 / 7.87 inches |
| Bath volume | 15 Liters | 3.96 gal |
| Filling volume min. | 11.5 Liters | 3.04 gal |
| Power supply | 200-240V 1~/2~ 50/60Hz |
| Current max. | 16 A |
| Fusing | 20 A |
