ENTEXS MAXI

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

The Midi is Entexs’ standard extraction system meant for processing upwards of 4500 lbs of biomass per day

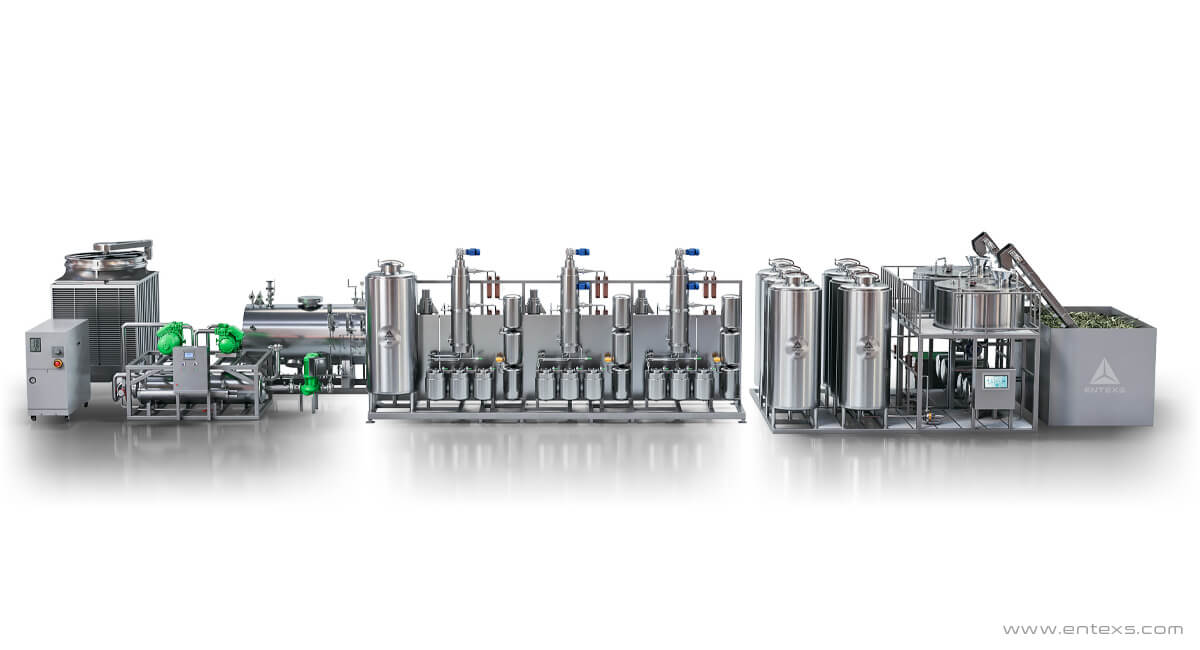

ENTEXS Extraction Systems: MAXI

The MAXI is a complete, turn-key, closed loop process. The cryo ethanol extraction system bypasses winterization and is capable of continuously processing biomass to true full-spectrum crude and / or distillate. The continuous feed carousel processes up to 20,000 lbs per day. The cascade chillers, and multi-stage wiped film evaporation go from bulk biomass to high quality crude without any operator intervention. This patent-pending system provides unmatched, truly automated hand-free technology.

ENTEXS - Complete Process
ENTEXS

Complete Process

Our systems are designed for optimization on each of your processes.

Process Features

Hands-Free Technology

Hands-free Technology

No touch process throughout the extraction process eliminates potential reduced efficiencies, compromised quality, increased labor and safety risks.​

Cloud Network

Cloud Network

From your phone or computer, real-time and trend monitoring of extraction process can be leveraged to optimize efficiency.​

No Winterization

No Winterization

Bypass this extensive and time-consuming step by controlling and maintaining solvent temperature during the extraction process below -50 °C.​

Closed Loop System

Closed Loop System

Solvent temperature control maintains precise extraction temperature. Combined with our automation, complete control over final product states can be configured and run.

Continuous feed

Continuous Feed

Load the system once per day instead of once every 10 minutes. Fully continuous from biomass input to final product.

Automated System

Fully Automated

User configured routines and flow control from biomass to full spectrum crude, distillate and/or isolate

SPECIFICATIONS

BATCH RATE

Continuous feed: 850 lbs an hour
Throughput capacity: 10,000 lbs per 12 hours
Runs continuously to achieve: 20,000 lbs in 24 hours
Cooling method: cascade chiller
Temperature range: -80° for extraction to +200° C for distillate production

ELECTRICAL SPECIFICATIONS

Voltage: 480 v – supply voltage
AMP requirement: 965 a – total system amp draw
Power: 770 kw total
Electrical ratings: class 1 div 2 – minimum electrical rating

MECHANICAL SPECIFICATIONS

Footprint: 20’ w x 50’ d (total system footprint)
Temperature rating: -80° to +200° C
Pressure rating: full vacuum to 100 psig Solvent holding volume: 1800 gallons
HMI interface screen size: 24 in
Controller: fpga based industrial controller with watchdog for control and process monitoring UL Listed Components

Production per Hour

+
850
lbs an hour
+
10000
lbs per 12h
+
20000
lbs per day
