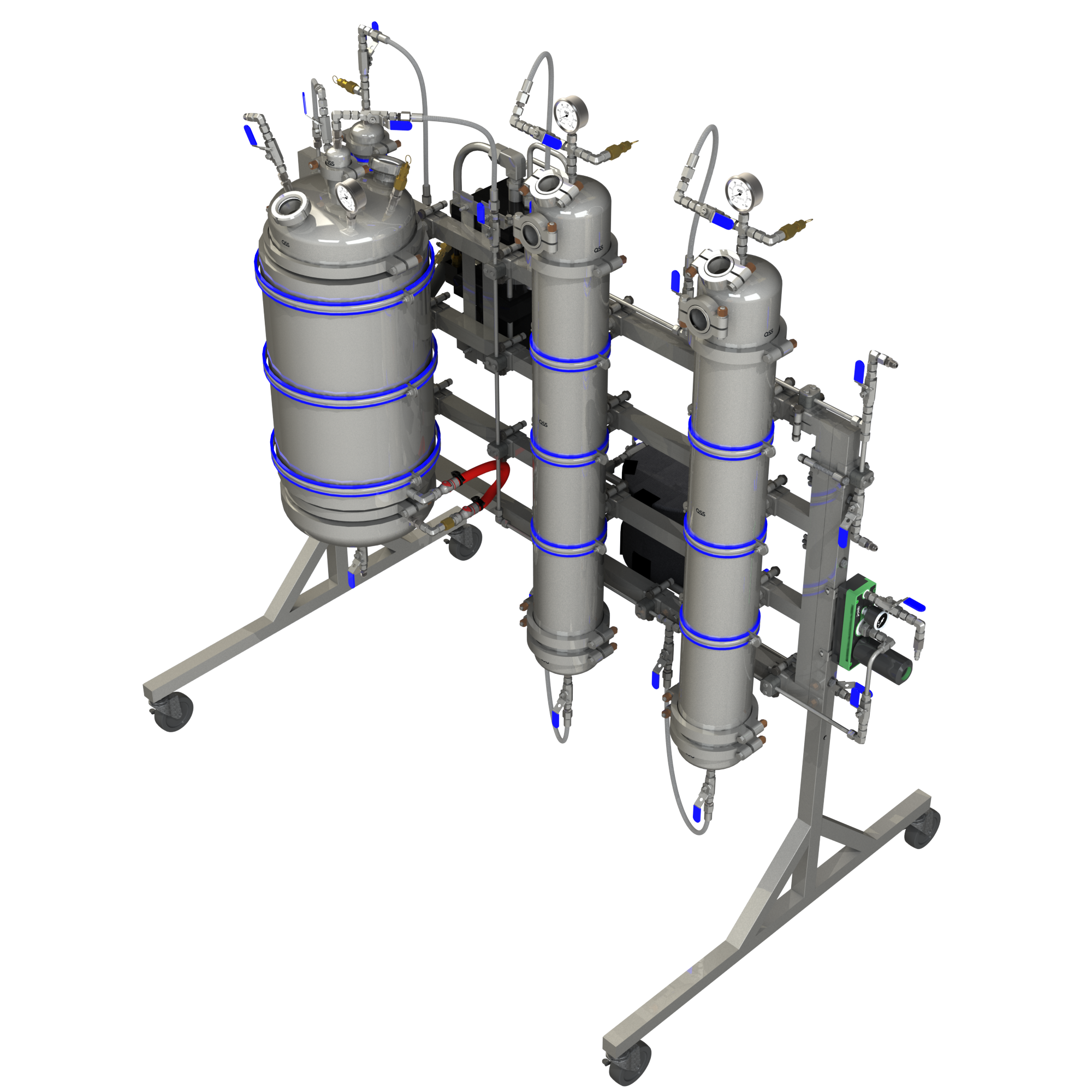

Open Source Steel E-1 Extractor – (15lbs)

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$19,810.72$19,941.22

SKU: N/A Category: Brand:


After 5+ years of evolved designs, we are proud to introduce our latest model of complete turn-key extraction solutions.



  • – 15lb Material Capacity
  • – 40L/50lbs Evaporator Vessel
  • Choice of 40L/50lbs or 80L/100lbs Stainless Steel Solvent Tank(not included)
  • Integrated liquid/gas injection manifold
  • 25-25um Inline Filtration
  • 1-3um Inline Filtration
  • Inline Desiccant Filter Dryer (removes moisture in your gas!)
  • Inline Sight Windows for Process Viewing (watch your complete extraction start to finish!)
  • – Compact Footprint: (LxWxH) 64x29x74

  • – OSS Counter Flow Coil Recovery Setup eliminating the need for dry ice when recovering your solvents!
  • – Haskel AGD 1.5 Recovery pump able to recover up to 1lb+ per min.***
  • Max Inlet Pressure (psi): 300
  • Min Inlet Pressure (psi): ATM
  • Outlet Pressure (psi): 300
  • Static Outlet Stall Pressure: 1.5 Pa+Ps
  • Piston Displacement per Cycle: 60 in / 983.2 mL
  • Gas Inlet/Outlet Connections: 3/4″ NPT / 1/2″ NPT
  • Weight: 44lbs
  • Air Drive Inlet: 1/2″ FNPT
  • Dimensions: (LxWxH) 18.83in x 15.82in x 9.38in


  • Pneumatic Venturi Vacuum Pump, eliminating the need for additional electrical in the extraction room, a perfect combo to your C1D1 space!
  • Deep vacuum levels to 28.1 -inHg.
  • Low-weight, configurable and modular design
  • Mounted directly to extraction frame for quick access!
  • Easy disassembly for maintenance.




  • 75 minute run time*.
  • – Process 60lbs+ of material in one 8 hour shift!**
  • – Eliminate dry ice on recovery
  • – Two Material Columns allowing for alternating load/wash cycles.
  • – Integrated manifold with -50c rated OSS Ball Valves

*All run times are based on 99.95% Iso-Butane.
**Run times do not include loading and unloading of material or cleanup time.
***Recovery times vary depending on the amount of available hydrocarbon vapors.
