Vacuum Pressure Gauges 0 To -30Hg

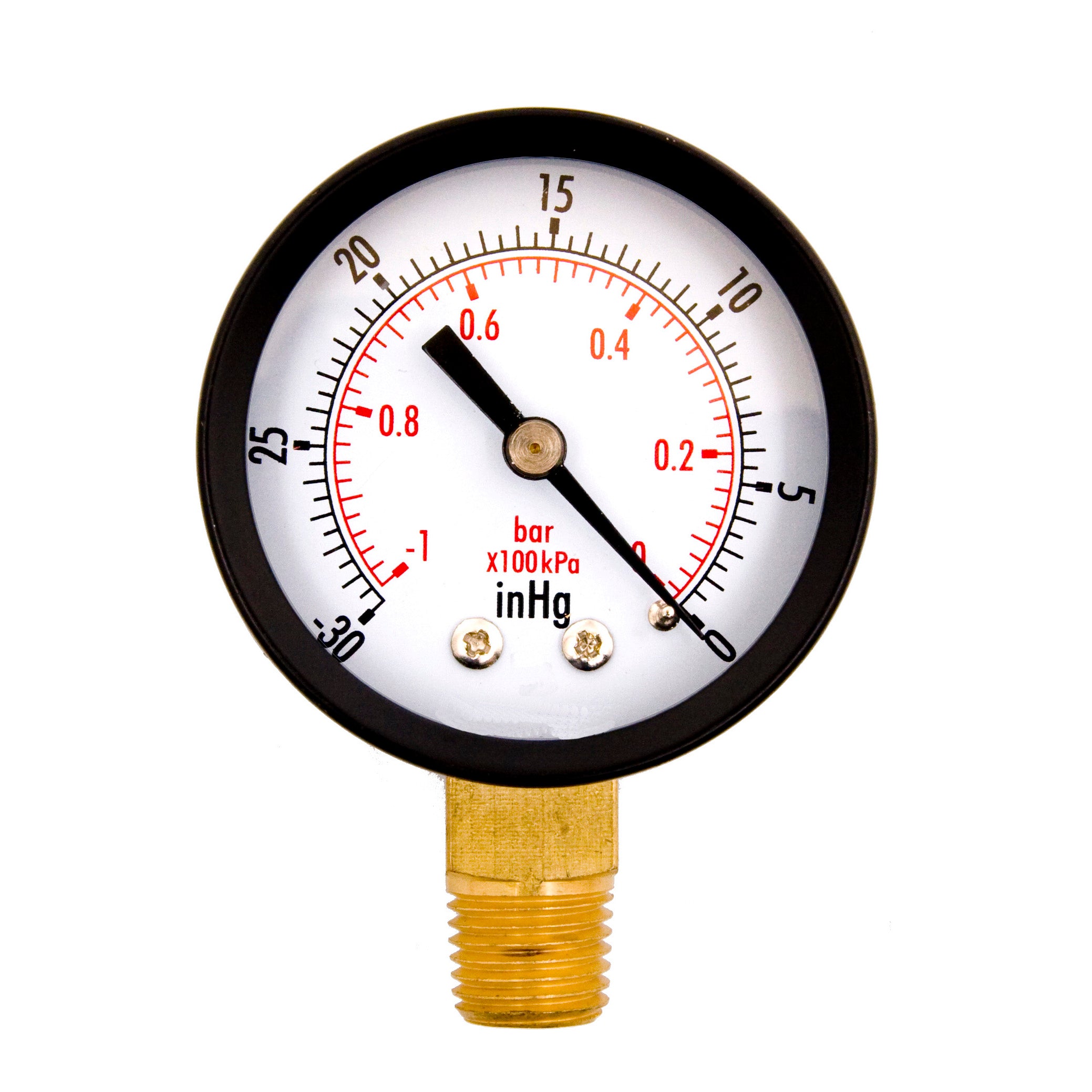

SKU: 15434/SIZE: Dry 2″ Dial – 1/4″ Npt
[MATERIAL]: Housing Material: Stainless Steel;
Connection: Copper Alloy;
Movement: Copper Alloy;
Bourdon Tube: Copper Alloy;
Window: Polycarbonate.
[SIZE]: Dial Size: 2″; Thread:1/4″ NPT.
[ACCURACY AND SCALE]: +/- 3% ; PSI and KPA.
[APPLICATION]: Brass wetted parts for measuring non corrosive liquid and gas pressure.
It is widely used in heating pipe network, oil and gas transmission, water supply and gas supply system, vehicle maintenance shop, etc.
Normal Ambient Temp.: -4F to +140F (-20C to +60C).
[HIGH PERFORMANCE]: Shock resistant,can be used in vibration places.

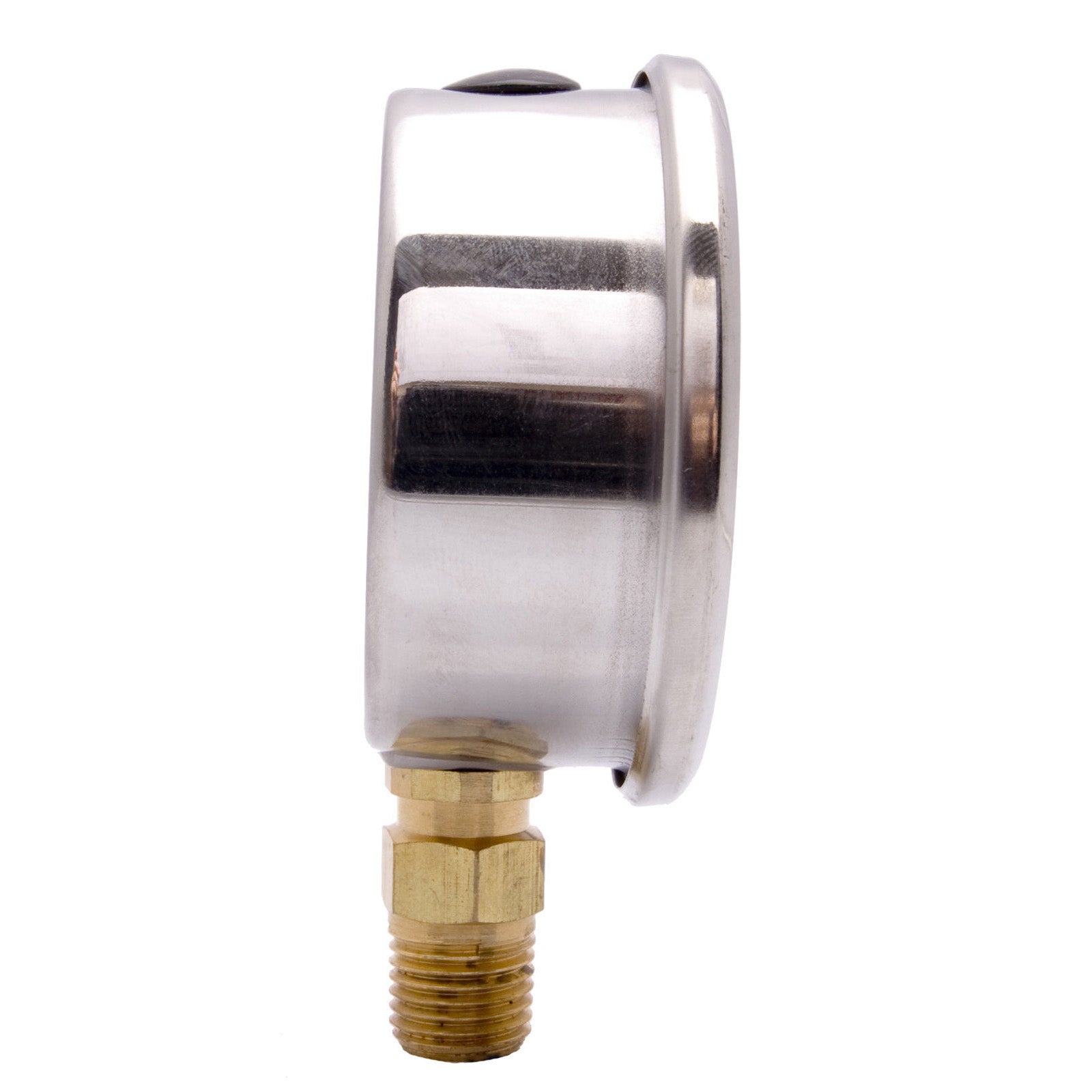

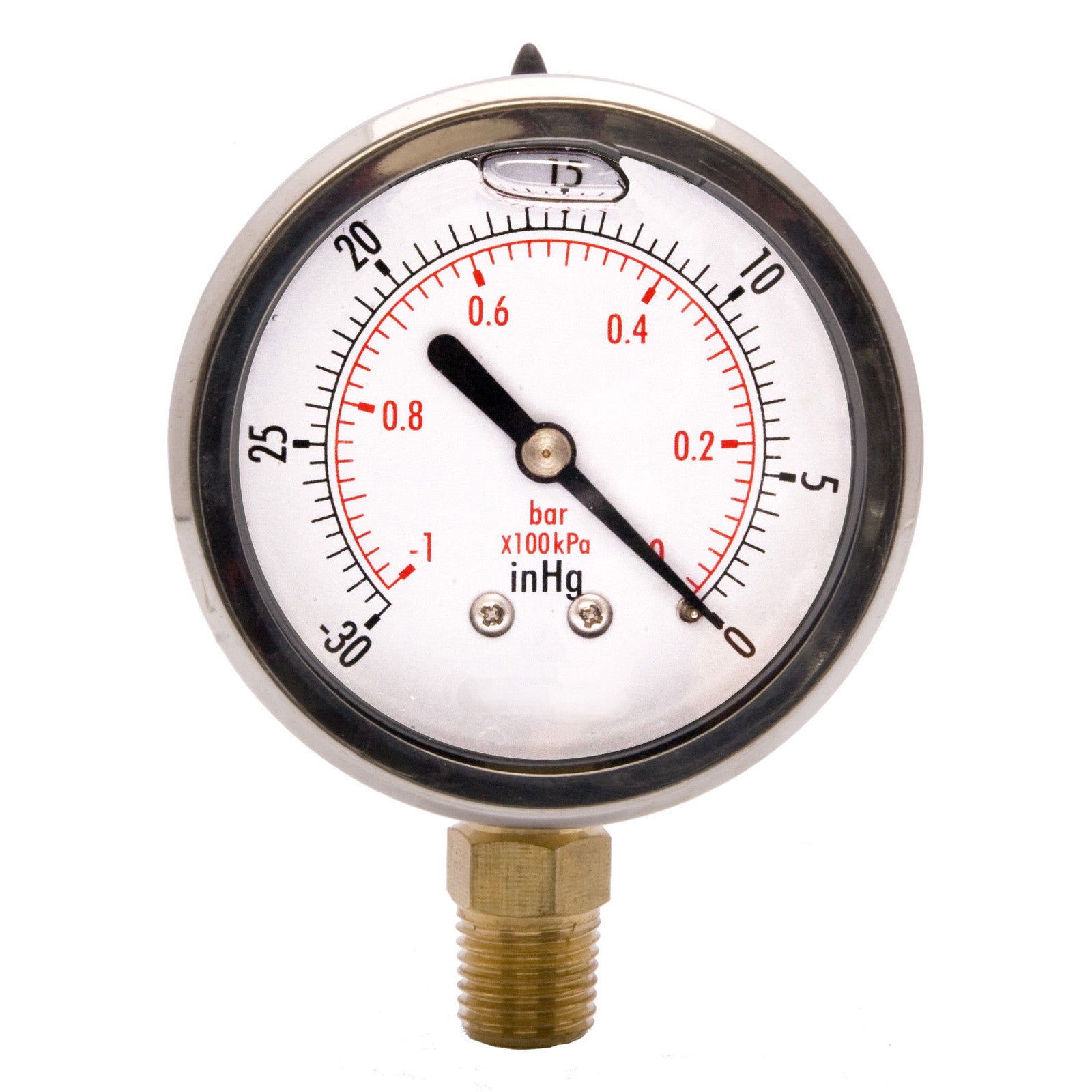

SKU: 15441/SIZE: Oil Filled 2.5″ Dial – 1/4″ NPT
[MATERIAL]: Housing Material: Stainless Steel;
Connection: Copper Alloy;
Movement: Copper Alloy;
Bourdon Tube: Copper Alloy;
Window: Polycarbonate.
[SIZE]: Dial Size: 2.5″; Thread:1/4″ MNPT
[ACCURACY AND SCALE]: +/- 3% ; PSI and Bar
[Liquid Filling]: Glycerin
[APPLICATION]: Normal Ambient Temp.: -4F to +140F (-20C to +60C)；
It is suitable for places with severe vibration, the damping liquid (glycerin) can resist the vibration of working environment and reduce the pulsating effect of medium pressure.

SKU: 15458/SIZE: Oil Filled 2″ Dial – 1/4″ NPT
[MATERIAL]: Housing Material: Stainless Steel;
Connection: Copper Alloy;
Movement: Copper Alloy;
Bourdon Tube: Copper Alloy;
Window: Polycarbonate.
[SIZE]: Dial Size: 2″; Thread:1/4″ MNPT
[ACCURACY AND SCALE]: +/- 3% ; PSI and Bar
[Liquid Filling]: Glycerin
[APPLICATION]: Normal Ambient Temp.:-4F to +140F (-20C to +60C)；
It is suitable for places with severe vibration，the damping liquid (glycerin) can resist the vibration of working environment and reduce the pulsating effect of medium pressure.
