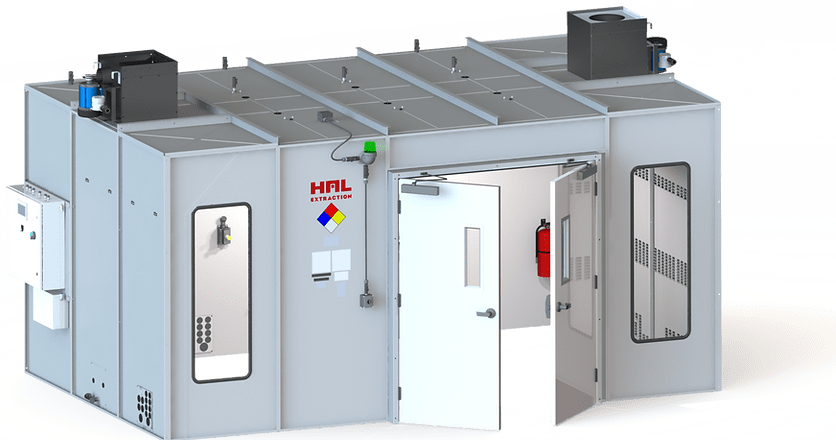

Classic Series: Model 150
Interior Square Feet: 150 Square Feet
Interior Dimensions: 9’9″ W x 15’5″ L x 8’2″ H
Exterior Dimensions: 10’0 W x 16’11” L x 8’5″ H
Configurations: CID1 & CID2
Available Extensions: Degassing Cabinet
Extensions: Height Extension Package
Classic Series Standard Package
-
8’2″ Interior Height
-
10’0″ Exterior Height
-
Base Air Flow Rate: 1000 CFM
-
Purge Air Flow Rate: 2000 CFM
-
Explosion-proof, Class I, Division 1, 2-tube Interior LED Light Fixtures
-
Fire-rated door and exit hardware
-
Extra-long life, flammable gas infrared sensor
-
Supply and Exhaust Ventilation Assemblies – Includes exhaust and supply fans built with explosion-proof construction and CID1 motor assembly
-
Exterior CID2 remote operator switch
-
Interior CID1 manual purge button
-
110W Uninterrupted Power Supply (UPS) – upgraded UPS options available to back up the entire booth system
-
Cross-capture ventilation
-
36” wide personnel door sealed by a rubber compression gasket
-
A fire-rated panic bar for emergency exiting
-
Professional engineer peer-reviewed design
-
UL Certification for C1D1 Booths
-
Exterior CID2 tri-color light alarm and exterior warning siren / Light alarm and siren set to go off at 10% and 25% of LEL, respectively
-
Fully compliant with applicable OSHA, NFPA, NEC regulations
-
Access Panel with Utility Penetration Plate to easily run heating, cooling, and air lines to approved extraction equipment located inside of the HAL Booth
Configurations
Classic Series CID1 Booths
HAL Extraction Class 1, Division 1 Extraction Booths are designed for use with class IA flammable liquids in hydrocarbon extraction methods.
Classic Series CID2 Booths
HAL Extraction Class 1, Division 2 Extraction Booths are designed for use with class IB flammable liquids in ethanol extraction methods.
Degassing Cabinet Extension
HAL’s Degassing Cabinet is an independent space that works in conjunction with the HAL Extraction Booth during the plant oil extraction process.
It was created to safely off-gas used plant material still wet with solvents in a contained area, without compromising the safety of your CID1 space.
Height Extension Package
-
Double tall panel configuration
-
Added frame
-
Added floor anchoring structure
-
Different plenum outlet configuration
-
16’4″ interior height
-
Available for Classic Series Models 150, 180, & 215 in CID1 or CID2 configurations
Compliance
HAL Extraction Product Lines Achieves PSI Technical Report Certification in 50 States
HAL Extraction Booths and Hoods have been peer-reviewed by Pressure Safety Inspectors (PSI)
UL-CERTIFIED
PEER-REVIEWED
The First UL-Certified Extraction Booth for plant oil extraction in hazardous and ordinary locations.
The use of flammable and pressurized solvents can create dangerous conditions for workers and buildings. HAL Extraction has worked with Underwriters Laboratories (UL) to develop and certify the first equipment for use in the plant oil extraction industry.
