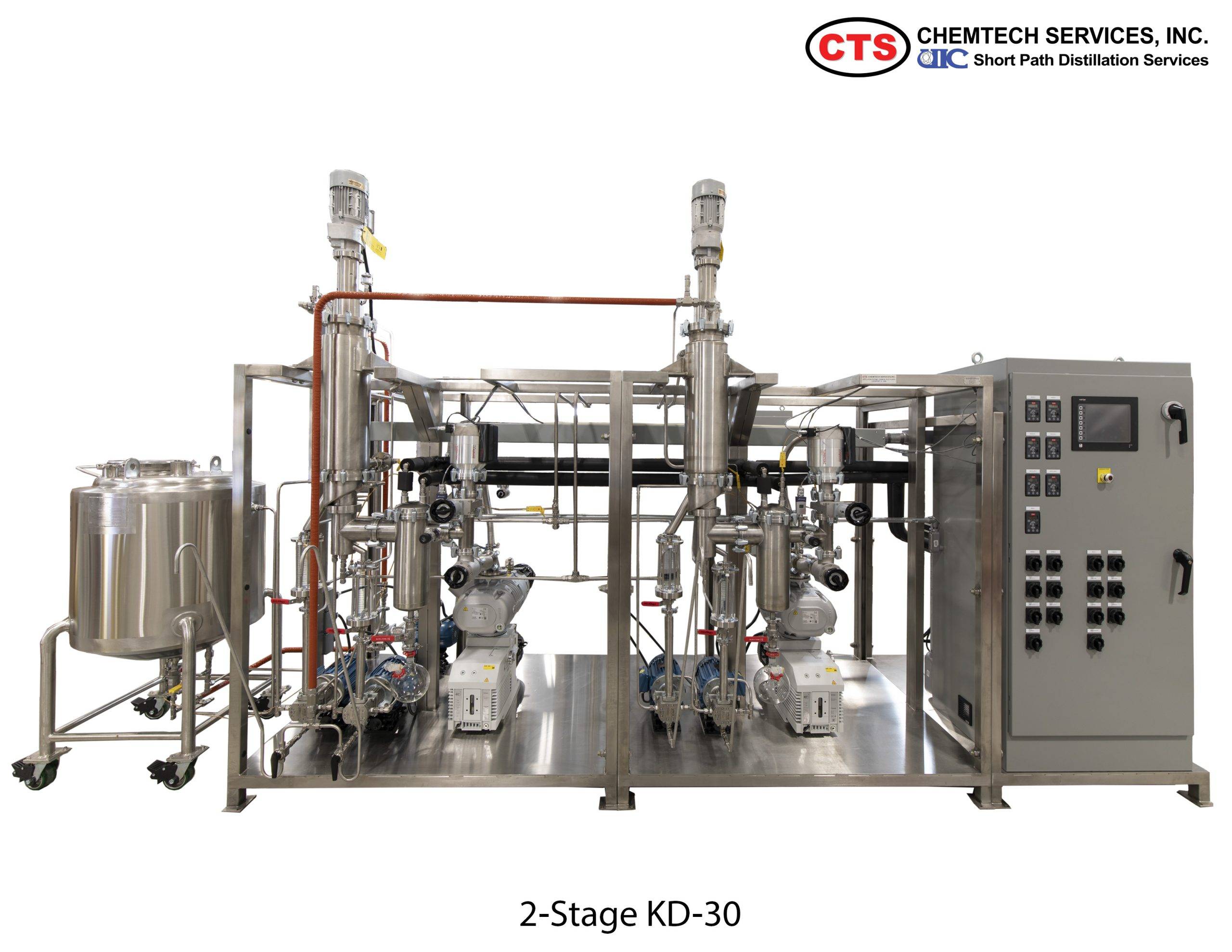

Chemtech 2 Stage KD-30 Short Path Distillation Unit

Description

SUPPORT FRAME SYSTEM

• 304ss Frame
• Dimensions: 376″L 54″W 112″H

FEED SYSTEM

• 200 Liter Hot Oil Heated Feed Tank
• Gear Pump Feed Metering System
• Hot Oil Traced Feed Line
• Hot Oil Traced Transfer Line

EVAPORATOR

• 316 Stainless Steel
• 0.30 Sq. Meter Surface Area
• Estimated Process Rate 20.00 liter/hour*

CIRCULATORS

• Feed Circulator 12kW; 25-250°C
• Two Evaporator Circulators 24kW; 25-250°C
• Residue Circulator 12 kW; 25-250°
• Two Condenser Circulators 6kW Heat/9.6kW Cool; 0-120°C
• Cold Trap Circulator 0.6kW Cool; -75 to -30°C

SAMPLE COLLECTION

• Hot Oil Heated Gear Pumps
• Two 2L Cold Trap Receiving Flasks

VACUUM SYSTEM

• Two Backing Rotary Vane Pumps 65 M3/hour
• Two Roots Blowers
• Two Turbomolecular Pumps 350 L/sec​​​

CONTROL SYSTEM

• UL 508 Rated Electrical Control Cabinet
• PLC System Optional

MISCELLANEOUS

• Installation and Training Included
• GMP Compliance Documentation Available

2-Stage KD-30 Data Sheet
