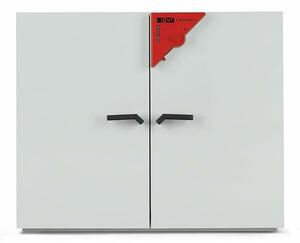

BINDER BD Series Standard Classic Incubators with Gravity Convection
The BINDER Series BD Classic Line Standard Incubators with Gravity Convection are powerful and reliable units for many applications. These units have exceptional efficiency and temperature accuracy to meet growth and incubation requirements. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.
$2,088.41 – $5,904.04
Options Detail
Description | Capacity | Includes | Model # |
---|---|---|---|
0.7 Cu. Ft. Standard Classic Incubator, 230V | 0.7 Cu. Ft. | Gravity Convection | BD023-230V |
0.7 Cu. Ft. Standard Classic Incubator, 120V | 0.7 Cu. Ft. | Gravity Convection | BD023UL-120V |
14.1 Cu. Ft. Standard Classic Incubator, 230V | 14.1 Cu. Ft. | Gravity Convection | BD400-230V |
14.1 Cu. Ft. Standard Classic Incubator, 120V | 14.1 Cu. Ft. | Gravity Convection | BD400UL-120V |
Description
The BINDER Series BD Classic Line Standard Incubators with Gravity Convection are the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.
Benefits:
- Safe and reproducible incubation even under high batch throughputs in long-term operation
- Stable atmosphere by inner glass door
- 100 C disinfection routine
Important Characteristics:
- Temperature range: ambient temperature plus 5C to 100C
- High temperature accuracy thanks to APT.lin technology
- Gravity convection
- Adjustable exhaust air flap
- Controller with timer functions
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Units up to 115 liters are stackable
- Class 3.1 independent temperature safety device (DIN 12880) with visual temperature alarm
- Computer interface: RS 422
Specification
SKU | Temperature Range | Temperature Fluctuation | Temperature Variation | Warm Up Time |
---|---|---|---|---|
9010-0187 | 100C 5C | 0.2 at 37C | 0.5 at 37C | 59 min to 37C |
9010-0189 | 100C 5C | 0.2 at 37C | 0.5 at 37C | 59 min to 37C |
9010-0073 | 100C 5C | 0.1 at 37C | 0.5 at 37C | 120 min to 37C |
9010-0176 | 100C 5C | 0.1 at 37C | 0.5 at 37C | 120 min to 37C |
Additional Info

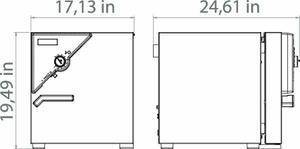

SKU | # of Shelves | Door Recovery Time | Depth | Height | Width | Power Requirement |
---|---|---|---|---|---|---|
9010-0187 | 2 std./4 max. | 20.49 in | 19.5 in | 17.14 in | 230 V, 50/60 Hz | |
9010-0189 | 2 std./4 max. | 20.49 in | 19.5 in | 17.14 in | 120 V, 50/60 Hz | |
9010-0073 | 2 std./9 max. | 30.14 in | 40.4 in | 48.7 in | 230 V, 50/60 Hz | |
9010-0176 | 2 std./9 max. | 30.14 in | 40.4 in | 48.7 in | 120 V, 50/60 Hz |
