Beaker & Wrench 2GPM Ethanol Recovery Pump for Vacuum

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

The Explosion Proof Push Button Switch Cover has been designed for use with the Explosion Proof Start/Stop Switch. This cover is comprised of a durable aluminum face plate, as well as, both start/stop switches.

$6,000.00$7,200.00

SKU: N/A Category: Brand:

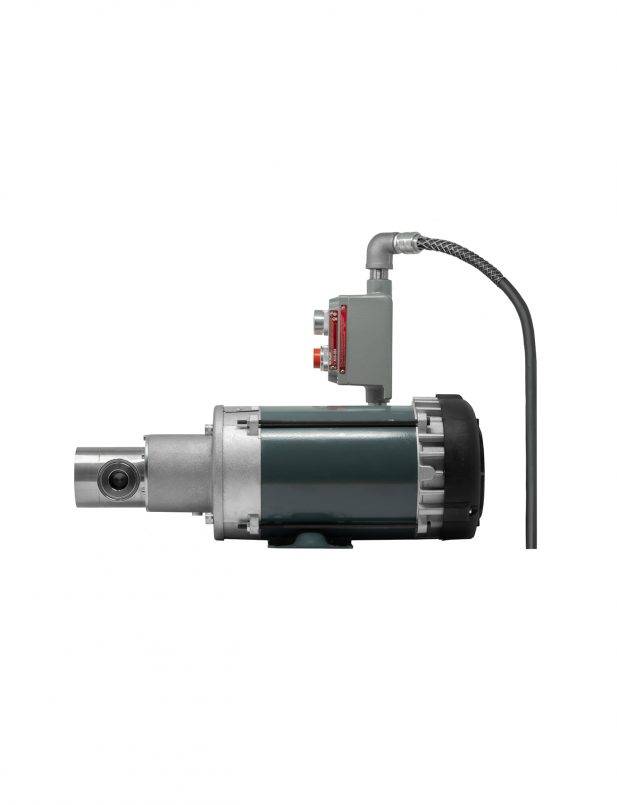

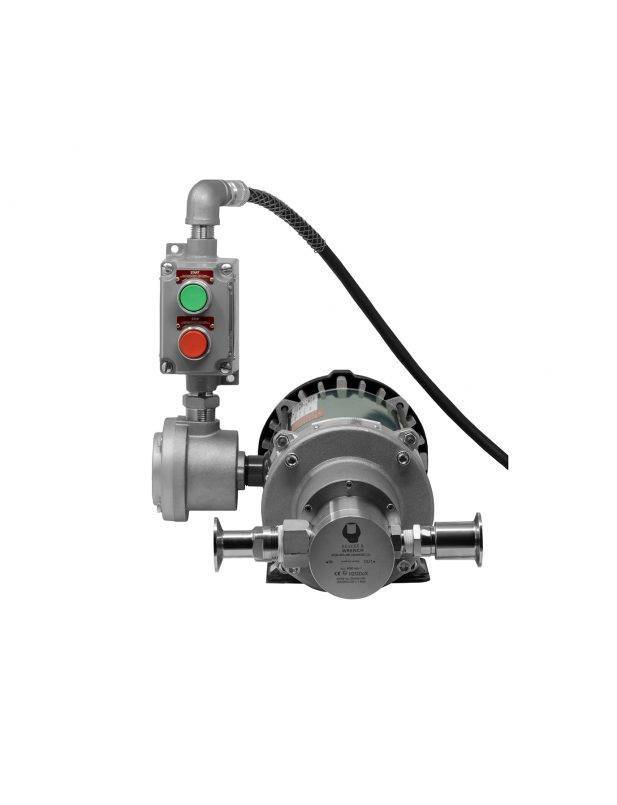

The 2GPM Solvent Recovery Pump is a magnetically coupled pump with peek gears for low viscosity (ie solvent compatibility). A magnetic drive coupling eliminates the shaft seal, increasing vacuum potential.

No more down time while you remove solvent!

This pump works great with Rotovaps or Falling Film Evaporators.



Product Details:

  • All components are UL listed
  • Motor & on/off switch are C1D2 Explosion Proof
  • 2 Gallons per minute Fixed Speed or a Variable Frequency Drive
  • 1.5” Tri-Clamp ports (attach your own hosing)

Note: VFD option is NOT C1D2 rated, and must be located in a safe area.



Spec sheet

PUMP FOR ETHANOL 2 GPM

1. Assuming the equivalent of 15″ Hg. Inlet Condition or 508 mbara

2. Assuming a fluid viscosity of 1.32 mPas or 1.32 cP

3. Assuming a 10 PSI Discharge Pressure or less



ESTIMATED PUMP SPEED: 1735 RPM

MISC STAINLESS STEEL MAG-DRIVE PUMP

4030-450-ZK-NEMA56C



PUMP DETAILS:

ROTATION: CCW FACING FLANGE END

DISPLACEMENT: 4.5CC/REV

PORTS: 1/2″ BSP(FEMALE)-SIDE LOCATION

MAX INLET PRESSURE: 89 BAR

OP TEMP RANGE: -20°C-130°C



MATERIALS:

PUMP BODY: 316L STAINLESS STEEL

GEARS & BUSHINGS: PEEK MOD.

SHAFTS: 316Ti STAINLESS STEEL

STATIC ORINGS: PTFE

MAG COUPLING: MAX 2.0 Nm, Sm2Co17

ENCAPSULATED IN 316L STAINLESS

*INCLUDES: BELLHOUSING AND MOTOR HUB TO

MOUNT NEMA 56C MOTOR FRAME

MOTOR 3/4 HP, 1750 RPM, 56 C FRAME

EXPLOSION PROOF, INVERTER DUTY

CLASS I, GROUP D: CLASS II

BAL/IDXM7010



Pump certifications: UL Listed for Hazardous Locations

OSHA Class: C1DII

ON OFF SWITCH



C1D1 Explosion Proof Momentary Push Button Switch Ratings/Approvals
Listing: United States Listed for United States
Dimensions: 5.1″-L x 5.875″-W x 5.25″-H Class I, Divisions 1 & 2, Groups B, C, D
Weight: 5 lbs Class II, Division 1, Groups E,F,G
Voltage Rating: 600 Volts Max Class II, Division 2, Groups F & G
Current Rating: 10 Amps Max @ 600V Class III, Divisions 1 & 2
Switch Type: Momentary Push Button NEMA 3
No. of Switches: 2 NEMA 7, Groups C, D
Switch Labels: Start / Stop NEMA 9, Groups E, F, G
Materials: Box: Malleable Iron / Switch Cover: Cast Copper Free Aluminum Alloy
Insulation: Integral Bushings in Conductor Openings
Mounting: External Mounting Lugs on Body
Configuration: Feed Thru / Dead End
Hub: 3/4″ NPT



VFD OPTION SPECIFICATIONS (ONLY FOR VFD OPTION)



Explosion Proof Variable Frequency Device Features/Ratings
Unit Type: 1 Phase Input/3 Phase Output Delta, 3 Wire Variable Frequency Device Class I, Divisions 1&2 Groups B,C,D
Dimensions: 13.25″ x 17.25″ x 8.70″ Class I, Zones 1&2 Groups IIB+H2,IIA
Weight: 52 lbs Class II, Divisions 1&2 Groups E,F,G
Input Voltage: 1 Phase 220-240V AC Class III
Output Voltage: 3 Phase 220-240V AC Type 3, 4, 4X
Output Current: 4.7 Amps CENELEC/ATEX/IEC Ex
Operating Frequency: 0 to 400 Hz Ex d IIB + H2 T5 or T6
Kilowatts: 0.75kw Ex tD A21 IP66
HP: 1 Tamb = + 60°C
Speed Regulation: 1:100 1 Phase Input/3 Phase Output Delta, 3-Wire Configuration
Speed Control Accuracy: =±0.5% of rating synchronous speed Automatic Energy Save Running
Frequency Resolution: Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz Automatic Current Limiting
Frequency Precision: Digital setting: 0.01% max, Analog Setting: Max frequency X 0.2% max Automatic Voltage Regulation
Torque boost: Automatic torque boost; manual torque boost: 0.1%~30.0% LED Display
Communication Terminal: RS485 communication interface
Control Mode: V/F Control; Sensorless Vector Control
Overload Capacity: 150% @ 60s, 180% @ 3s
Operating Temp: –10°C to +40°C
Max Operating Humidity: 95% (Non Condensing) Special Orders- Requirements
Materials: Copper-free Aluminum, Stainless Steel (Hardware) Contact us for special requirements
Finish: Aluminum Lacquer Paint Finish
Mounting: Surface
Hubs: –
Color: Grey



COVER FOR ON/OFF SWITCH

Specification: Beaker & Wrench 2GPM Ethanol Recovery Pump for Vacuum

Options

2 GPM Ethanol Recovery Pump [VFD] [1.5in Tri-Clamp], 2 GPM Ethanol Recovery Pump – No VFD
