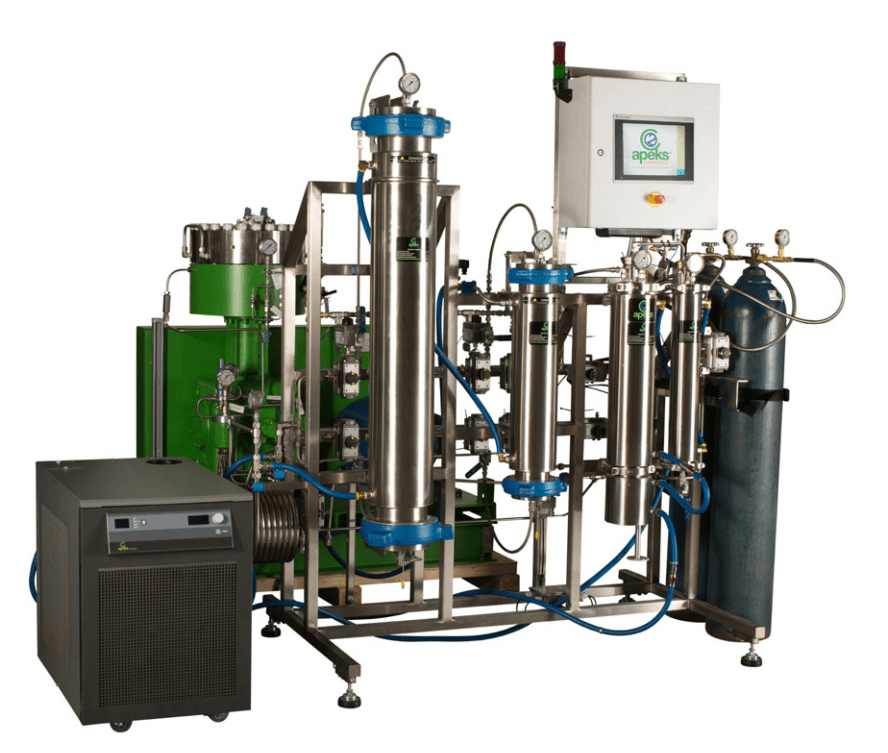

Apeks Supercritical The Transformer®

The Transformer® models are equipped with the Apeks Diaphragm Compressor Technology which allows for cold separation to preserve volatile oils ensuring high-quality extractions. The energy-efficient, low maintenance Diaphragm Compressor gas pump increases processing efficiency — 20 to 50% faster extractions — while consuming just half the power!

Ideal for mid to high-volume production operations or areas where limited electrical power is available:

Uses 230V single-phase power or 3-phase 230v, 208v, 460v.

System Highlights

• Processes approximately 25-31 pounds of dried, ground product in a 24 hour period
• 5L, 5Lx5L. 20L, 20Lx20L, and 5Lx20L vessel combinations available.
• Fully automated
• Closed loop system recovers 95% of the CO2.
• Energy-efficient with cold separation processing and less maintenance with Diaphragm Compressor Technology.
• Faster extractions.
• Valveless Expansion Technology.
• Quiet.
• Multiple power options.
• Our Industrial Control Panels are UL Listed!

System Specifications

Extraction Vessel

• Volume – 40L vessel holds around 20 pounds of dry, ground material
• Pressure – maximum pressure = 2000 psi (137 bar)
• Temperature – max 160°F (71°C)
• Materials – 304 stainless steel. Vessel interior is polished to food grade level.
• Closures – Hammer Union (commonly used in oil and gas industry for temporary piping), top with integral hinge
• Sealing mechanism – spring energized cup seal
• Filter – integral filters on closure heads. 20 micron.
• Temperature measurement – internal K type thermocouple senses actual extraction temperature
• Safety – non-isolable spring loaded safety relief valve prevents accidental over-pressurization

CO2 Recirculation Pump

• Electric motor driven diaphragm compressor
• Flowrate – 1.0-2.1 kg/min
• Construction – hydraulically actuated diaphragm
• Materials – all wetted parts are 316 stainless steel
• Safety – non-isolable spring loaded safety relief valve prevents accidental over-pressurization

Separators

• 1 separator bank on each unit
• Pressure – Maximum pressure = 600 psi (41 bar)
• Temperature – max160°F (71°C)
• Materials – 304 stainless steel
• Closures – FDA sanitary style bolted
• Sealing mechanism – sanitary gasket, cured silicone
• Safety – non-isolable spring loaded safety relief valve prevents accidental over-pressurization

Separation Mechanism

• Valveless Expansion Technology (VET) – flow path from extractor to 1st separator is continuous diameter with no constrictions. Separation occurs in 1st separator utilizing centrifugal separation and depressurization.

Heat Exchangers

• Construction – tube in tube style
• Materials – 304 stainless steel
• Cooling/Heating media – water

Chiller/Heater

• Recirculating chiller/heater
• Temperature range: -10°C to 50°C (14°F to 158°F)
• System operational range: 60°F-140°F

Control System

• Functions – Fully automatic Programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature and time. Also has built in hour and maintenance timers, and alarm log.
• Safety – pressure transducers monitor system pressure and shut down system to prevent accidental over-pressurization
• Data acquisition
• Push alerts for system messaging
• UL 508A Listed

Performance

• Fractional extraction and cold separation processes preserve volatile oils/terpenes.
• Cold separation processing with Diaphragm Compressor Technology.
• Regenerative heat exchanger allows cold separation, preventing thermal degradation, while conserving energy.

Engineering

• 95% CO₂ gas recovery, closed loop systems.
• Engineered performance with up to 44% electrical energy savings over the competition.
• No decompression valves, no clogging of product with patented Valveless Expansion Technology.

User Friendly

• Open frame design and visual indication of valve positions allow for easy assessment of flow paths and configuration.
• Online parts store
• Fully automated, energy efficient system.

Safety

• Control panels are UL 508A Listed.
• Manufactured in our 30,000 square foot
• ASME certified facility in Johnstown, Ohio.
• EPR (Engineer Peer Review) in 14 states.
