Ai 100L Glass Reactor Crystallization and Isolation Package

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Crystallization and isolation package. Includes Ai 100L reactor, Huber Unistat 510, ULVAC 6CFM diaphragm pump, adapters, tubing and fluid. ETL available.

$66,030.00

SKU: 1266 Category: Brand:

Ai R-series single/dual jacketed glass reactors are designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.

Features

  • ETL tested to UL and CSA standards (optional)
  • Now includes a FREE high quality thermo insulation jacket (a $779 value) with open/close viewing window and top/bottom adjustable drawstrings, specially designed and made for Ai glass jacketed reactors. These jackets will extend chiller life, allow you to go down to a lower temperature, and also cut your utility bill.
  • Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
  • All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
  • Adjustable stirring rate provides great torque or high speed.
  • Patented PTFE stirring rod bearing for reliable and quiet operation.
  • Optional multi-layer stirring blades for optimal reaction results.
  • Wide range of temperature operations, from -110°F to 400°F.
  • Large condenser cooling surface for exceptional condensation performance.
  • Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
  • Easily visual operation with digital speed and temperature displays.
  • Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)
  • One year warranty and lifetime US-based parts, service, and support.

Your safety is important to us! Please use caution when operating. Users of glass reaction equipment must take all necessary precautions to avoid contact with rotating parts, particularly entanglement of loose clothing, hair, necklaces, or other jewelry. Under these circumstances, the winding action of the rotating parts can draw the user(s) into the apparatus, resulting in breakage of glassware, burns, and/or chemical exposure. Extra caution must also be taken when operating with air-reactive materials, especially under vacuum. A leak can draw air into the apparatus and cause a violent reaction to occur.

Specifications



 Model  R100
 Electrical requirements
 110V 60Hz or 220V 50/60Hz, 1-Phase, 250W
 Reaction glass vessel capacity
 26 gallons (100L)
 Cooling/heating jacket capacity
 8 gallons (30L)
 Glass material  High borosilicate glass 3.3
 Rotation controller  Digital controller with variable frequency drive
Rotation speed: 50 to 500 rpm
 Maximum jacket pressure
 4.4 psi or 0.03 MPa
 Drain valve  Flush seal design with large opening and flat flange clamp
 Agitator  Style: impeller
Material: 304 stainless steel with PTFE liner
 Funnel  Pressure equalizing
 Vacuum gauge  Mechanical
 Swivel caster  Four
 Glass vessel temperature range
 -110°F to 400°F
 Vacuum level  < 700 torrs
 Vacuum sealing  Glass or PTFE
 Drain port ground clearance
 13.5 inches
 Unit dimesions (WxDxH)  28 x 42 x 95″
 Shipping dimensions  26 x 88 x 45″
 Shipping weight  460 Lbs
 Download  Product brochure
 Compliance  ETL tested to UL and CSA standards










R100-Unistat510-UDP6 Standard package with all optional parts

 Part description
 Quantity
Part image
 Huber Unistat 510 -50C to +250C system 1 set
 Huber adapters, tubing and fluid
6479 x 4    DW Therm (-90C to 200C) 10L
6461 x 2    90° Adaptor M30x1,5 f – M30x1,5 m
6427 x 2    2m (-100 to 350) tubing
6456 x 2    M30x1.5 m – 3/4″ NPT
1 set
 ULVAC UDP 6 CFM 6 Torr diaphragm pump 1 set
 KF25 to 3/8″ adatper 1 pc
 White premium food grade silicone vacuum tubing  10 ft
 Glass 3/8″ tee adatper 1 pc
 Jacketed glass vessel, lid, clamps and heavy duty stainless steel stand with casters (shipped pre-assembled)
1 set
 Glass vessel insulation jacket with openable viewing window 1 pc
 Vertical condenser with dual cooling coils, 2 chilling fluid ports and 1 vacuum port, glass
1 pc
 Glass condenser dispenser with drain port and PTFE open/close valve
1 set
 Glass feeding funnel with PTFE open/close valve
1 set
 Glass receiving flask with PTFE open/close valve 1 set
 1″ glass drain port with PTFE open/close valve
1 set

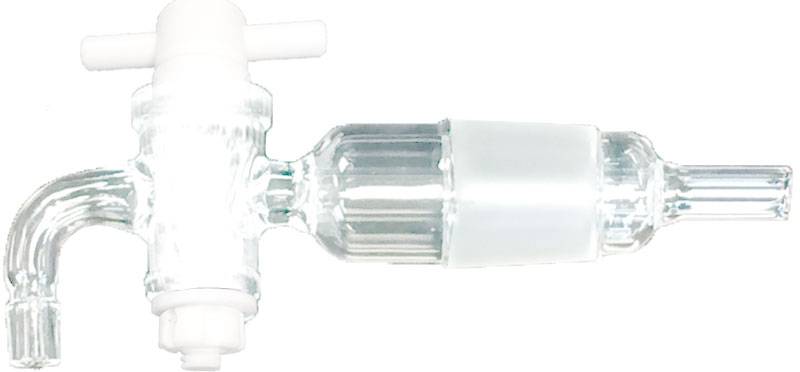

 Glass vacuum valve
6 sets
 Stirring motor controller with material temperature display
1 pc
 Stirring motor and motor support
1 set
 Mechanical vacuum gauge with two 3/8″ hose barb ports
1 pc
 Temperature probe with PTFE seal
1 pc
 PTFE stirring blades, stainless steel rod with PTFE liner
1 pc
 Insulated hose with drain port & open/close valve x 2
Stainless steel hose barb adapter x 2
4 pcs

 PTFE sealing tape 1 pc
 PTFE stirring rod positioner/bearing kit
1 set
 Condenser dispenser connection kit 1 set
 Large opening material feeding port kit 1 set
 Bottom drain port sealing clamp  1 set
 Rubber-wrapped condenser dispenser support and condenser bracket 3 pcs
 Chilling fluid connector x 2, vacuum connector x 1
3 sets
 Allen key and backup inner hex screws 1 set
 User’s manual 1 pc



Specification: Ai 100L Glass Reactor Crystallization and Isolation Package

UL, CSA, CE certification

No thanks (no extra charge),ETL tested to UL/CSA standards

Reactor vessel

Single jacketed, non-filtered,Single jacketed, with filter assembly,Dual jacketed, non-filtered

Cold trap

No cold trap (no charge),Ai UL/CSA 110V T40 -40°C cold trap,Ai UL/CSA 220V T40 -40°C cold trap
