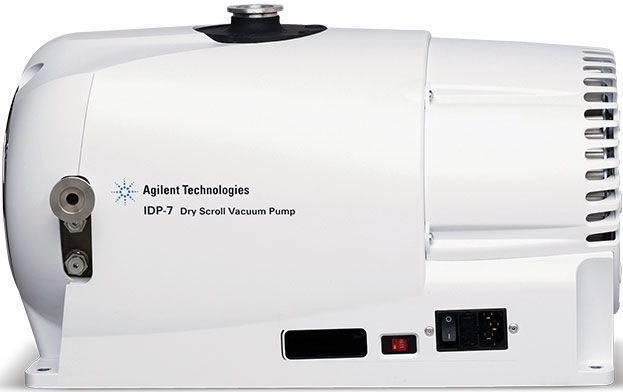

Agilent IDP-7 5.4 cfm Oil-Free Compact Dry Scroll Pump

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

20 Micron ultimate vacuum pressure, KF25 inlet, built-in hour meter, adjustable gas ballast, 120g/h water vapor handling capability, 110V/220V switchable. CE, CSA


The new Agilent IDP-7 dry scroll pump is a compact, high performance, oil-free vacuum pump, delivering large pumping speed capacity and simple maintenance.

Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.

IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.



Standard package


 Part description
 Agilent IDP7 5.4 cfm scroll pump (X3807-64000)
1 pc
 KF25 flexible stainless steel vacuum bellow (3.3 ft) 1 pc
 KF25 wing nut flange quick clamp 2 pcs
 KF25 flange centering ring 2 pcs
 Agilent North America 15A/125V power cord (656458203)
1 pc
 User’s manual
1 pc



Specification: Agilent IDP-7 5.4 cfm Oil-Free Compact Dry Scroll Pump

Power plug option

US 115V power plug,US 230V power plug

Pump accessory

No additional accessory (no extra charge),Tip seal kit for Agilent IDP7 or IDP10
