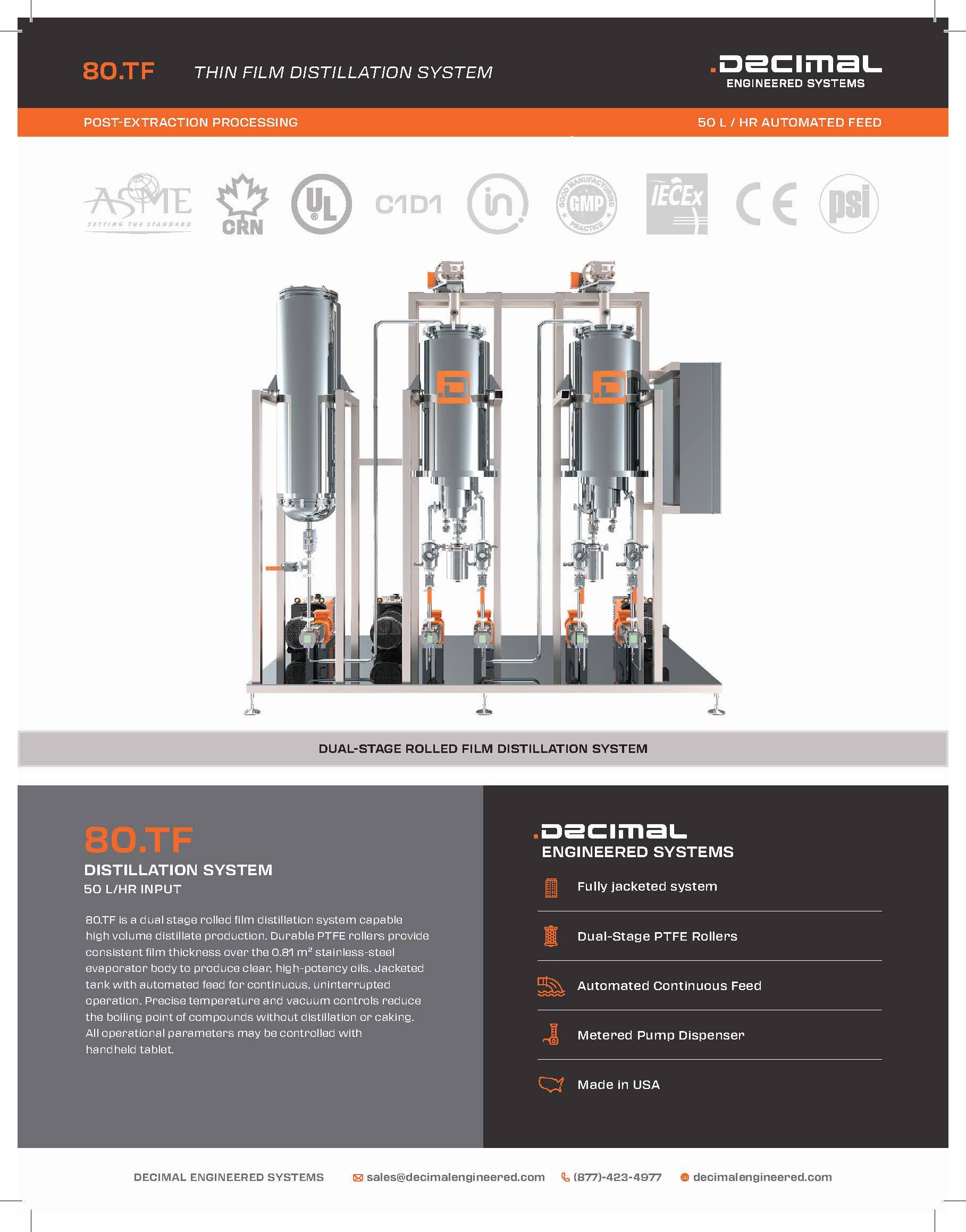

80.TF Thin Film Distillation System

80.TF DISTILLATION SYSTEM
50 L/HR INPUT

80.TF is a dual stage rolled film distillation system capable high volume distillate production. Durable PTFE rollers provide consistent film thickness over the 0.81 m2 stainless-steel evaporator body to produce clear, high-potency oils. Jacketed tank with automated feed for continuous, uninterrupted operation. Precise temperature and vacuum controls reduce the boiling point of compounds without distillation or caking. All operational parameters may be controlled with handheld tablet.

SYSTEM HIGHLIGHTS

• Reinforced PTFE rollers provide consistent film thickness for optimal distillation
• Evaporator surface area 0.81 m2
• Stainless steel body for efficient heat transfer
• 100 L jacketed feed pot with automated transfer
• Up to 50 L / hr. feed rate
• Jacketed gear pump with metered discharge for continuous operation
• Optional touchscreen control of all parameters with handheld tablet
• Temperature controlled feed lines eliminate need for heat guns or heating tape
• GMP ready and can be manufactured to an y standard of compliance
• Expert on-site training with distillation parameters included

EQUIPMENT SPECIFICATIONS

Dimensions: 114”L x 60”W x 118”H
Support Frame: 304 SS Frame
Feed System: 100 L Jacketed Feed Pot • Gear pump feed metering system • Hot oil transfer line
Evaporator: 316 SS • 0.81 sq. meter surface area • Up to 50 L / hr. feed rate
Sample Collection: First stage distillate output, Second stage distillate output, Residue output • Hot oil traced lines and gear pumps included
Warranty**: Lifetime stainless steel warranty. TCUs and vac pumps carry manufacturer’s warranty.

TECHNICAL SPECIFICATIONS

Circulators
• Hot oil circulator for feed and evaporator 48 kW, 0 – 250°C
• Hot oil traced transfer lines circulator 3 kW, 0 – 200°C
• Condenser circulator, 10 kW cooling / 5 kW heating 0 – 85°C
• Cold trap circulator, -80°C
Vacuum System
• Two rotary vane vacuum pumps108 m3 / hr.
• Turbomolecular pump 225 L / sec., with backing rotary vane pump 308 m3 / hr.
Control System
• UL 508 rated electrical control panel
• Automated touchscreen controls
Compliance – UL 508 GMP
