6mm ID Pressing Die Set w/ 2 Push Rods

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Highly polished hardened steel construction with pellet ejector, transparent protection shield and 2 push rods (Item# SDS6)

$299.00

SKU: 11 Category: Brand:

A set of 6mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 6mm diameter cylinder-shape pellets.


Specifications

  • Maximum Pressure:      4 tons
  • Rockwell Hardness:       Rc 62
  • Diameter (ID):              6 mm
  • Height:                        47 mm (assembled without sample)
  • Sleeve Height:              25 mm
  • Sleeve Diameter (OD):  25 mm
  • Tolerance:                   0.01-0.02 mm (10-20 micron)
  • Max sample fill height:  Not to exceed 1/3 of the sleeve height
  • Material:                      W18Cr4V hardened carbon tool steel

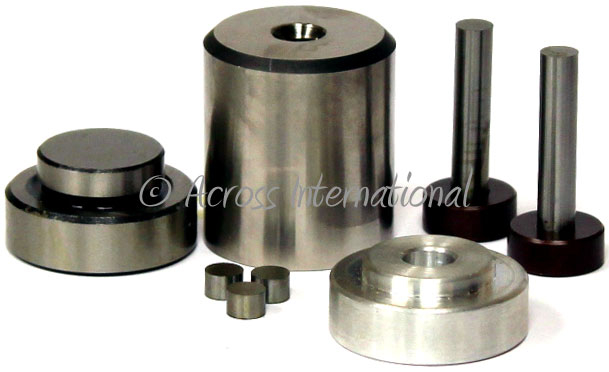

Die set includes

  • Three 6mm ID cylinder-shape core dies made of polished hardened steel
  • One steel sleeve
  • One steel support plate
  • Two push rods
  • One pellet ejector

Important

  • Always wear protection goggles during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 4 tons. Across International is not responsible for any damage caused by misuse.
