Sambo filter trolley 630mm (24.8 inches) BABF630

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

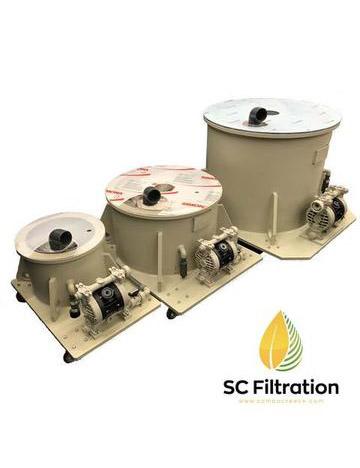

This is a complete filtering funnel similar in application to a laboratory Buchner Funnel, mounted on a trolley.  You can filter solids, waxes, carbon, clay, etc… with these filters.  Filter in minutes what you would normally do in hours.

Holds 1 gallons of crude per batch, 10 gallons of 10:1 Solvent:Crude, 0.5+ gallons of wax (@50% wax content).

This is a Polypropylene molded plastic filter trolley.  This machine is tough, durable and almost indestructible (it’s basically one solid piece of plastic).  We have one unit that is 10 years old and works like new.  PP is impervious to Nitric, Hydrochloric and similar acids so it will easily handle Ethanol, Isopropyl and any solvent you can throw at it.

This machine comes with an included diaphragm pump which does the job of sucking the filtrate through the filter, so NO VACUUM PUMP REQUIRED.  The pump can handle acids, bases and alcohols so no special care is needed for this pump.  NO COLD TRAP REQUIRED.  This is a pneumatic pump so there is no risk of sparks, this means you must have an air compressor to supply this machine with compressed air.

Filter paper is placed over a removable grate, a seal is then placed around the filter to prevent leaks.  There is 0% chance of leaks.  This takes a few minutes to install and even faster to take apart.  Add your tincture and begin filtering.

This machine completely dissembles so is easy to clean.

It comes mounted con casters, so it is easily movable.

OD Diameter: 630mm (24.8 inches)
ID Diameter: 600mm
Height Minimum: 550mm
Dimensions L W H: 850mm x ?mm x 580mm
Material: PP
Material Thickness: 15mm
Compressed Air Pressure: From 4 to 8 bar
Absolute Pressure Minimum: 0.2 bar
Compressed Air Pressure Consumption: From 150 to 420 l/min (14.8 CFM)
Recommended Compressor: 5HP 17.9 CFM at 100 PSI
Capacity: About 63 Gallons Total
Weight: 85 Lbs.
Made in Italy


  • FDA Food Grade Materials
  • Will not crack under extreme cold
  • Safe to use with almost all organic solvents, except Pentane.
  • Filter grate will not warp over time
  • High R Value (Insulating Materials)
  • Huge filtering capacity
  • No Vacuum Pump required
  • No Cold Trap required
  • Explosion Proof.  No source of sparks. No explosion risk.
  • Easy to clean and disassemble
  • Cheap filter paper
  • Leak proof filter paper installation with reusable gasket
  • Filter out carbon, clay, wax, etc…
  • Properly balanced, won’t flip over
  • Easy to move, mounted on casters

These are custom made units with delivery times of approximately 60 days.

Box dimensions 95x80x100cm, Gross Weight 65Kg

Specification: Sambo filter trolley 630mm (24.8 inches) BABF630

Weight 150 lbs
