300L ASME Single Jacket Solvent Tank 350psi Max – Bare

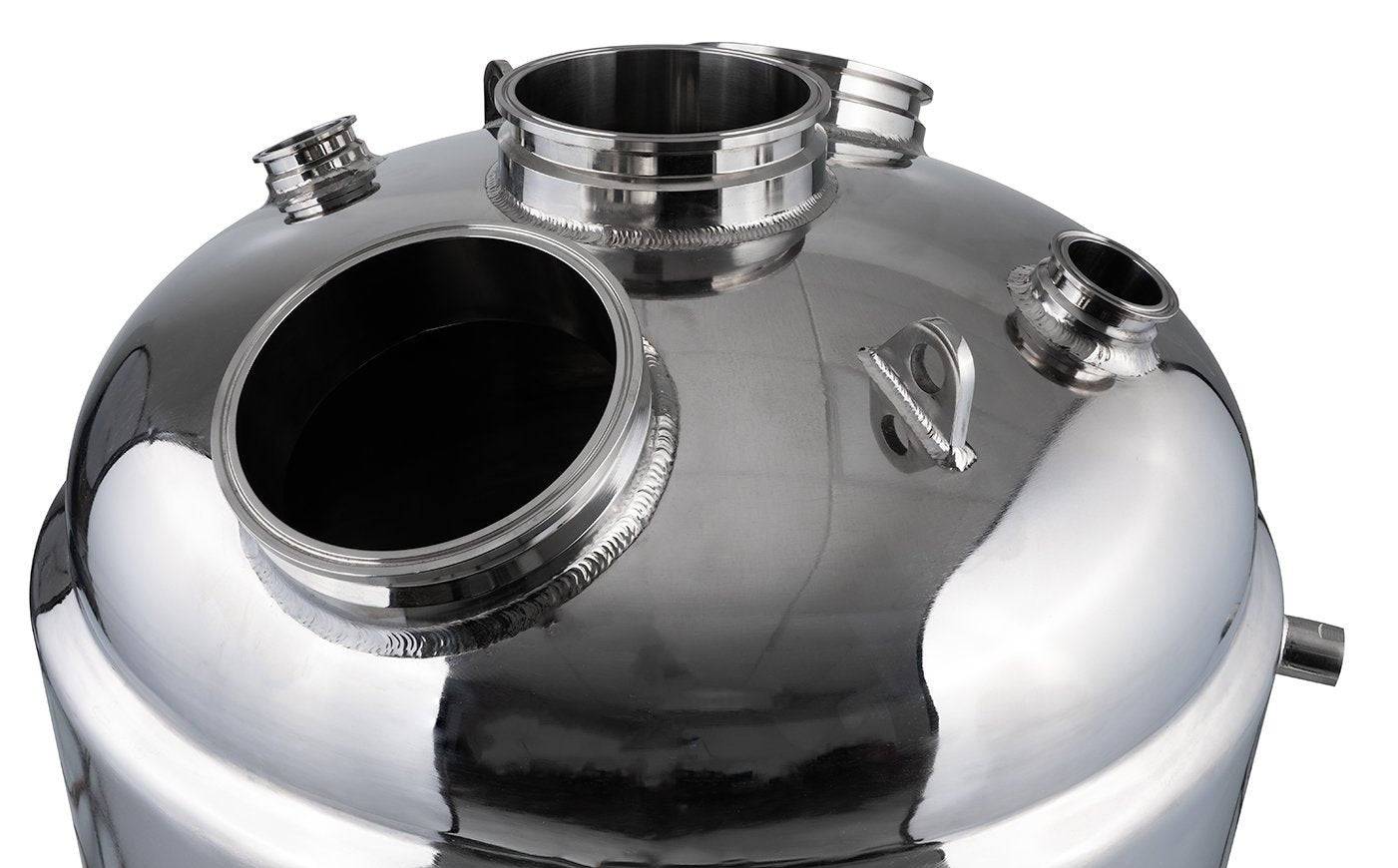

This is a custom manufactured made ASME Certified 300L Jacketed Solvent Tank with ASME Stamp and made out of 304 Stainless Steel. This base is designed to be configured to any application and can even be used as a solvent tank. This tank comes bare with no fittings and will hold 300LBS of liquid butane and is able to have fluid circulated around the outer jacket to increase recovery speeds in the extraction system. This unit also has welded lift points on the top of the tank.

**This Item will ship Via FREIGHT ONLY.

Specifications
Material 304 Stainless Steel
Certification: ASME
MAWP @ 100°C / 212°F:
Inside 350 PSI  / 2.42 MPa
Jacket 150 PSI / 1.1 MPa
MDMT -40°C / -40°F
MIN TEMP -20°F at 350PSI
Butane Capacity 300LBS
Connection Sizes: (3) 6″ Tri-Clamp
(2) 2″ Tri-Clamp
(2) 1/2″ FNPT
Weight 750LBS
Outer Dimensions: 64″ Tall
32″ W x 32″ L
