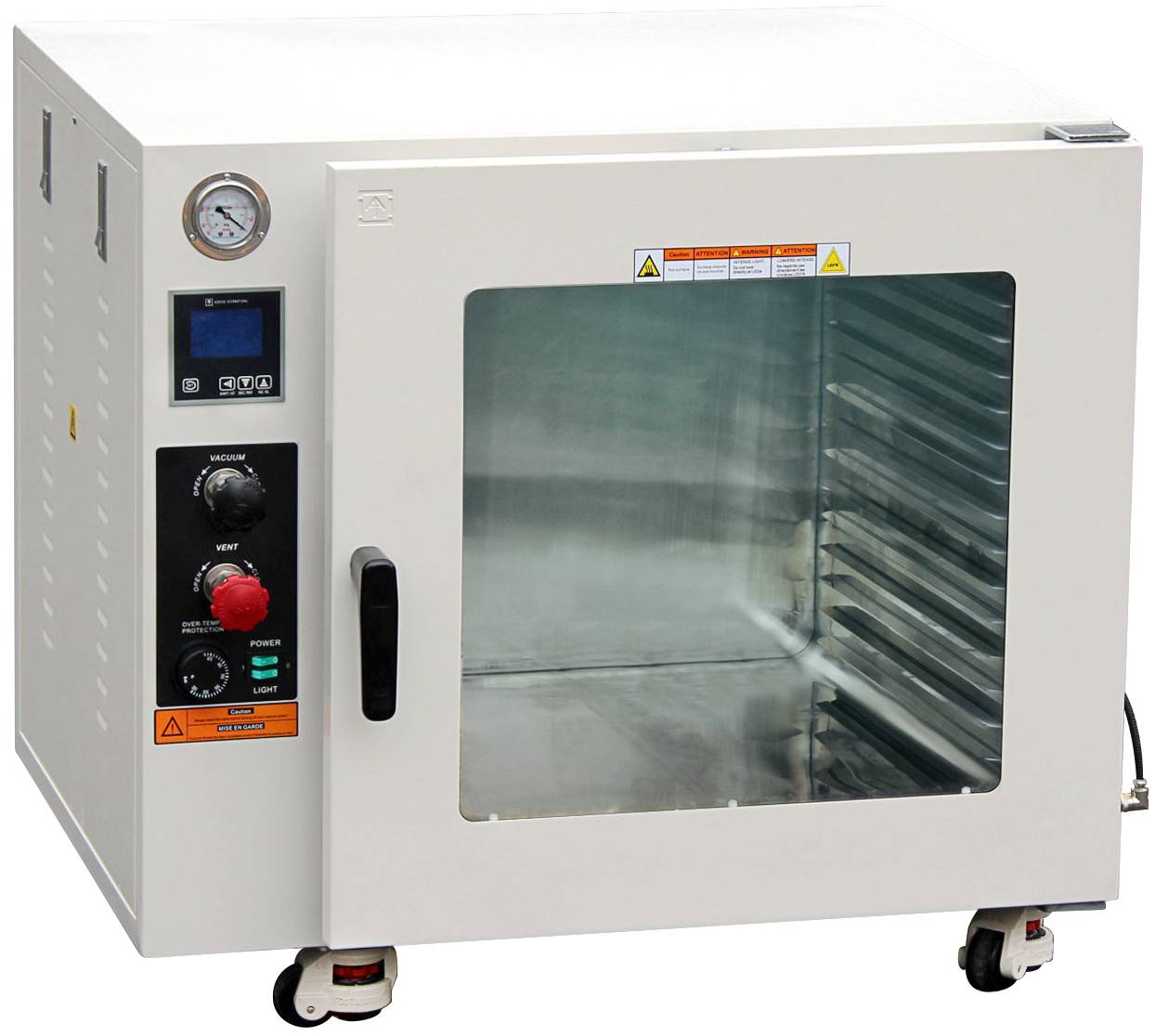

250C UL 14 Shelf Max 5 Cu Ft 5 Sided Heating Vacuum Oven

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Powerful 3000W heaters. Includes KF25 inlet filter that keeps your oven clean at all time

$5,590.00

SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Oven comes standard with 7 shelves.

Introducing the Ai 14-shelf capacity 5 sided wall-heating 5.0 cu ft vacuum ovens, come standard with secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, andtwo year warranty.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Features

  • ETL certified to UL and CSA standards
  • New KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
  • All stainless steel internal tubing provides higher ultimate vacuum, holds vacuum 10 times longer, and require minimum maintenance.
  • Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
  • All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.
  • 4th gen low proportional gain temperature controllers keep your oven temperature within +/- 1°F accuracy, in either °F or °C.
  • Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
  • Dual layer observation window with 3/4″ tempered safety glass.
  • 3″ thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
  • Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
  • A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
  • Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
  • Built-in swivel casters with leveling feet.
  • For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
  • All ovens shipped from our New Jersey or Nevada location for quick delivery.
  • 2-year warranty and lifetime US-based parts and service support.
  • Guaranteed US based phone and email assistance within 30 minutes from our engineers.

Manufactured in accordance with

  • UL 61010-1
  • CSA C22.2
  • ISO 9001:2000
  • ISO 12100-1:2003, ISO 12100-2:2003
  • EN1050:1996, EN294:1992, EN60204-1:2006
  • CE

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.



Vacuum oven specifications



 Electric
 110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts
 Chamber
 Size: 19.75 x 21.5 x 19.75″
Material: Stainless steel
Capacity: 5.0 cubic feet
 Heater  5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3)
 Temperature control  Controller: low proportional gain, microcomputer PID controlled with LCD display
Range: ambient to 250° (or 480°F)
Display units: Fahrenheit or Celsius
Uniformity: +/- 7% of setpoint
Dwelling timer range: 1 to 9999 minutes
Warm-up time to 100°F: 45 minutes
 Warm-up time to 480°F: 2 hours 15 minutes
 Vacuum
 Ultimate vacuum level: better than 500 microns/millitorrs
(
may vary based on your altitude)
Mechanical gauge range: 0 to 30 inch mercury
Vacuum port: KF25 flange
Vent port: KF25 flange
Vacuum pump: Sold separately
 Weight  Unit: 410 Lbs, shipping: 630 Lbs
 Dimensions (WxDxH)  Unit: 32.25 x 28 x 30
 Shipping: 38 x 37 x 38″
 Shelves
 Shelf size: 19.25 x 21 x 0.5″ (WxDxH)
Material: aluminum
Style: pan-shape
Capacity: 14 shelves max.
Comes standard with oven purchase: 7 shelves
Total area with 14 shelves: 39.3 sq ft or 5660 sq inch
Distance between the most adjacent shelves: 1.25″
 Door gasket material  Silicone or Viton
 Observation window  1/2″ tempered safety glass
 Safety
 Built-in circuit breaker
Overheat shutoff protection
Secondary over-temp protection dial

 In-door lights  White LED (pre-installed)
 Compliance  ETL certified to UL and CSA standards
 Warranty  2 years
Standard Packages
Standard package

 Part description  Quantity
Part image
 Ai 5 cu ft 5 sided heating vacuum oven 1 pc
 Aluminum pan shelf 7 pcs
 KF25 quick clamp and centering ring 2 sets
 Inlet filter with KF25 connection 1 pc
 L5-30P 110V plug (installed on 110V units) 1 pc
 6-20P 230V plug (installed on 220V units) 1 pc
 Users manual 1 pc

Specification: 250C UL 14 Shelf Max 5 Cu Ft 5 Sided Heating Vacuum Oven

Power option

110V 60Hz (no extra charge),220V 50/60Hz (no extra charge)

Shelf option

No additional shelf (no extra charge),7 additional aluminum pan shelves

Door sealing gasket

Silicone gasket (no extra charge),Food grade solvent-resistant Viton gasket
