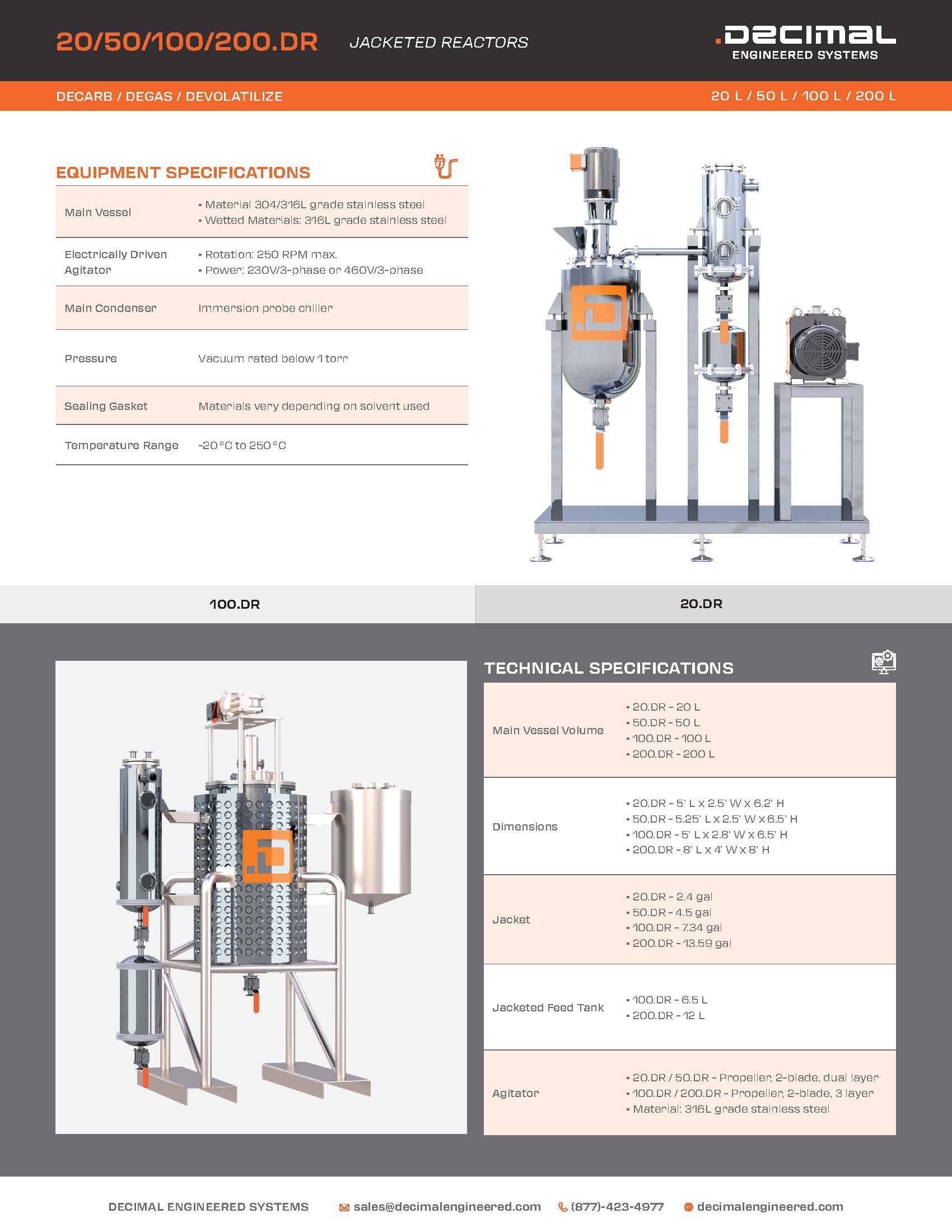

Decimal reactors are multi-purpose ASME stainless-steel jacketed vessels that can be used for decarboxylation and degassing of crude oil, as well as removal of residual solvents and terpenes. An explosion-proof agitating motor ensures safe operation with volatile solvents. A touchscreen C1D1 tablet allows precise control of temperature, vacuum and automated discharge. Optional explosion-proof vacuum pump assists with recovery of ethanol and terpenes with a cold trap to keep condensed vapors out of the pump. Designed for GMP compliance with Clean-In-Place (CIP) protocols. Vessel sizes 20 L, 50 L, 100 L, or 200 L.
EQUIPMENT SPECIFICATIONS
Main Vessel • Material 304/316L grade stainless steel • Wetted Materials: 316L grade stainless steel
Sealing Gasket • Materials very depending on solvent used
Temperature Range • -20 ° C to 250 ° C
TECHNICAL SPECIFICATIONS
Main Vessel Volume
• 20.DR – 20 L
• 50.DR – 50 L
• 100.DR – 100 L
• 200.DR – 200 L Dimensions
• 20.DR – 5’ L x 2.5’ W x 6.2’ H
• 50.DR – 5.25’ L x 2.5’ W x 6.5’ H
• 100.DR – 5’ L x 2.8’ W x 6.5’ H
• 200.DR – 8’ L x 4’ W x 8’ H Jacket
• 20.DR – 2.4 gal
• 50.DR – 4.5 gal
• 100.DR – 7.34 gal
• 200.DR – 13.59 gal Jacketed Feed Tank
• 100.DR – 6.5 L
• 200.DR – 12 L Agitator
• 20.DR / 50.DR – Propeller, 2-blade, dual layer
• 100.DR / 200.DR – Propeller, 2-blade, 3 layer
• Material: 316L grade stainless steel
