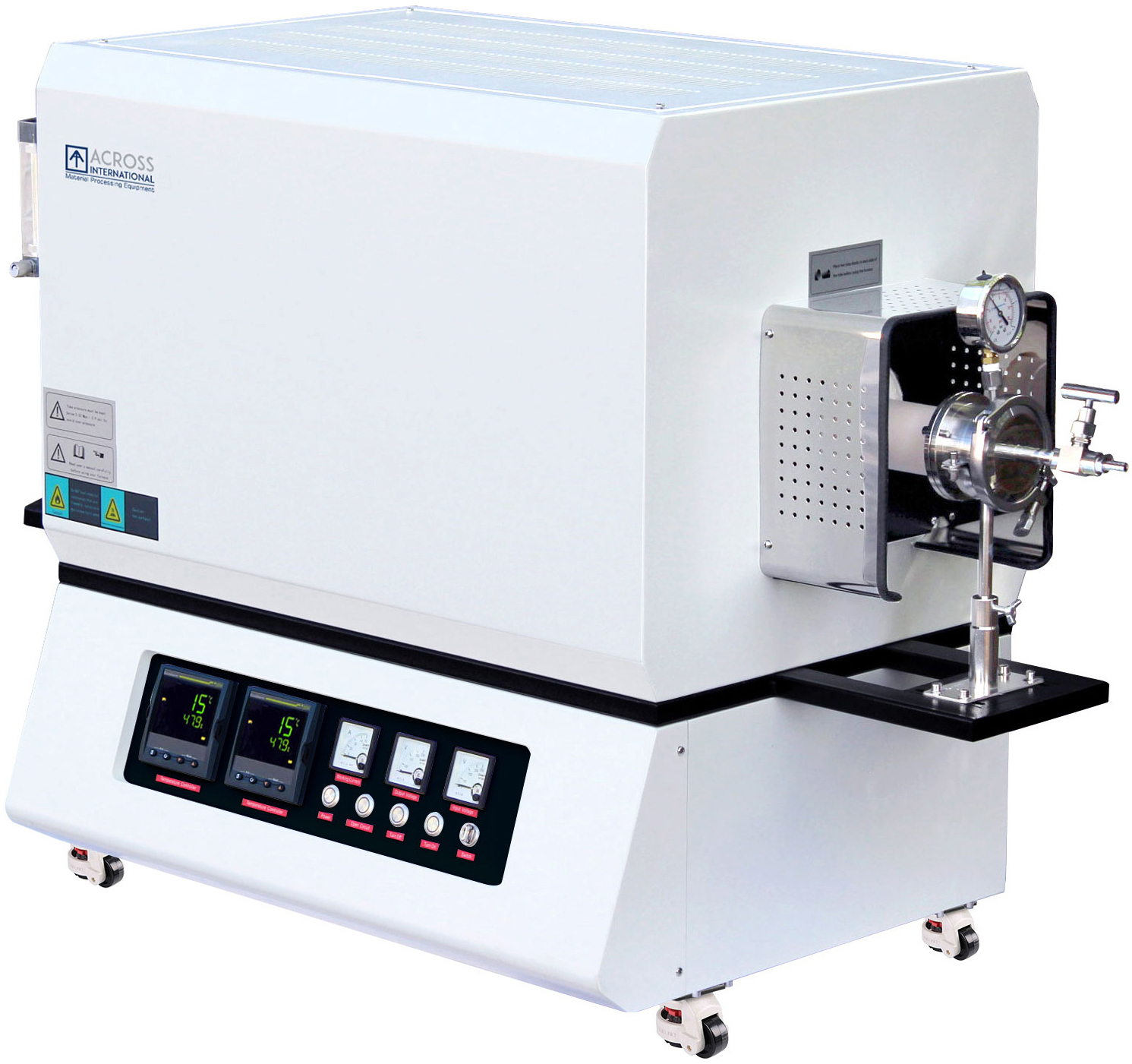

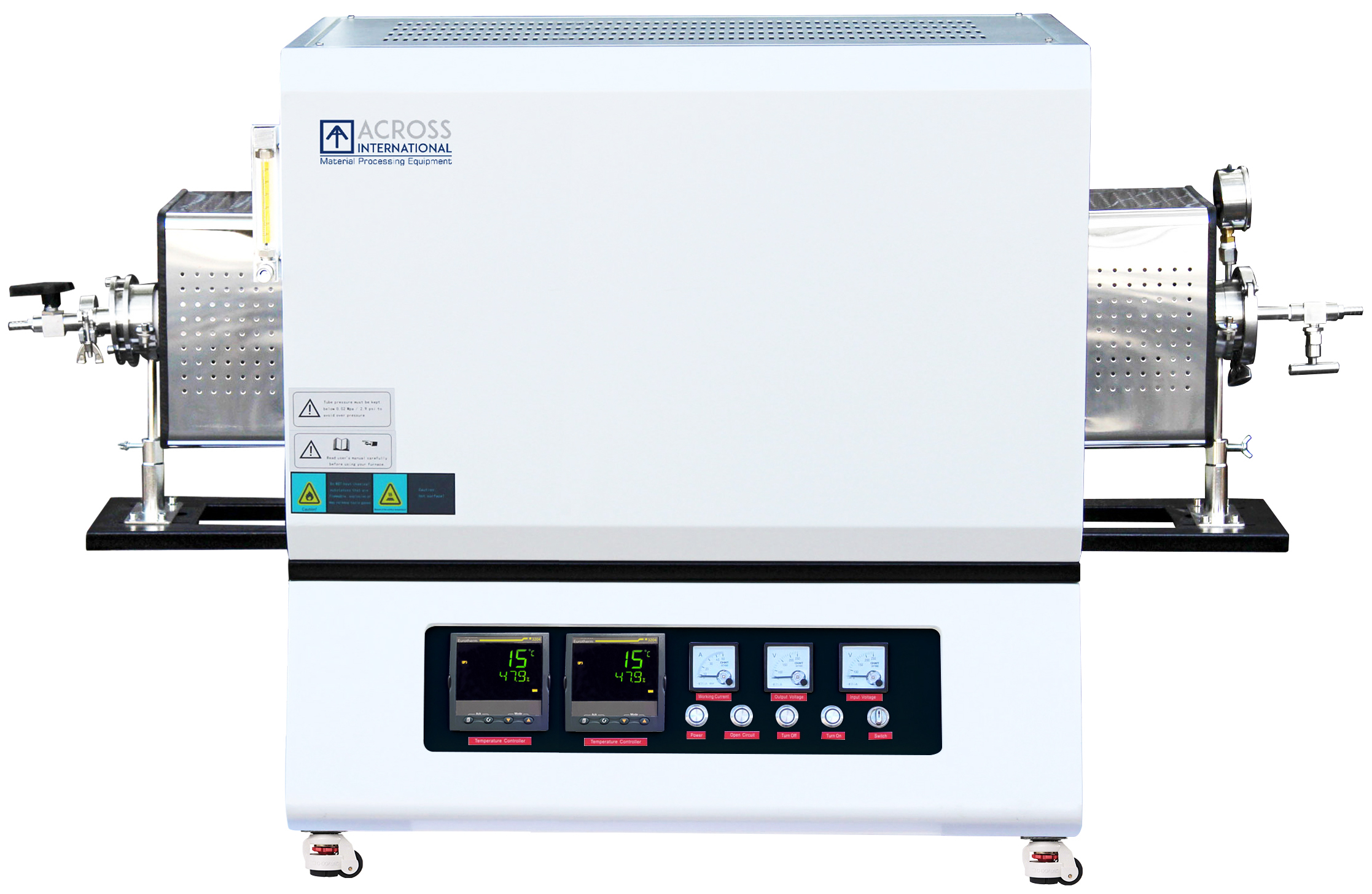

1700C 2-Zone Tube Furnace with Vacuum Flanges & Alumina Tube

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Mitsubishi refractory lining, Shimaden 40-seg PID controller, overheat/power failure protection, PC interface, vacuum flanges, alumina tube incl. ETL available.

$12,990.00$30,139.00

Clear
SKU: 703 Category:







Ai TFM2 series 1700°C 2-zone tube furnaces use SiC and MoSi2 as their heating elements. Furnace hearth is built with Mitsubishi (Japan) high quality fiber materials. Temperature of this furnace is controlled by high precision temperature controller (Shimaden fp93 from Japan) with +/-1 °C accuracy and 40 programmable segments. Furnace housing is built with double-layer steel and two cooling fans inside keep the furnace body temperature low. Furnace tube is sealed by stainless steel vacuum sealing flanges, it can be used under vacuum and other gases condition. This tube furnace is an ideal tool for sintering all types of materials/chemical. Great for labs or college scientific research use.

These furnaces have built-in interface to a computer. We provide connection cable, adaptor and software that can be used to control the temperature and parameters of the furnace, all from your PC! You can also save a temperature curve for record or study purposes.

All our furnaces are CE certified.

Safety features

  • Furnace overheat protection cuts off power when temperature is over the desired range.
  • Thermocouple protection cuts off power when the thermocouple is broken or malfunctioned.
  • Temperature variation protection cuts off power when the difference between actual temperature and target temperature is off the desired range. (refer to controller’s manual)
  • Power failure protection resume furnace operation right after the point of failure when power is back up.
  • Stainless steel flange support makes sure the tube and flanges are secure and in their absolute position, it also longer the life of the tube

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

General specifications

 Electrical requirements  208-240V, single phase, 50/60 Hz
 Tube material   High purity (99%) Al2O3 alumina ceramic
 Min. working temperature  300°C
 Max. working temperature   1700°C
 Max. constant working temperature   1600°C
 Heating zone length
 Zone1: 8 inches   Zone2: 8 inches
 Constant heating zone length
 Zone1: 5 inches   Zone2: 5 inches
 Rated vacuum pressure
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar
 Rated positive pressure  0.02 MPa / 150 torr / 3 psi
 Refractory lining
 Mitsubishi (Japan) high quality 1800 grade fiber alumina
 Heating element type
 MoSi2
 Thermocouple type
 B
 Temperature controller
 Shimaden fp93 (Japan) with 4 patterns and
 40 segments (i.e. 4 x 10 segments or 2 x 20 segments)

 Max heating rate
 10°C/min
 Recommended heating rate  5°C/min
 Temperature controller precision
 +/- 1°C
 Vacuum sealing flange kit
 Stainless steel vacuum sealing flanges with one vacuum gauge,
 two valves and four thermal ceramic blocks.
 Compliance
 ETL tested to UL and CSA standards (optional), CE
 Download  Product brochure


Size comparison

 Tube size  60mmOD x 1200mm L  80mmOD x 1200mm L  100mmOD x 1200mm L
 Output  10kW
 10kW  12kW
 Furnace dimensions (LxWxH)  25″ x 19″ x 27″  25″ x 19″ x 27″  28″ x 20″ x 30″
 Shipping dimensions (LxWxH)  47″ x 35″ x 39″  47″ x 35″ x 39″  50″ x 38″ x 42″
 Net weight (Lb)  265  280  350
 Shipping weight (Lb)  400  420  450


How to Program Across International Furnaces



How to Install an Across International Tube Sealing Flange









Standard Package

Part description

Quantity

 Part image

 TFM2 1700°C dual-zone tube furnace
 1 pc


 Stainless steel vacuum sealing flange set w/ pressure meter
 1 set


 Alumina ceramic tube
 1 pc

 Flow meter
 1 pc


 Spare heating element
2 pcs


 Stainless steel furnace hook
 1 pc


 Alumina ceramic thermal block
 2 pairs


 Thermal gloves  1 pair

 Spare fuse 2 pcs

 USB/RS485 computer interface kit  1 set

 Furnace operation manual  1 pc


 Shimaden fp93 temperature controller manual & software   1 pc
