1500C 1-3 Zone Rotary & Tilting Top-Open Tube Furnace
Mitsubishi refractory lining, Shimaden 40-seg PID controller, overheat/power failure protection, PC interface, vacuum flanges, alumina tube incl.
$11,990.00 – $40,758.94
Â
.jpg)
Â
RTF1500Â series rotary and tilting top-open tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.
Furnace operation is controlled by Eurotherm multi-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.
Features
- Top-open furnace chamber for fast and easy tube access.

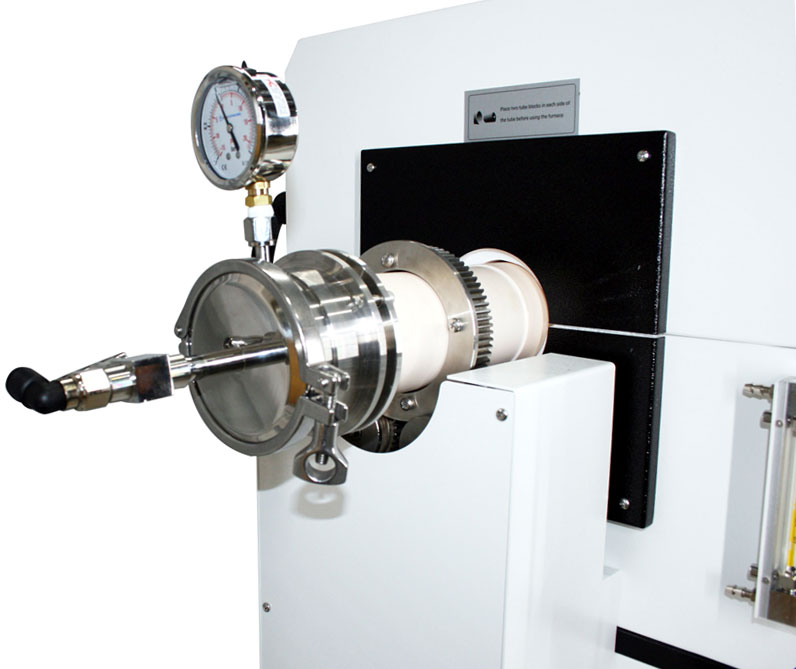

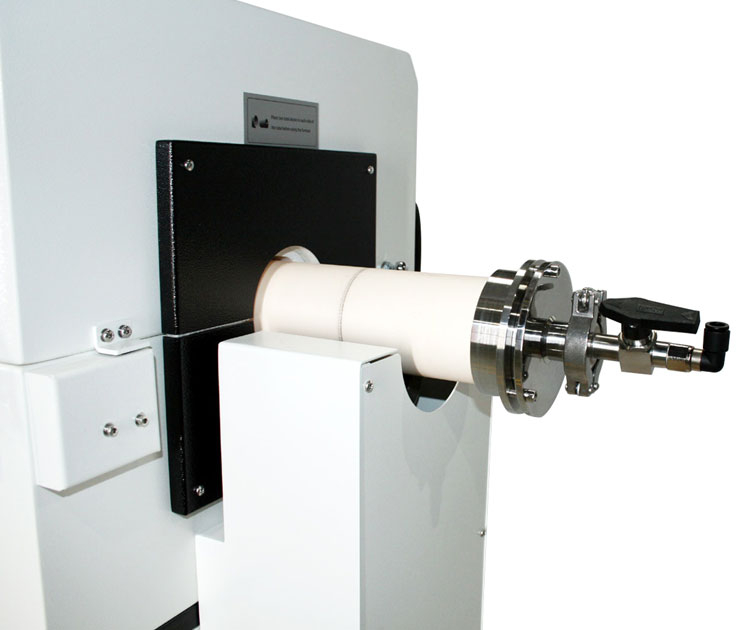

- Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
- Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Built-in computer interface.
- Long life type S thermocouple.
Safety
- Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
- Limit switch turns off furnace once top is open.
Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
Â
General Specifications
| Â Electrical requirements | Â 208-240 volts 50/60Hz single phase |
| Â Rotation speed & Inclination |
 1 to 25 rpm, 0 to 30° |
|  Tube material |  High purity (99%) Al2O3 alumina |
|  Maximum / constant working temperature |  1500°C / 1400°C  * 2 hours maximum continuous run time at maximum temperature |
| Â Rated vacuum pressure |
 0.001 Pa / 0.0075 millitorr / 0.00001 mbar |
| Â Rated positive pressure | Â 0.02 MPa / 150 torr / 3 psi |
| Â Refractory lining |
 Mitsubishi (Japan) high quality 1600 grade fiber alumina |
| Â Heating element and thermocouple |
 Silicon carbide (SiC) / S-type |
| Â Temperature controller |
 Eurotherm multi-segment digital controller, ±1°C step |
| Â Max heating rate |
 5°C (41°F)/min above 1200°C and 10°C (50°F)/min below 1200°C (2192°F)   |
| Â Heating zone length |
 15″ |
| Â Vacuum sealing flange kit |
 Stainless steel vacuum sealing flanges with one    vacuum gauge, two valves and four thermal ceramic blocks.  |
 Model Comparison
| Â Zone | Â 1-Zone | Â 1-Zone | Â 2-Zone | Â 2-Zone | Â 3-Zone | Â 3-Zone |
| Â Tube size (OD x L) |
 60mmx1.2m |
 80mmx1.2m |
 60mmx1.2m |  80mmx1.2m |  60mmx1.4m |  80mmx1.4m |
| Â Heating zone | Â 15.4″ | Â 15.4″ | Â 7.5+7.5″ | Â 7.5+7.5″ | Â 7.5+7.5+7.5″ | Â 7.5+7.5+7.5″ |
| Â Maximum output | Â 6 kW | Â 6 kW | Â 6 kW | Â 6 kW | Â 9 kW | Â 9 kW |
| Â Eurotherm controller | Â 1 pc | Â 1 pc | Â 2 pcs | Â 2 pcs | Â 3 pcs | Â 3 pcs |
| Â Furnace dimensions (LxWxH) | Â 23x15x41″ | Â 26x17x43″ | Â 23x15x41″ | Â 26x17x43″ | Â 27x19x45″ | Â 30x21x47″ |
| Â Shipping dimensions (LxWxH) | Â 37x21x46″ | Â 37x21x46″ | Â 37x21x46″ | Â 37x21x46″ | Â 41x25x51″ | Â 41x25x51″ |
| Â Shipping weight (Lb) | Â 485 | Â 550 | Â 485 | Â 550 | Â 530 | Â 630 |
Â
Â
Â
Â
Â
.jpg)
Â

Â
Â
Â
Â
How to Install an Across International Tube Sealing Flange
Â
Standard Package
|
Part description    |
   Quantity  |
Part image |
| Â RTF1500 rotary & tilting tube furnace |
 1 pc |
|
|  Stainless steel vacuum sealing flange set with  pressure meter and flow meter |
 1 set |
|
| Â Alumina tube 1000mm length |
1 pc |
|
| Â Spare heating element |
2 pcs |
|
| Â Stainless steel hook |
 1 pc |
|
| Â Tube thermal block |
4 pcs |
|
| Â Alumina crucible | 5 pcs | .jpg) |
| Â Thermal gloves | Â 1 pair |
|
| Â Spare fuse | 2 pcs |
|
| Â USB/RS485 computer interface kit | Â 1 set |
|
| Â Furnace and Shimaden controller manual | 2 pcs |
|
