1.9 CuFt Vacuum Oven – 12 Shelf
Original price was: $1,800.00.$1,700.00Current price is: $1,700.00.
The DZF Vacuum Oven is extremely easy to use, and is ready to go right out of the box. Very easy to put together and start using. Includes all necessary parts for a full system.
Features

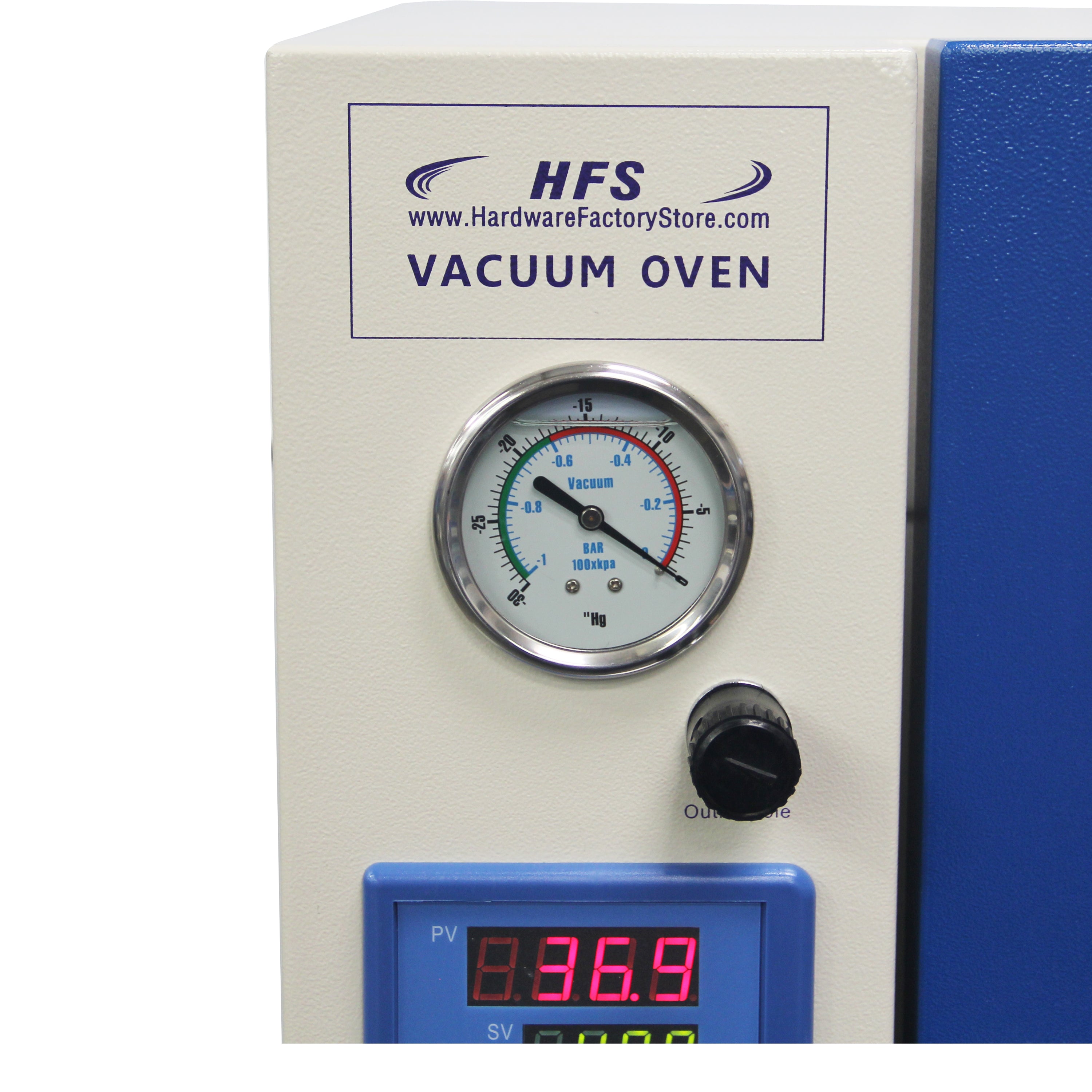

- 0-30″ Hg gauge for quick vacuum level observation
- 1/2″ safety glass viewing window
- Integrated LED Lighting

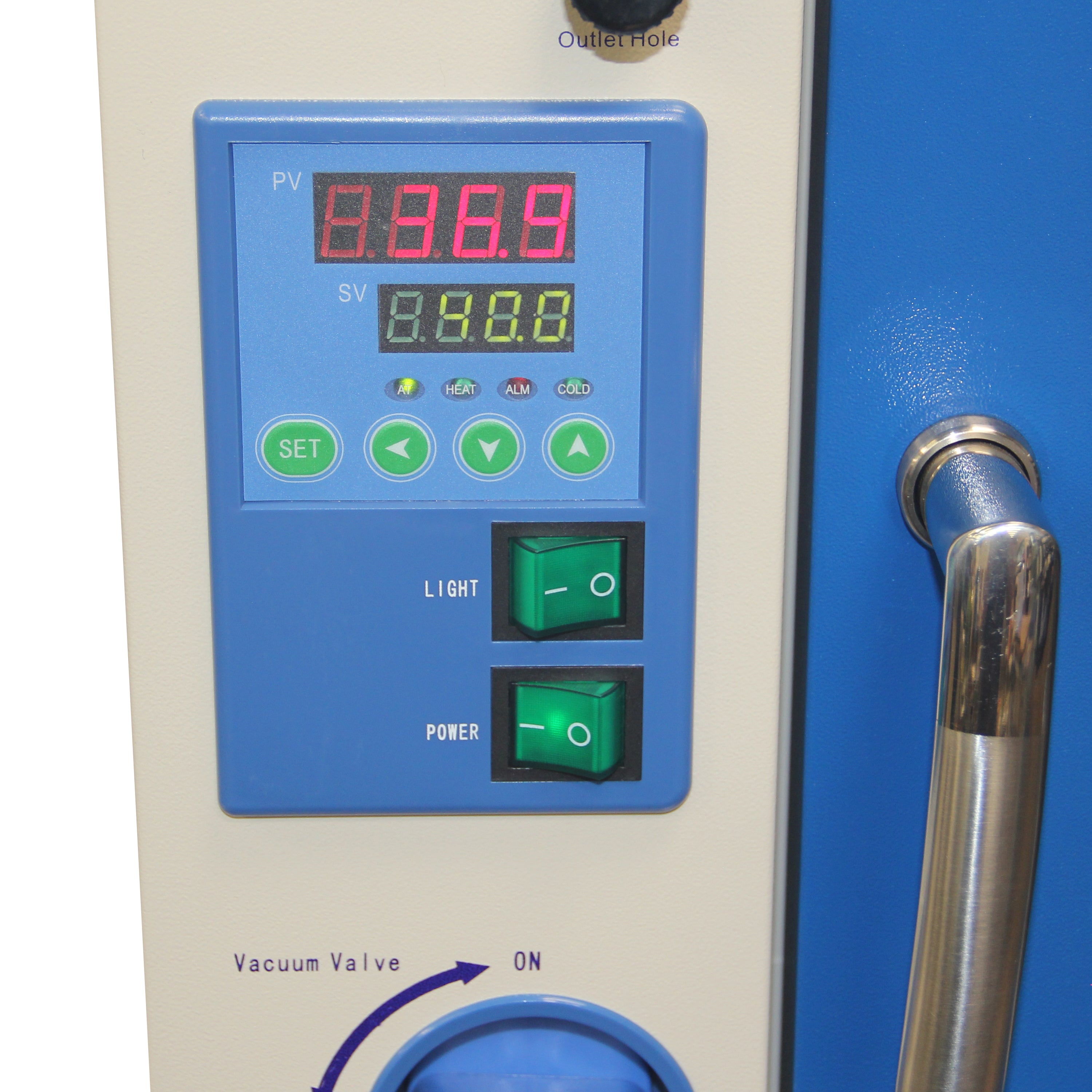

- Digital temperature and timer control with +- 1°F degree accuracy
- Stainless Steel inner chamber
- 4-Sided Heating – Left, Right, Bottom, Top
- Standard KF-25 fitting for easy connectivity

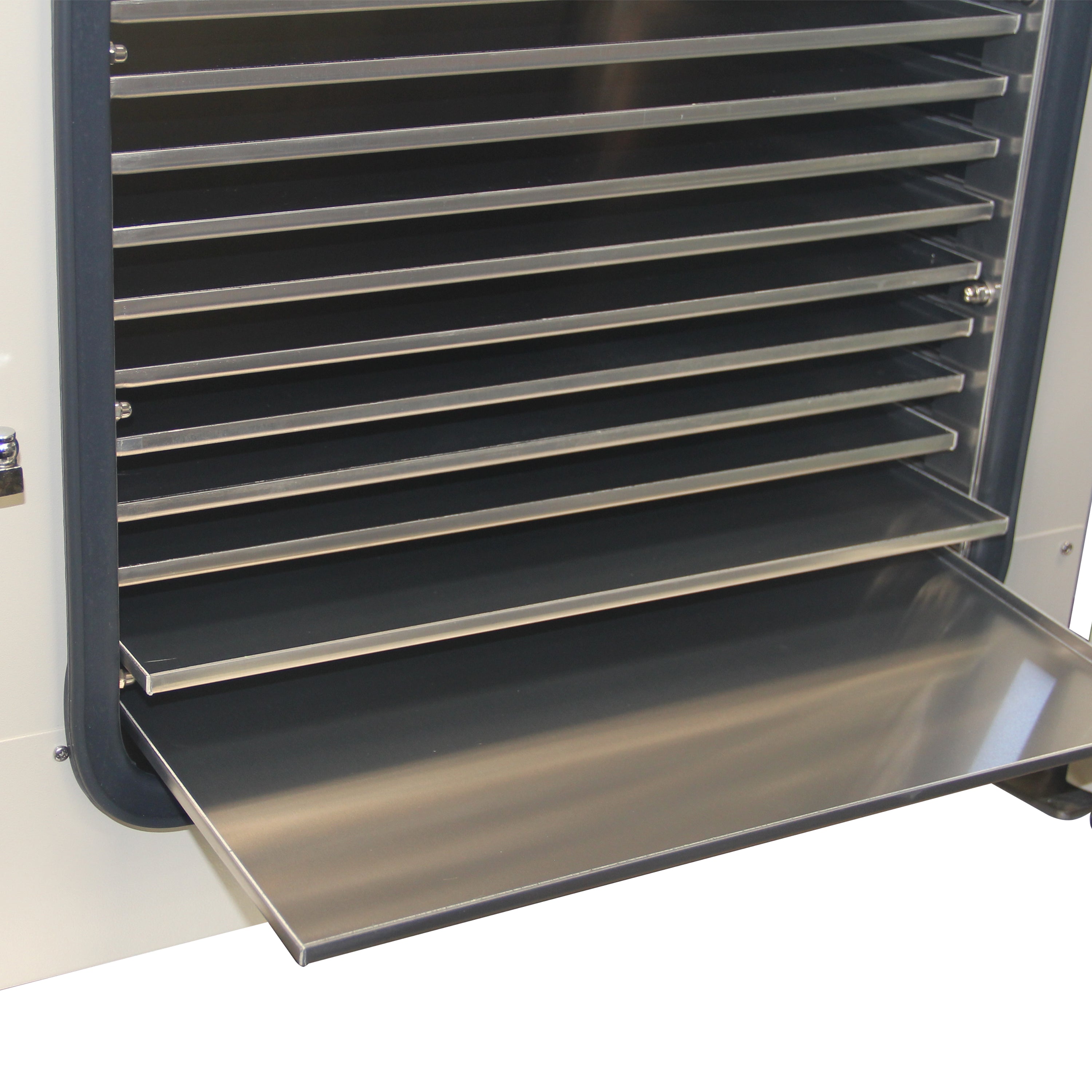

- 12Â solid aluminum shelves included
- KF25 clamp, centering ring, and adapters to 3/8″ and 1/2″ tube included
- Easy-to-use operation
- No assembly required
- 30 day Money-Back Guarantee
- 1-Year Warranty
Included Items
- DZF-6050 Oven
- Owner’s Manual
- KF-25 Clamp, Centering Ring, 3/8″ Tube Connector, 1/2″ Tube Connector
- 12Â Solid Aluminum Shelves
Options
Standards in Manufacturing
- CE Certified
- ENISO12100-1:2003, ENISO12100-2:2003, EN1050:1996
- EN294:1992, EN418:1992, EN60204-1:2006
Specifications
Chamber Dimensions (WxDxH) |
16″ x 14.5″ x 14″ |
Chamber Material |
Stainless Steel |
Door Gasket Material |
Silicone |
Timer Range |
1-9999 minutes |
Heater Power |
1200 watts |
Max Vacuum |
30″ Hg (133 Pa) |
Power Supply |
110V 50/60Hz 1-PH 13.6A |
Power Cord |
Standard US 3-Prong |
Safety Designs |
Circuit Breaker, Overheat Warning |
Shelves |
12 Solid Shelves Included |
Shipping Dimensions (WxDxH) |
33″ x 27″ x 28″ |
Shipping Weight |
220 Lbs |
Temperature Range |
Room Temperature to 215°F |
Temperature Accuracy |
+/- 1°F |
Temperature Units |
Fahrenheit |
Unit dimensions (WxDxH) |
28″ x 22″ x 22″ |
Weight |
170 Lbs |
Vacuum Fitting |
KF-25 |
Shipping
Due to the weight of the 1.9 ovens they must be shipped with a freight company. Be sure to provide a working contact phone number for delivery. It may take more than one business day for the freight company to pick this oven up, which is beyond our control.
Set-up and Use
Downlaod our quick set-up guide by clicking here.
