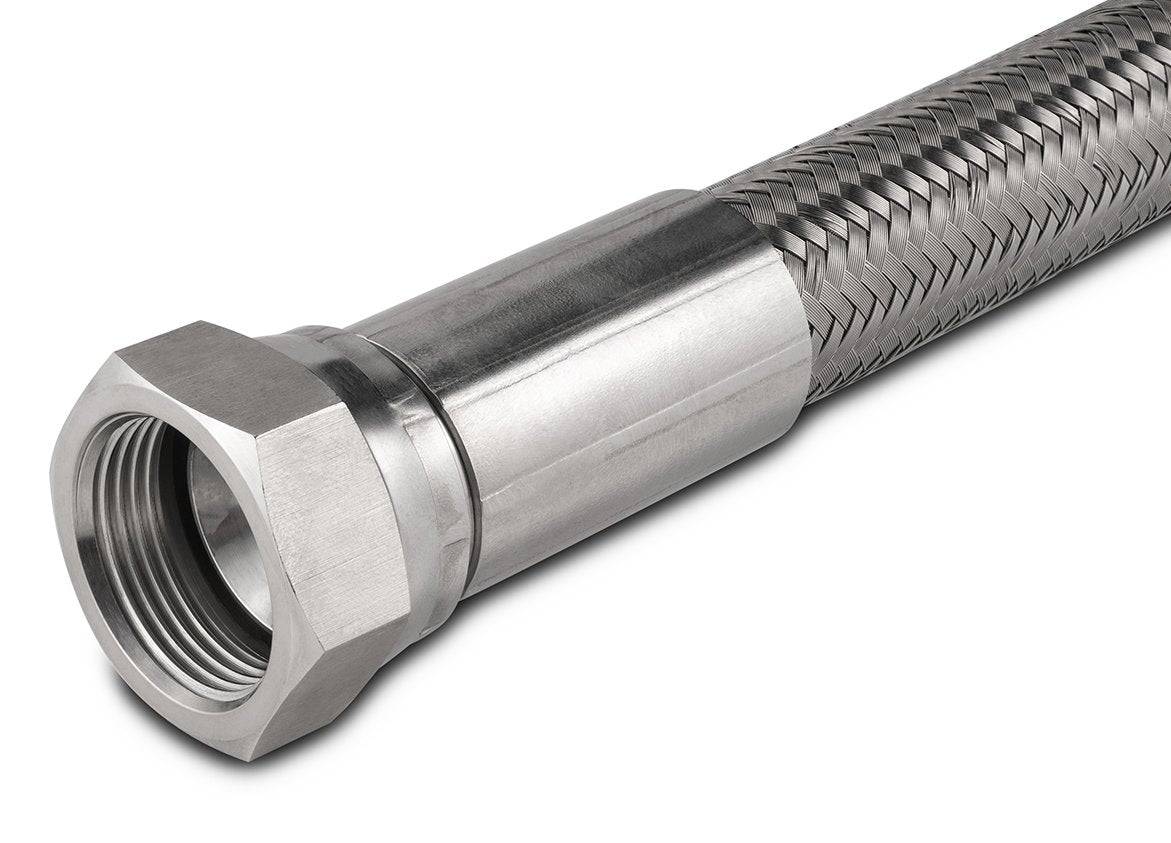

1″ 37 Degree x 48″ Length JIC Braided Stainless Steel Hose
1″ 37 Degree JIC Braided Stainless Steel Hose
These chemically resistant PTFE braided hoses are a necessity when dealing with harsh chemicals or solvents and high-pressure applications. They provide a uniquely rugged, durable, and chemically resistant combination of Stainless Steel and PTFE by having an inner core of PTFE and protecting that with a braided stainless steel outer sleeve. These hoses have female JIC swivel on each end and they DO NOT require Teflon tape to create a seal and they should always be tightened and untightened using 2 wrenches.
***Note: Do not exceed the specified hose bend radius or the inner PTFE liner will kink and the hose integrity will become compromised and should not be used.
|Connection Type(s):||1″ 37° Female JIC Swivel (1 5/16“-12)|
|Liner Material||PTFE (Teflon)|
|Braid Material||304 Stainless Steel|
|Swivel Material||304 Stainless Steel|
|Temperature Rating||-65° to 450°F|
|Pressure Rating||1000 PSI|
|Max Bend Radius||9″|
